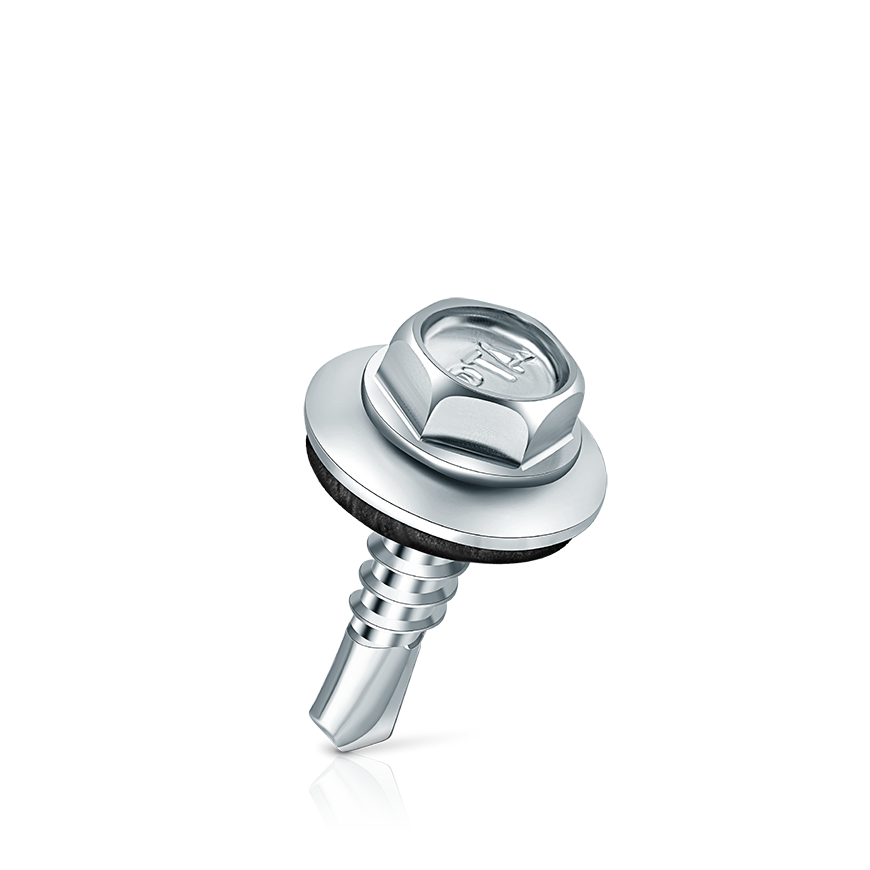

Hex Washer Head - Light Duty

Hex Washer Head - Light Duty

HEX

Product Features

Fast Material Engagement



HWH screws have a built in washer to help distribute load to a wider area. This light duty screw provides fast material engagement.

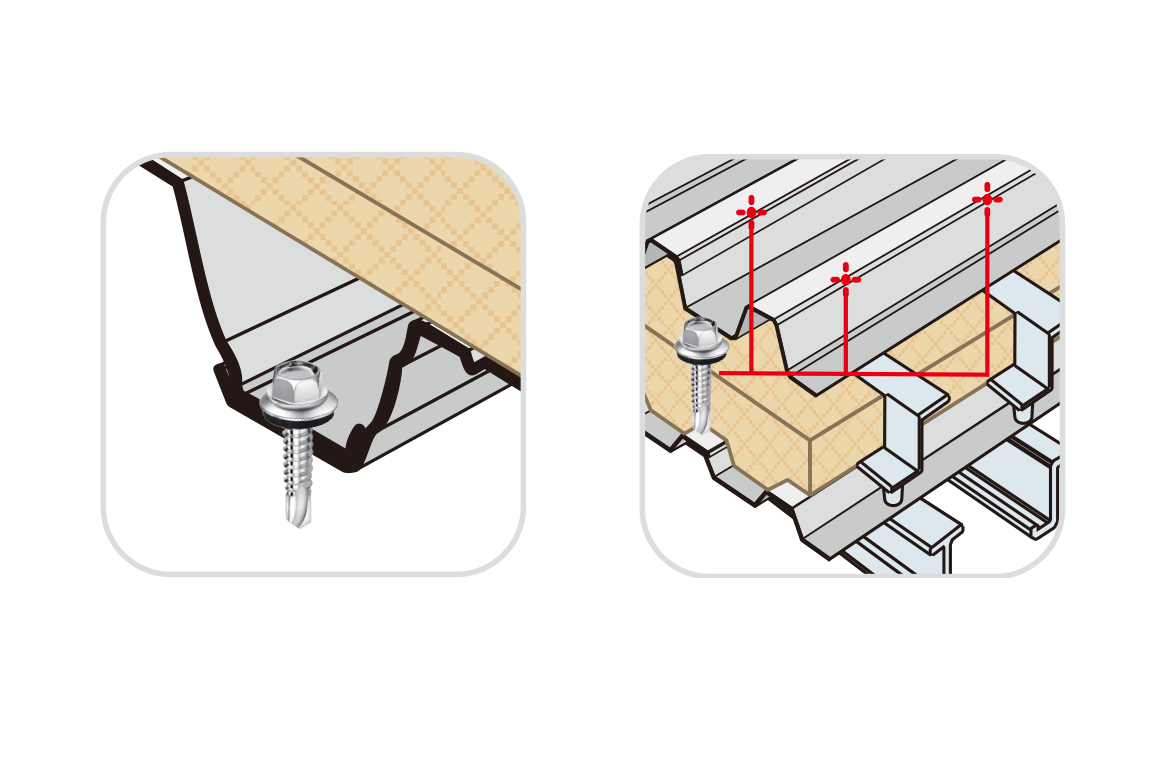

Applications

  • For light duty purposes
  • Stitch roof deck and wall panel sidelaps
  • Residential Steel frame construction
  • Brick ties to steel framing



Video
Hex Washer Head - Light Duty
00m 32s
Technical Specification

Hex Washer Head - Light Duty










Measurements (mm)

Dia (d) Length (L) Drill Point Drill Capacity
3.5 10 #2 0.5 - 1.0

3.5

13 #2

0.5 - 1.0

3.5

16 #2

0.5 - 1.0

4.2 13 #2 1.0 - 2.0

4.2

16 #2

1.0 - 2.0

4.2

19 #2

1.0 - 2.0

4.2

25 #2

1.0 - 2.0

4.2

32 #2

1.0 - 2.0

4.2

38 #2

1.0 - 2.0

4.8

13 #2

1.0 - 2.0

4.8

16 #2

1.0 - 2.0

4.8 19 #2

1.0 - 2.0

4.8

25 #3

1.0 - 3.0

4.8

32 #3

1.0 - 3.0

4.8

38 #3

1.0 - 3.0

4.8

50 #3

1.0 - 3.0
