The wafer head, with its larger and flatter circular design, provides a wider load-bearing surface and ensures a more even distribution of the load. This helps reduce the risk of surface damage during fastening. When combined with self-tapping threads and a sharp drill point, it saves installation time and effort.
Application & Usage

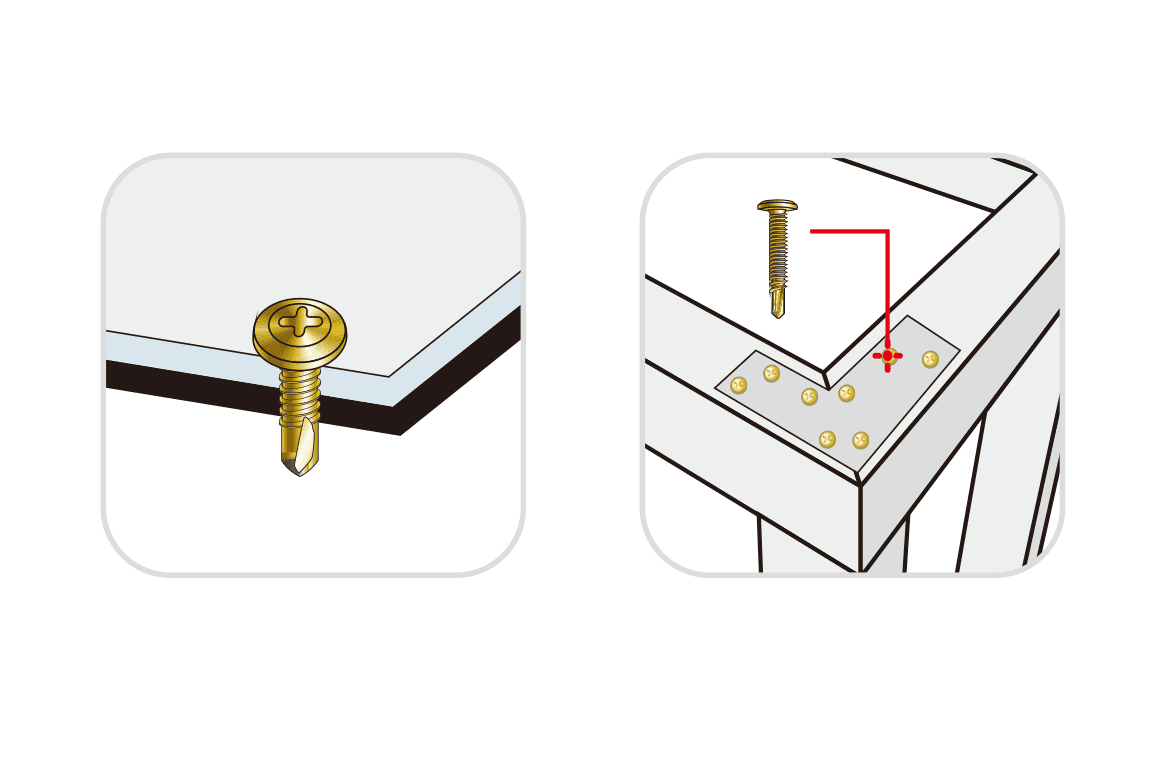

Designed for light-duty applications, especially suitable for fastening metal to metal.
- Equipped with a corrosion-resistant coating, suitable for outdoor and harsh environments
- Used to connect metal panels, brackets, and fittings to metal structures
- Widely used in various applications, such as professional construction and residential steel frame structures
Recommended such selection for roof and skin panel fixing related works.
Wafer Phillips
Self-Drilling Screws
Uploaded 07/07/2023
|
PATTA Marketing
The wafer head, with its larger and flatter circular design, provides a wider load-bearing surface and ensures a more even distribution of the load. This helps reduce the risk of surface damage during fastening. When combined with self-tapping threads and a sharp drill point, it saves installation time and effort.
Technical Specifications
Available Sizes
| Diameter (D) | Length (L) | Drill Point | Drill Capacity |
|---|---|---|---|
| M4.8 | 16 | #2 | 1.0 - 2.0 |
| 22 | #2 | 1.0 - 2.0 | |
| 32 | #3 | 1.0 - 3.0 | |
| 38 | #3 | 1.0 - 3.0 | |
| M4.8 | 16 | #2 | 1.0 - 2.0 |
| 22 | #2 | 1.0 - 2.0 | |
| 32 | #3 | 1.0 - 3.0 | |
| 38 | #3 | 1.0 - 3.0 |
| Diameter (D) | Length (L) | Drill Point | Drill Capacity |
|---|---|---|---|
| #10 - 16 | 5/8 | #2 | 0.039 - 0.079 |
| 7/8 | #2 | 0.039 - 0.079 | |
| 1 - 1/4 | #3 | 0.039 - 0.118 | |
| 1 - 1/2 | #3 | 0.039 - 0.118 | |
| #10 - 24 | 5/8 | #2 | 0.039 - 0.079 |
| 7/8 | #2 | 0.039 - 0.079 | |
| 1 - 1/4 | #3 | 0.039 - 0.118 | |
| 1 - 1/2 | #3 | 0.039 - 0.118 |
