Pan Head

Phillips
Non-walking point
Fast material engagement

Product Features

For High Torque Installations

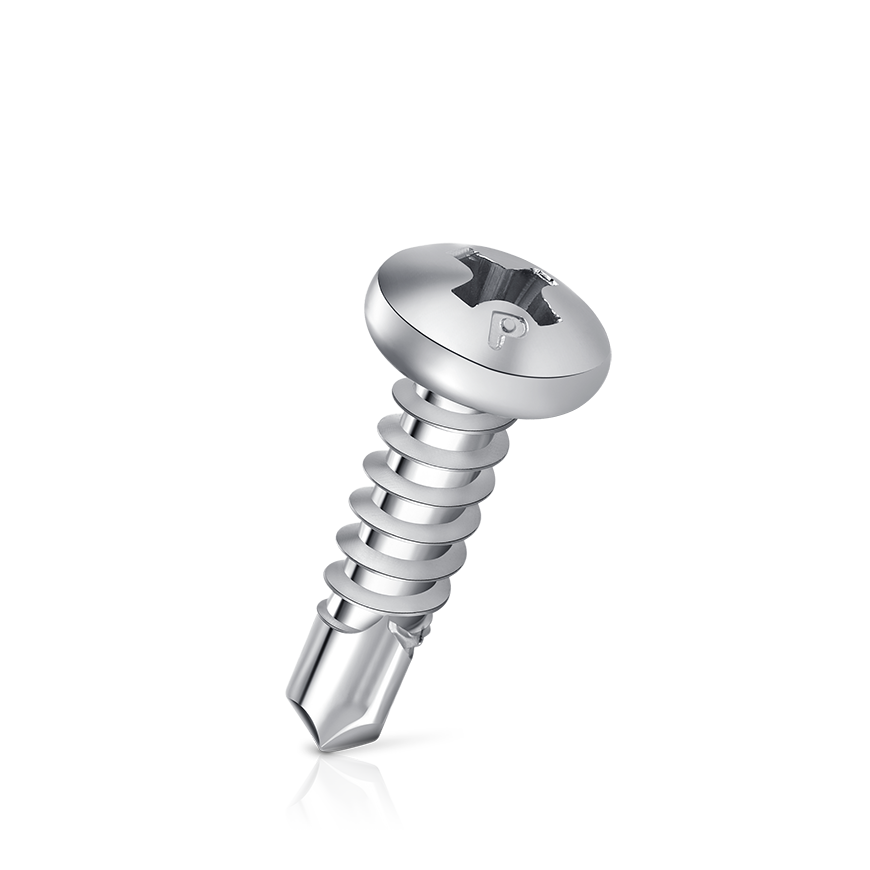

Pan head self-drilling screws feature a lower profile than oval or round screws, a flat or slightly rounded top and sharp vertical edges. They are suitable for high-torque installations into wood or metal.

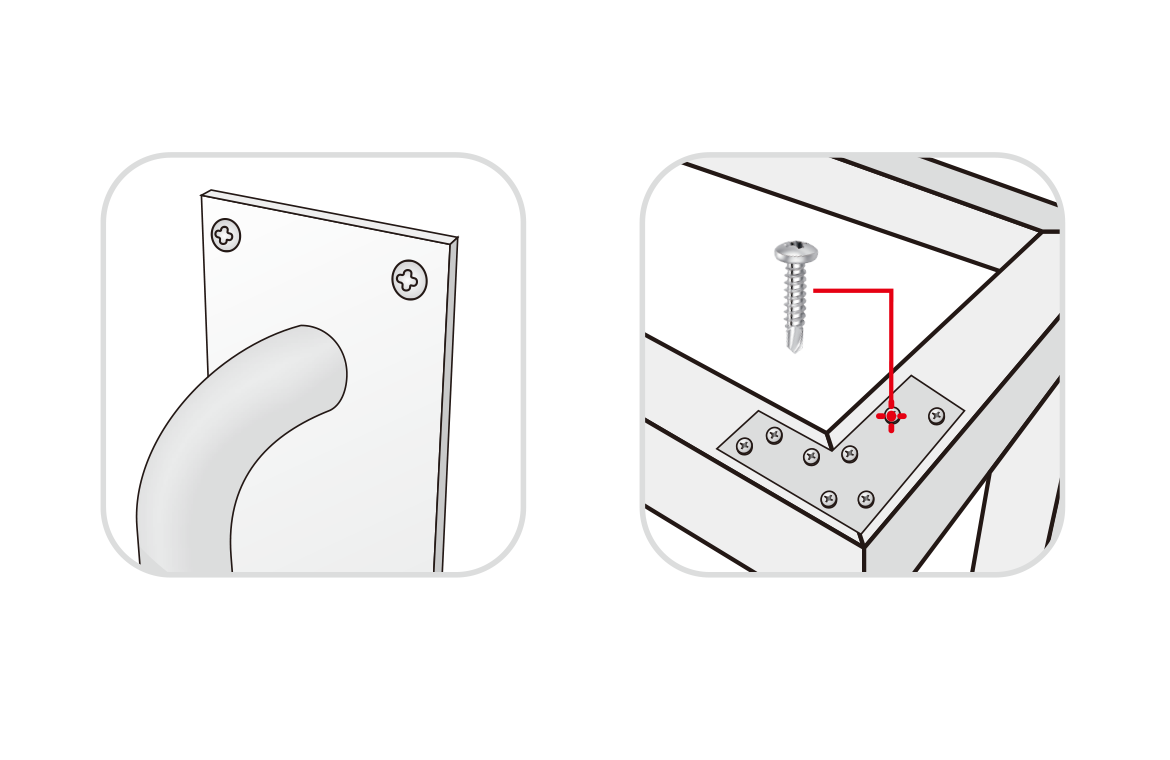

Application

Skin sheet to steel
Residential steel frame construction
Stitching 1 thick and 1 thin steel plate
For light duty purposes

Video

Pan Head

00m 24s

Technical Specification

Pan Head

Measurements (mm)

Dia (d)	Length (L)	Drill Point	Drill Capacity
3.5	10	#2	0.5 - 1.0
3.5	13	#2	0.5 - 1.0
3.5	16	#2	0.5 - 1.0
4.2	13	#2	1.0 - 2.0
4.2	16	#2	1.0 - 2.0
4.2	19	#2	1.0 - 2.0
4.2	25	#2	1.0 - 2.0
4.2	32	#2	1.0 - 2.0
4.2	38	#2	1.0 - 2.0
4.8	13	#2	1.0 - 2.0
4.8	16	#2	1.0 - 2.0
4.8	19	#2	1.0 - 2.0
4.8	25	#3	1.0 - 3.0
4.8	32	#3	1.0 - 3.0
4.8	38	#3	1.0 - 3.0
4.8	50	#3	1.0 - 3.0
