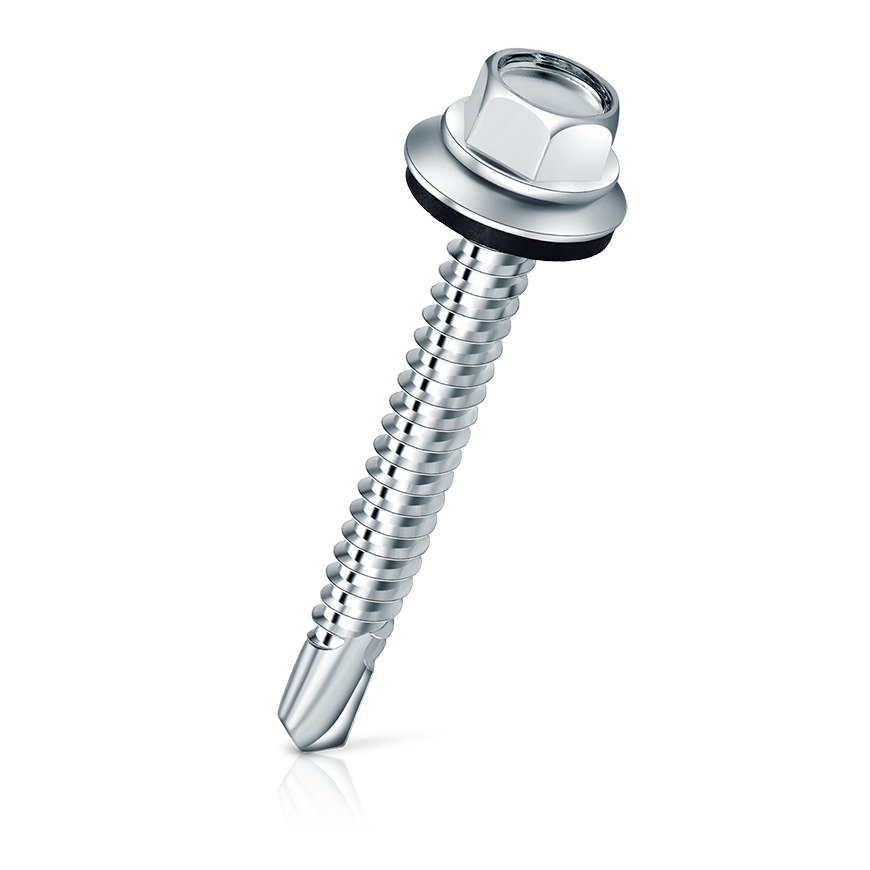

Hex Washer Head - Medium Duty

Hex Washer Head - Medium Duty

Product Features

Better Drill Performance



HWH screws have a built in washer to help distribute load to a wider area. This medium duty screw provides better drill performance.

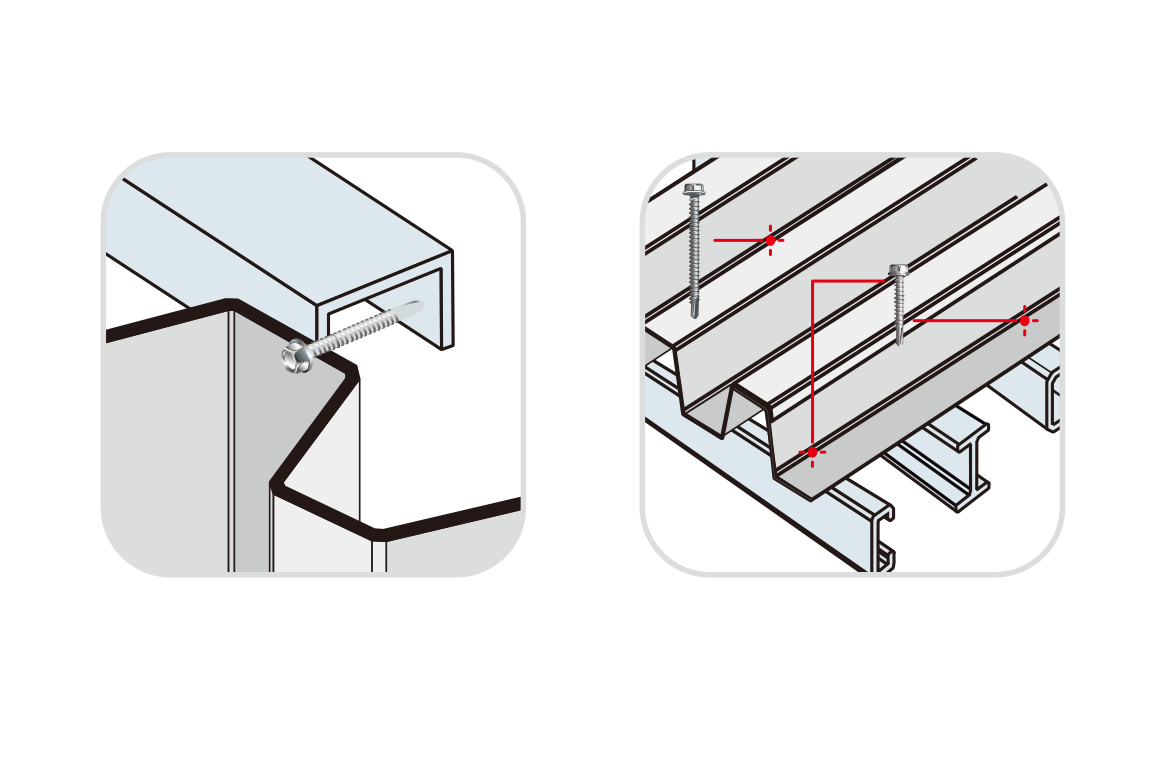

Application
  • For medium duty purposes
  • Roof deck to steel framing
  • Accessories to steel framing



Video
Hex Washer Head - Medium
00m 34s
Technical Specification

Hex Washer Head - Medium Duty










Measurements (mm)

Dia (d) Length (L) Drill Point Drill Capacity
5.5 19 #3 2.0 - 4.0
5.5 25 #3 2.0 - 4.0
5.5 32 #3 2.0 - 4.0
5.5 38 #3 2.0 - 4.0
5.5 50 #3 2.0 - 4.0
5.5 63 #3 2.0 - 4.0
5.5 75 #3 2.0 - 4.0
6.3 19 #3 2.0 - 4.0
6.3 25 #3 2.0 - 4.0
6.3 32 #3 2.0 - 4.0
6.3 38 #3 2.0 - 4.0
6.3 50 #3 2.0 - 4.0
6.3 63 #3 2.0 - 4.0
6.3 75 #3 2.0 - 4.0
6.3 100 #3 2.0 - 4.0
6.3 125 #3 2.0 - 4.0
