Countersunk Head

Countersunk Head

Features

Application

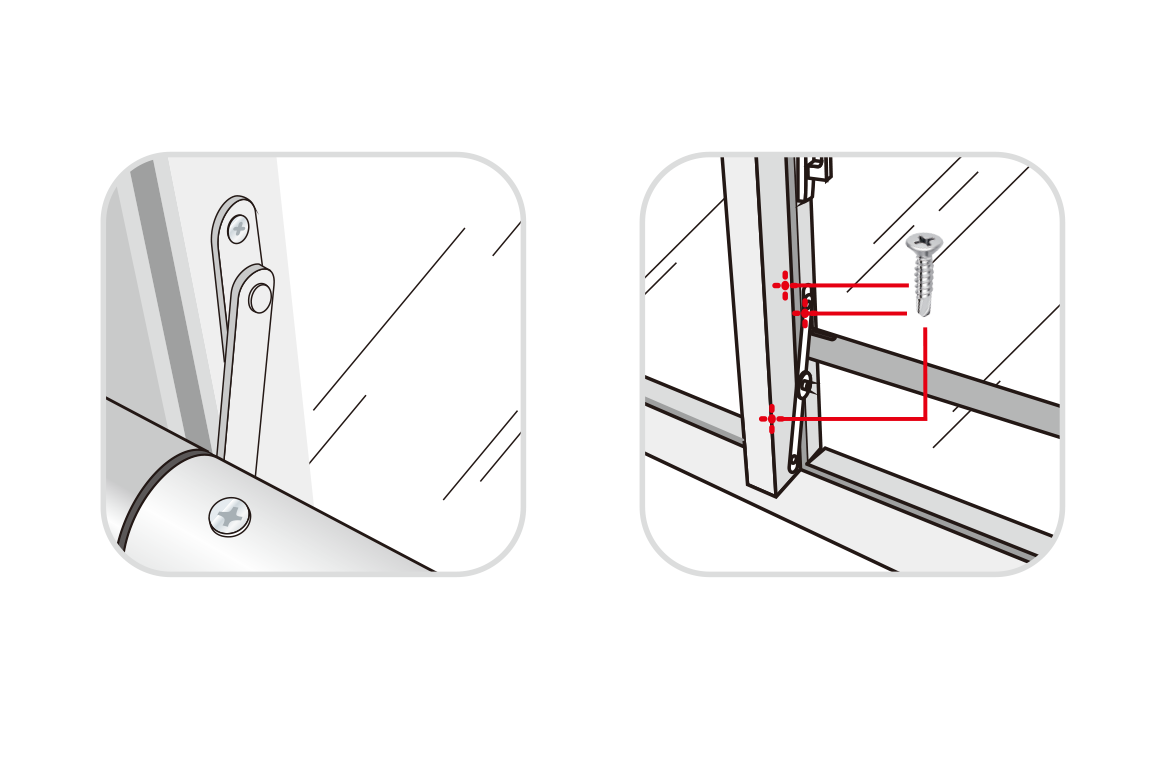

  • Fastening for window and door frames
  • For use on flat surfaces
  • Requires pre-drilled hole



Video
Countersunk Head
00m 52s
Technical Specification

Countersunk Head

Measurements (mm)

Dia (d) Length (L) Drill Point Drill Capacity
3.5 10 #2 0.5 - 1.0

3.5

13 #2

0.5 - 1.0

3.5

16 #2

0.5 - 1.0

3.5

19 #2

0.5 - 1.0

3.5

25 #2

0.5 - 1.0

4.2 13 #2 1.0 - 2.0

4.2

16 #2

1.0 - 2.0

4.2

19 #2

1.0 - 2.0

4.2

25 #2

1.0 - 2.0

4.8

13 #2

1.0 - 2.0

4.8

16 #2

1.0 - 2.0

4.8 19 #2

1.0 - 2.0

4.8

25 #2

1.0 - 2.0

4.8

32 #2

1.0 - 2.0

4.8

38 #2

1.0 - 2.0
