Sealed Blind Rivet
SE
Waterproof and airtight

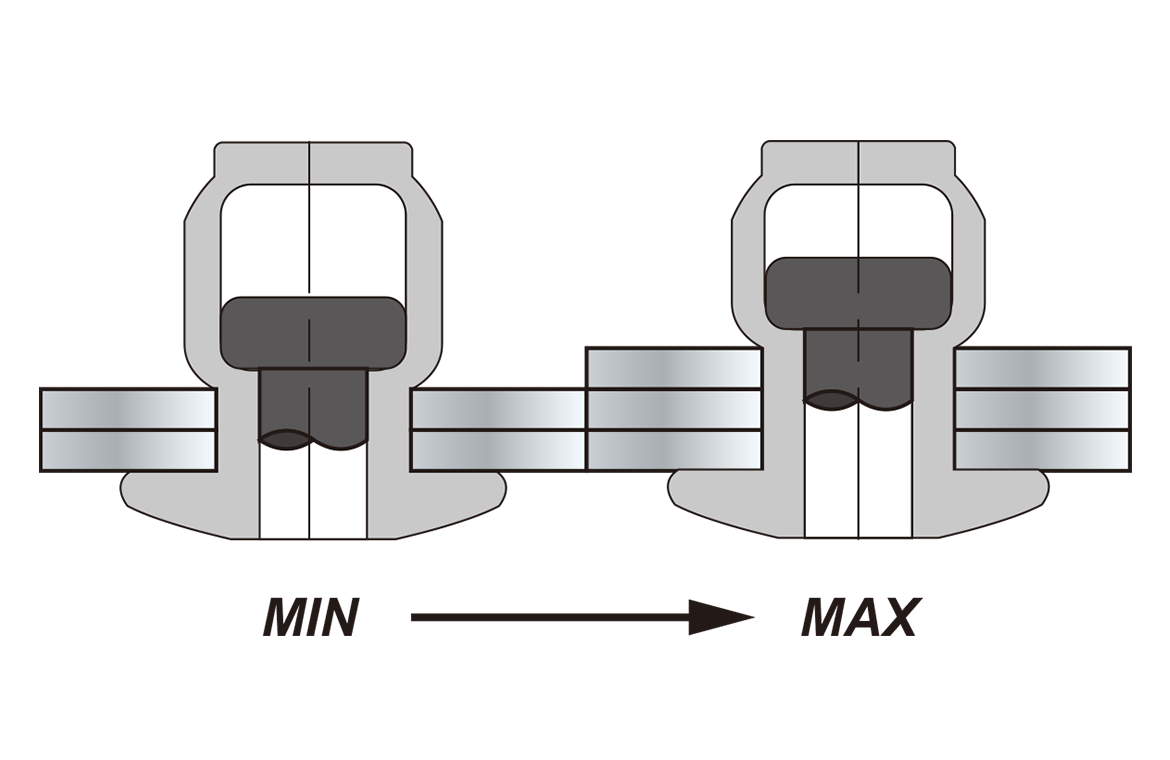

with a larger and stronger fastening range and strength
Give a larger fastening width and strength compared to open-end rivets of the same specifications, with the pin core retained inside, achieving a waterproof and airtight effect.
Application & Setting
Available in various materials to meet different needs:
- Used in car bodywork
- Used in container work
- Suitable for air conditioning operations
- Used in shipbuilding industry
Closed-end rivets offer robust and high-quality fastening results.
Sealed Blind Rivet SE
Blind Rivets
Uploaded 07/07/2023
|
PATTA Marketing
Give a larger fastening width and strength compared to open-end rivets of the same specifications, with the pin core retained inside, achieving a waterproof and airtight effect.
Technical Specifications
Available in Materials:
Aluminum / Steel
Copper / Steel
Stainless Steel
Aluminium / Steel Sizes
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 3.2 Ø 3.3~3.4 | 6.5 | 0.5 - 2.0 |
| 8.0 | 2.0 - 3.5 | |
| 9.5 | 3.5 - 5.0 | |
| 11.0 | 5.0 - 6.5 | |
| 12.5 | 6.5 - 8.0 | |
| 4.0 Ø 4.1~4.2 | 8.0 | 0.5 - 3.5 |
| 9.5 | 3.5 - 5.0 | |
| 11.0 | 5.0 - 6.0 | |
| 12.5 | 6.5 - 8.0 | |
| 14.5 | 8.0 - 10.0 | |
| 4.8 Ø 4.9~5.0 | 8.5 | 0.5 - 3.5 |
| 9.5 | 3.5 - 5.0 | |
| 11.0 | 5.0 - 6.0 | |
| 13.0 | 6.5 - 8.0 | |
| 14.5 | 8.0 - 9.5 | |
| 16.0 | 9.5 - 11.0 | |
| 18.0 | 11.0 - 13.0 | |
| 21.0 | 13.0 - 16.0 | |
| 25.0 | 16.0 - 20.0 |
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 1/8 Ø 0.13 | 1/4 | 0.02 - 0.08 |
| 5/16 | 0.08 - 0.14 | |
| 3/8 | 0.14 - 0.20 | |
| 7/16 | 0.20 - 0.26 | |
| 1/2 | 0.26 - 0.31 | |
| 5.32 Ø 0.16 | 5/16 | 0.02 - 0.14 |
| 3/8 | 0.14 - 0.20 | |
| 7/16 | 0.20 - 0.24 | |
| 1/2 | 0.26 - 0.31 | |
| 9/16 | 0.31 - 0.39 | |
| 3/16 Ø 0.19 | 5/16 | 0.02 - 0.14 |
| 3/8 | 0.14 - 0.20 | |
| 7/16 | 0.20 - 0.24 | |
| 1/2 | 0.26 - 0.31 | |
| 9/16 | 0.31 - 0.37 | |
| 5/8 | 0.37 - 0.43 | |
| 11/16 | 0.43 - 0.51 | |
| 13/16 | 0.51 - 0.63 | |
| 1 | 0.63 - 0.79 |
Copper / Steel Sizes
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 3.2 Ø 3.3~3.4 | 6.5 | 0.5 - 2.0 |
| 8.0 | 2.0 - 3.5 | |
| 9.5 | 3.5 - 5.0 | |
| 11.0 | 5.0 - 6.5 | |
| 12.5 | 6.5 - 8.0 | |
| 4.0 Ø 4.1~4.2 | 8.0 | 0.5 - 3.5 |
| 9.5 | 3.5 - 5.0 | |
| 11.0 | 5.0 - 6.0 | |
| 12.5 | 6.5 - 8.0 | |
| 14.5 | 8.0 - 10.0 | |
| 4.8 Ø 4.9~5.0 | 8.5 | 0.5 - 3.5 |
| 9.5 | 3.5 - 5.0 | |
| 11.0 | 5.0 - 6.0 | |
| 13.0 | 6.5 - 8.0 | |
| 14.5 | 8.0 - 9.5 | |
| 16.0 | 9.5 - 11.0 | |
| 18.0 | 11.0 - 13.0 | |
| 21.0 | 13.0 - 16.0 | |
| 25.0 | 16.0 - 20.0 |
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 1/8 Ø 0.13 | 1/4 | 0.02 - 0.08 |
| 5/16 | 0.08 - 0.14 | |
| 3/8 | 0.14 - 0.20 | |
| 7/16 | 0.20 - 0.26 | |
| 1/2 | 0.26 - 0.31 | |
| 5.32 Ø 0.16 | 5/16 | 0.02 - 0.14 |
| 3/8 | 0.14 - 0.20 | |
| 7/16 | 0.20 - 0.24 | |
| 1/2 | 0.26 - 0.31 | |
| 9/16 | 0.31 - 0.39 | |
| 3/16 Ø 0.19 | 5/16 | 0.02 - 0.14 |
| 3/8 | 0.14 - 0.20 | |
| 7/16 | 0.20 - 0.24 | |
| 1/2 | 0.26 - 0.31 | |
| 9/1 | 0.31 - 0.37 | |
| 5/8 | 0.37 - 0.43 | |
| 11/16 | 0.43 - 0.51 | |
| 13/16 | 0.51 - 0.63 | |
| 1 | 0.63 - 0.79 |
Stainless Steel Sizes
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 3.2 Ø 3.3~3.4 | 6.0 | 0.5 - 1.5 |
| 8.0 | 1.5 - 3.0 | |
| 10.0 | 3.0 - 5.0 | |
| 12.0 | 5.0 - 6.5 | |
| 14.0 | 6.5 - 8.0 | |
| 4.0 Ø 4.1~4.2 | 6.0 | 0.5 - 1.5 |
| 8.0 | 1.5 - 3.0 | |
| 10.0 | 3.0 - 5.0 | |
| 12.0 | 5.0 - 6.5 | |
| 14.0 | 6.5 - 8.0 | |
| 16.0 | 8.0 - 11.0 | |
| 4.8 Ø 4.9~5.0 | 8.0 | 0.5 - 3.0 |
| 10.0 | 3.0 - 5.0 | |
| 12.0 | 5.0 - 6.5 | |
| 16.0 | 6.5 - 9.0 | |
| 20.0 | 9.0 - 12.0 |
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 1/8 Ø 0.13 | 1/4 | 0.02 - 0.06 |
| 5/16 | 0.06 - 0.12 | |
| 3/8 | 0.12 - 0.20 | |
| 15/32 | 0.20 - 0.26 | |
| 9/16 | 0.26 - 0.31 | |
| 5.32 Ø 0.16 | 1/4 | 0.02 - 0.06 |
| 5/16 | 0.06 - 0.12 | |
| 3/8 | 0.12 - 0.20 | |
| 15/32 | 0.20 - 0.24 | |
| 9/16 | 0.24 - 0.31 | |
| 5/8 | 0.31 - 0.43 | |
| 3/16 Ø 0.19 | 5/16 | 0.02 - 0.12 |
| 3/8 | 0.12 - 0.20 | |
| 15/32 | 0.20 - 0.26 | |
| 5/8 | 0.26 - 0.35 | |
| 13/16 | 0.35 - 0.47 |
