High Strength Blind Rivet HP-Lok
HP
High-strength riveting
Suitable for thin metal sheets/plastics and other soft materials

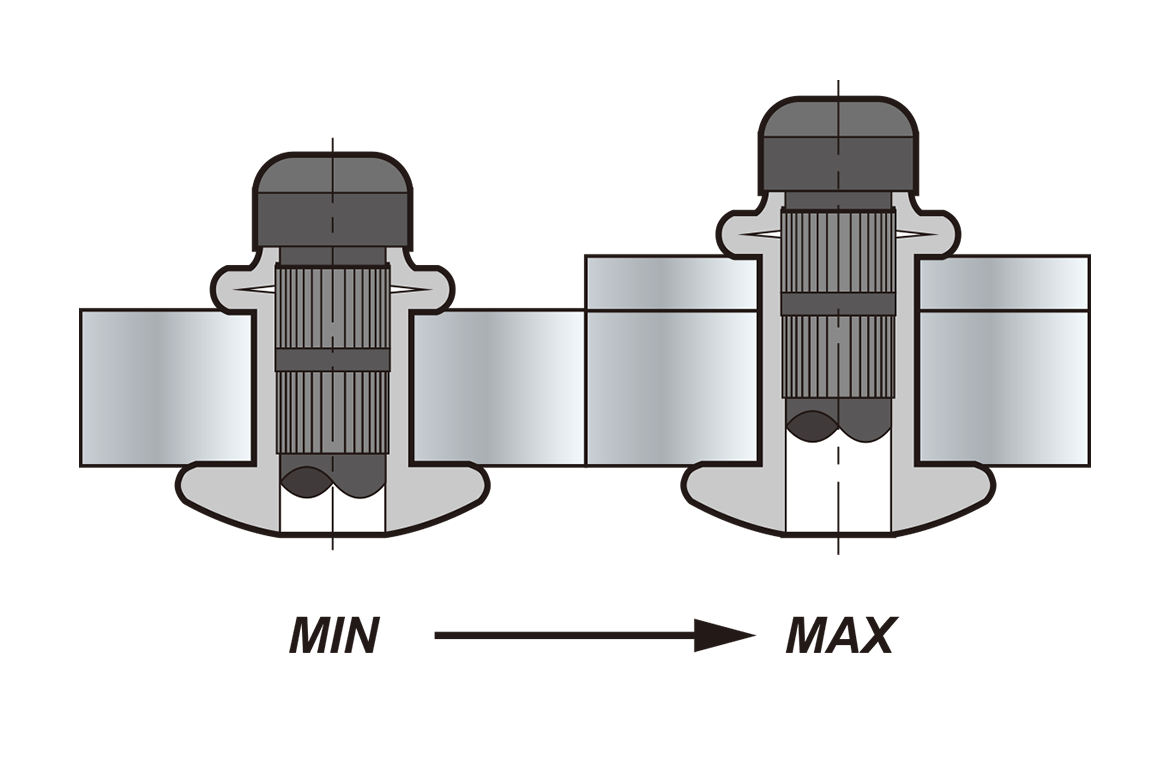

Rear spherical design. When riveting, the core expands the end of the rivet into an enlarged bulb shape, clamping the objects. This design offers high load-bearing capacity, vibration resistance, making it suitable for riveting thin sheets.
Application & Setting
Excellent filling capability, adheres tightly to the riveting base.
- Automotive industry
- Truck manufacturing
- Construction industry
- Bodywork
- Container assembly
Flat and even drum shape provides excellent support on the sheet metal riveting surface.
High Strength Blind Rivet HP-Lok HP
Blind Rivets
Uploaded 07/07/2023
|
PATTA Marketing
Rear spherical design. When riveting, the core expands the end of the rivet into an enlarged bulb shape, clamping the objects. This design offers high load-bearing capacity, vibration resistance, making it suitable for riveting thin sheets.
Technical Specifications
Available in Materials:
Steel
Aluminum Alloy
Steel Size

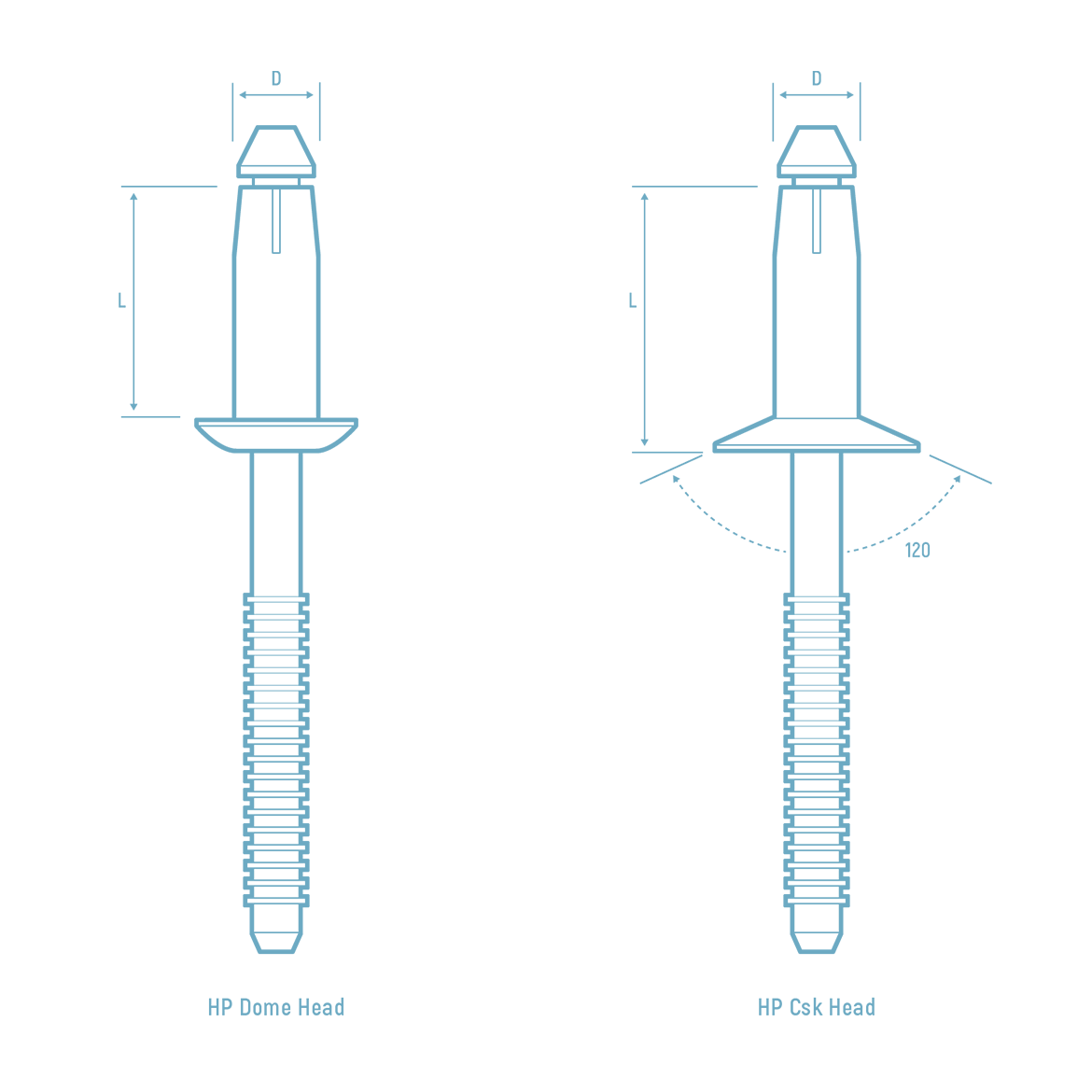

| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 6.4 Ø 6.7~6.9 | 10.5 | 2.8 - 4.8 |
| 12.5 | 4.8 - 6.8 | |
| 14.5 | 6.8 - 8.8 | |
| 16.5 | 8.8 - 10.8 | |
| 18.5 | 10.8 - 12.8 | |
| 20.5 | 12.8 - 14.8 | |
| 22.5 | 14.8 - 16.8 | |
| 24.5 | 16.8 - 18.8 |
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 1/4 Ø 0.26~0.27 | 13/32 | 0.11 - 0.19 |
| 1/2 | 0.19 - 0.27 | |
| 7/16 | 0.27 - 0.35 | |
| 5/8 | 0.35 - 0.43 | |
| 3/4 | 0.43 - 0.50 | |
| 13/16 | 0.50 - 0.58 | |
| 7/8 | 0.58 - 0.66 | |
| 31/32 | 0.66 - 0.74 |
Blind Rivets Product Catalog
PDF 2.37 Mb
