Anlock Blind Rivet In-Bolt

IB

Strong shock resistance
Waterproof performance

Anlock Blind Rivet In-Bolt
Specifications
Industrial riveting, high strength, wide riveting range, strong locking core ability, providing very strong shock resistance, waterproof performance.

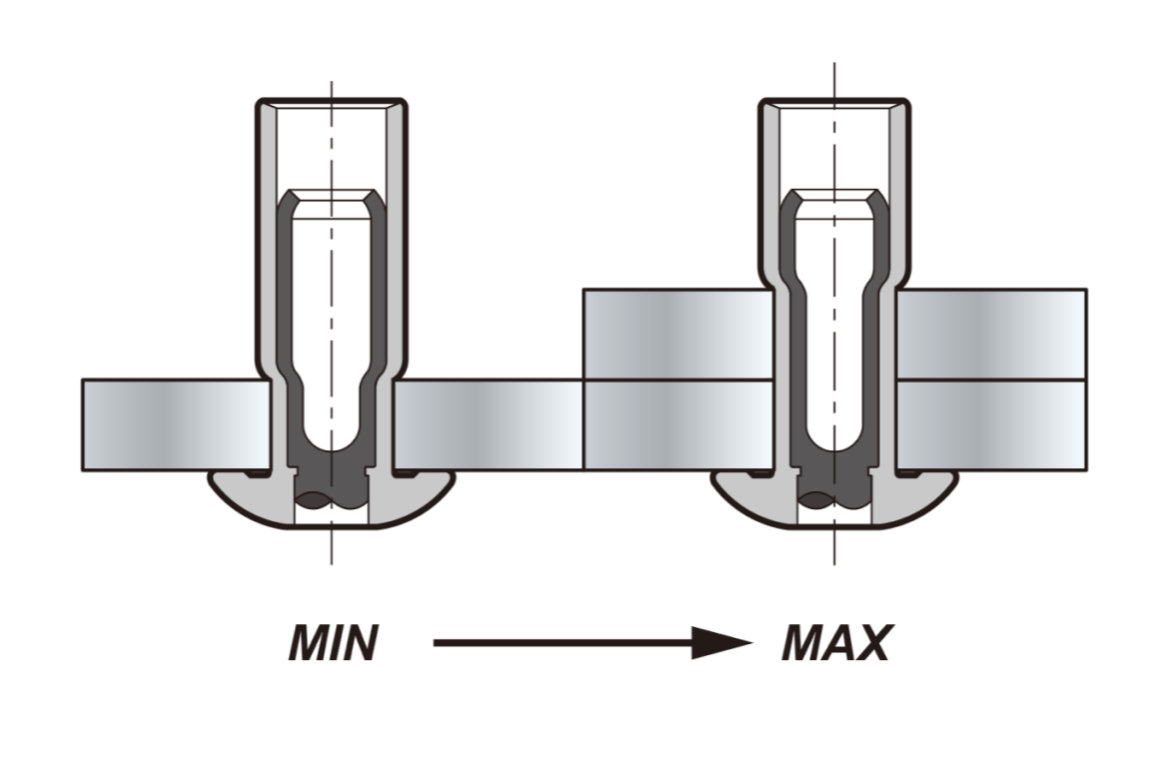

banner-1

Application & Setting

High fastening effectiveness, widely used in:

  • Automotive industry
  • Truck manufacturing
  • Containers
  • Construction industry
  • Trailer operations

Internal lock type rivets have stronger performance compared to external lock type.

Anlock Blind Rivet In-Bolt IB

Blind Rivets

Uploaded 07/07/2023 | PATTA Marketing

Industrial riveting, high strength, wide riveting range, strong locking core ability, providing very strong shock resistance, waterproof performance.

Technical Specifications

Available in Materials:
Stainless Steel
Steel
Aluminum Alloy

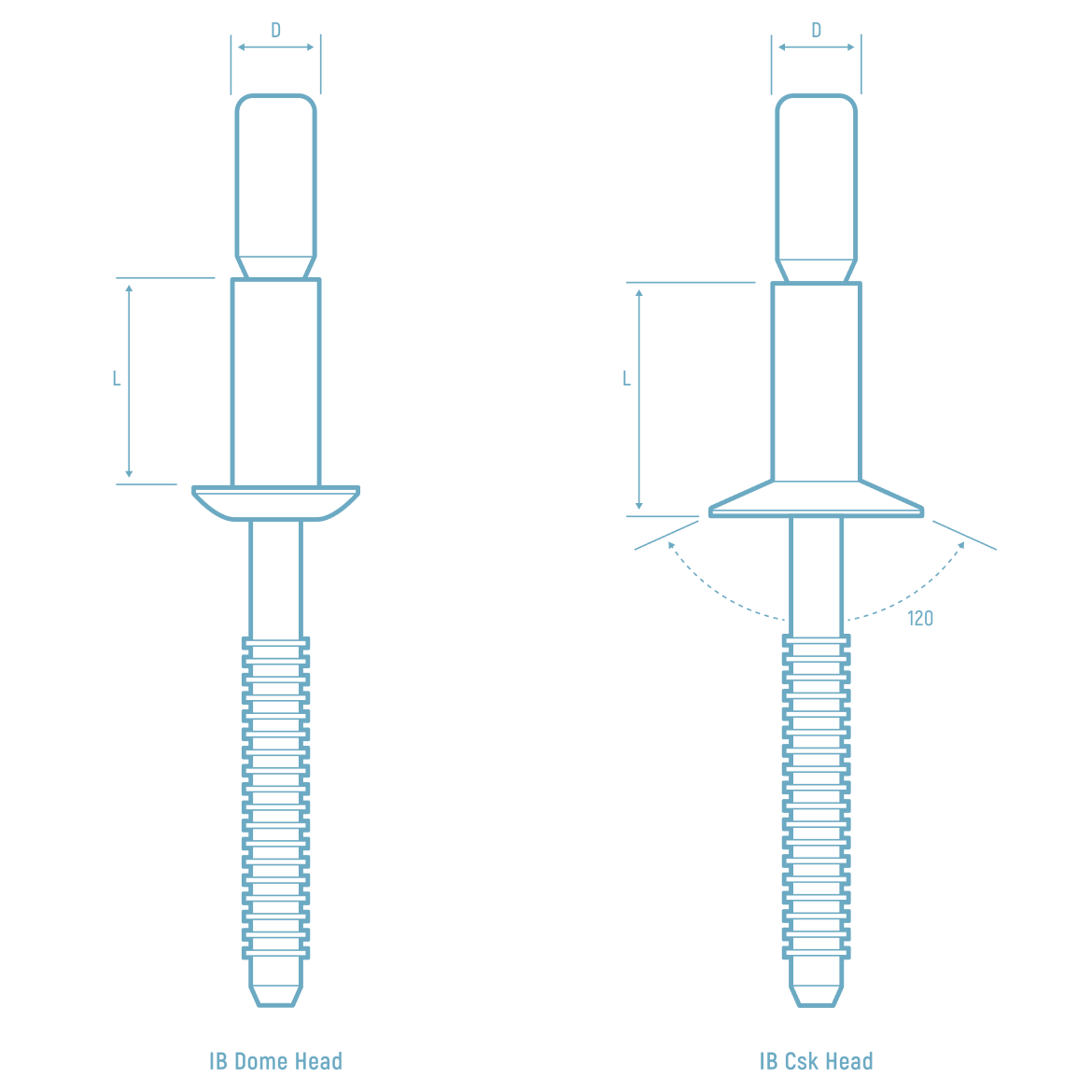

IB Available Sizes

Diameter (D)Length (L)Grip Range
4.8

Ø 4.9 ~ 5.0

10.01.57 ~ 6.86
14.01.57 ~ 11.1
6.4

Ø 6.5 ~ 6.6

14.02.03 ~ 9.53
20.02.03 ~ 15.88
Diameter (D)Length (L)Grip Range
3/16

Ø 0.19 ~ 0.20

3/80.06 ~ 0.27
9/160.06 ~ 0.44
1/4

Ø 0.26 ~ 0.28

9/160.08 ~ 0.38
13/160.08 ~ 0.63

Blind Rivets Product Catalog

PDF 2.37 Mb

Download PDF
