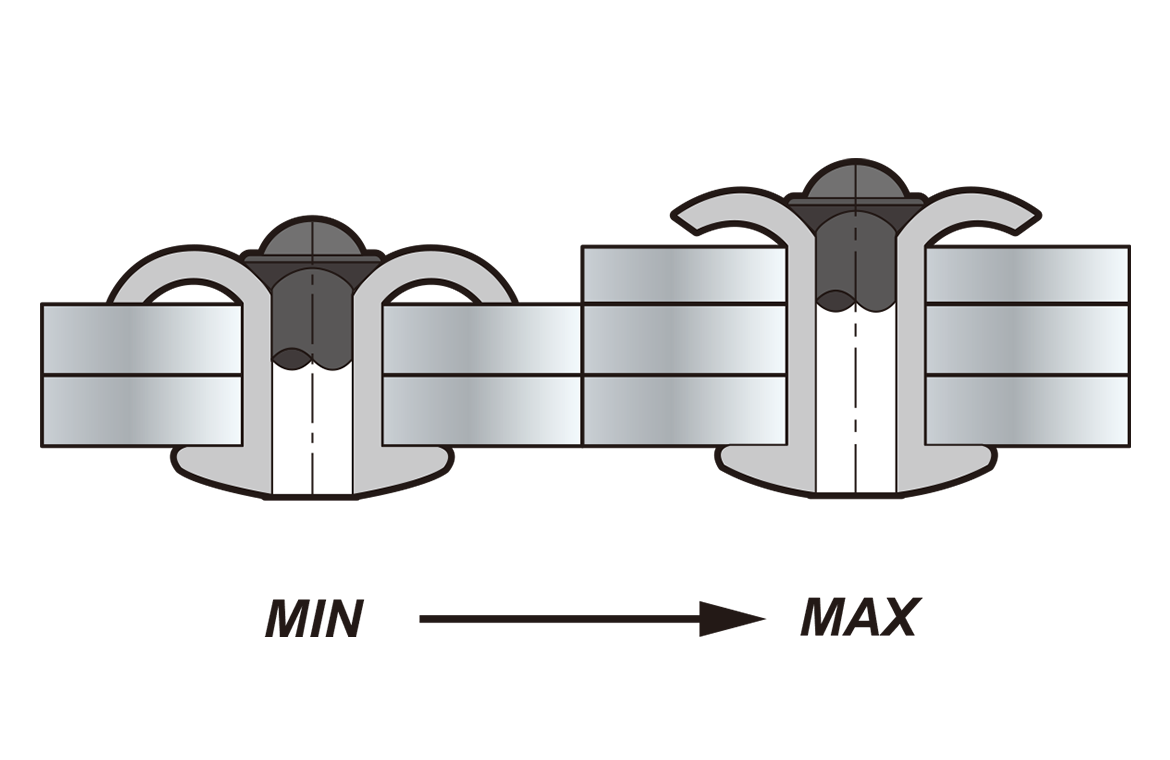

After riveting, the rivet head forms four petals according to the design structure, giving larger range. High tensile strength and fastening performance, suitable for riveting two or more objects together.
Application & Setting
- Wood
- Plastic window frames
- Drywall
- Furniture
- Soft/Brittle materials
Effectively addresses the riveting needs of soft / brittle materials.
Peel Blind Rivet PE
Blind Rivets
Uploaded 07/07/2023
|
PATTA Marketing
After riveting, the rivet head forms four petals according to the design structure, giving larger range. High tensile strength and fastening performance, suitable for riveting two or more objects together.
Technical Specifications
Available in Materials:
Aluminum / Steel
PE Available Sizes
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 3.2 Ø 3.3~3.4 | 6.0 | 1.0 - 2.5 |
| 8.0 | 2.5 - 4.5 | |
| 10.0 | 4.5 - 6.5 | |
| 12.0 | 6.5 - 8.0 | |
| 16.0 | 8.0 - 11.5 | |
| 20.0 | 11.5 - 15.0 | |
| 4.0 Ø 4.2 | 8.0 | 1.0 - 4.0 |
| 10.0 | 4.0 - 5.5 | |
| 12.0 | 5.5 - 7.5 | |
| 16.0 | 7.5 - 11.0 | |
| 20.0 | 11.0 - 15.0 | |
| 25.0 | 15.0 - 19.0 | |
| 4.8 Ø 5.0 | 10.0 | 2.5 - 5.0 |
| 12.0 | 4.5 - 7.0 | |
| 14.0 | 6.5 - 9.0 | |
| 16.0 | 8.5 - 10.0 | |
| 18.0 | 9.5 - 12.0 | |
| 20.0 | 11.5 - 14.0 | |
| 25.0 | 13.5 - 19.0 | |
| 30.0 | 19.0 - 23.0 | |
| 35.0 | 23.0 - 28.0 | |
| 40.0 | 28.0 - 33.0 |
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 1/8 Ø 0.13 | 1/4 | 0.04 - 0.10 |
| 5/16 | 0.10 - 0.18 | |
| 3/8 | 0.18 - 0.26 | |
| 15/32 | 0.26 - 0.31 | |
| 5/8 | 0.31 - 0.45 | |
| 13/16 | 0.45 - 0.59 | |
| 5/32 Ø 0.17 | 5/16 | 0.04 - 0.16 |
| 3/8 | 0.16 - 0.22 | |
| 15/32 | 0.22 - 0.30 | |
| 5/8 | 0.30 - 0.43 | |
| 13/16 | 0.43 - 0.59 | |
| 1 | 0.59 - 0.75 | |
| 3/16 Ø 0.20 | 3/8 | 0.10 - 0.20 |
| 15/32 | 0.18 - 0.28 | |
| 9/16 | 0.26 - 0.35 | |
| 5/8 | 0.35 - 0.39 | |
| 11/16 | 0.37 - 0.47 | |
| 13/16 | 0.45 - 0.55 | |
| 1 | 0.53 - 0.75 | |
| 1 ~ 3/16 | 0.75 - 0.91 | |
| 1 ~ 3/8 | 0.91 - 1.10 | |
| 1 ~ 9/16 | 1.10 - 1.30 |
