Open End Blind Rivet

OP

Meets most riveting needs

Open End Blind Rivet
Specifications
Suitable for most industrial riveting applications, providing good riveting results at low cost.
banner-1

Application & Setting

The painted cap color can match the surrounding environment, making it both aesthetically pleasing and practical.

  • Office furniture
  • Automotive industry
  • Construction applications
  • Leather products

There are various materials and sizes to choose from.

Chipboard Screws

Screws

Uploaded 07/07/2023 | PATTA Marketing

Specifically designed for lightweight wood panels, such as plastic composite boards. They have deeper threads, providing excellent locking capability. The tip design is also different from other screws, as it is more blunt to reduce the likelihood of the board splitting when drilling.

Technical Specifications

Available in Materials:
Aluminium / Steel
Aluminium / Stainless Steel
Steel
Stainless Steel

Aluminium / Stainless Steel Size

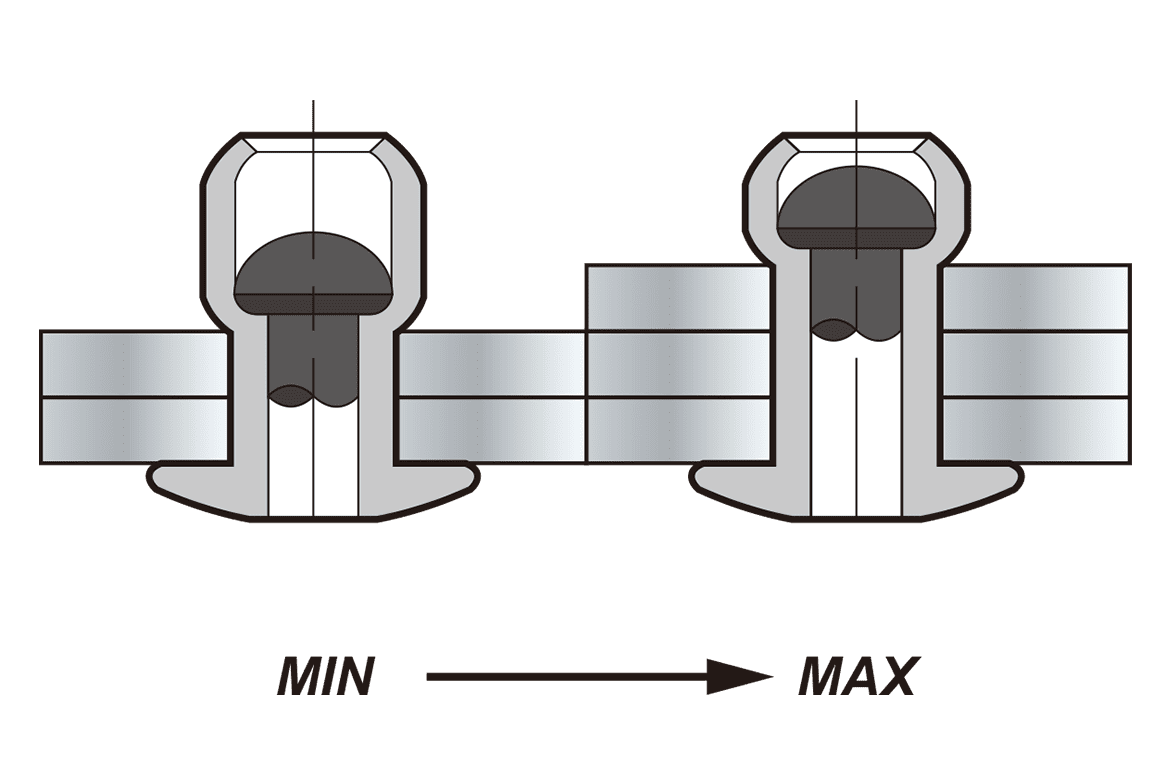

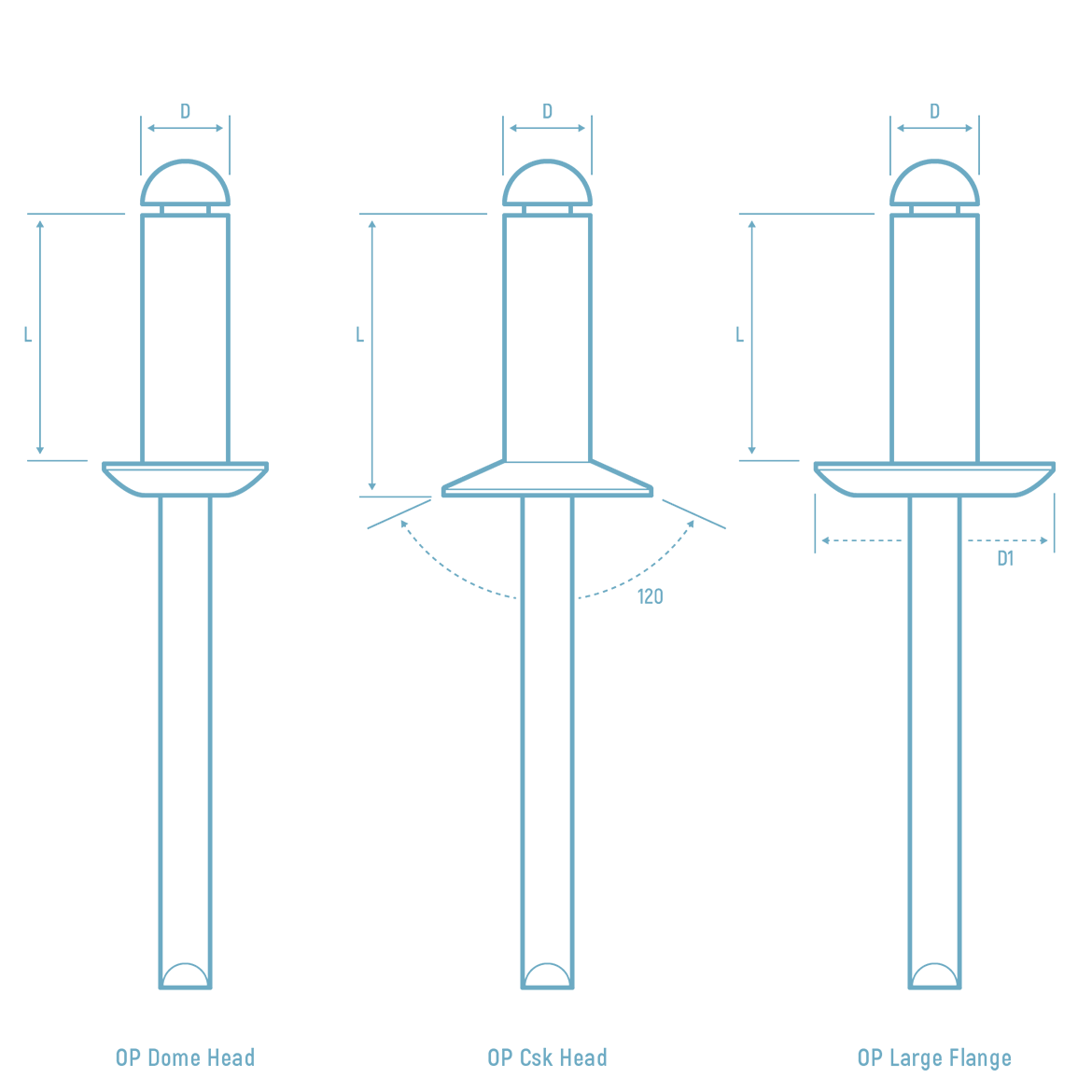

Diameter (D)Length (L)Grip Range
2.4

Ø 2.5~2.6

6.42.5 - 4.0
8.04.0 - 5.5
10.05.5 - 7.5
3.2

Ø 3.3~3.4

6.41.0 - 3.0
8.03.0 - 5.0
10.05.0 - 6.5
11.46.5 - 8.0
12.78.0 - 9.0
14.59.0 - 10.5
16.010.5 - 12.0
19.012.0 - 14.5
22.014.5 - 17.5
4.0

Ø 4.1~4.2

6.41.0 - 3.0
8.03.0 - 5.0
10.05.0 - 6.5
11.46.5 - 8.0
12.78.0 - 9.0
14.59.0 - 10.5
16.010.5 - 12.0
19.012.0 - 14.5
22.014.5 - 17.5
4.8

Ø 4.9~5.0

8.03.0 - 5.0
10.05.0 - 6.5
11.46.5 - 8.0
12.78.0 - 9.0
14.59.0 - 10.5
16.010.5 - 12.0
19.012.0 - 14.5
22.014.5 - 17.5
25.417.0 - 20.0
6.4

Ø 6.5~6.6

10.02.5 - 4.5
12.76.0 - 7.0
14.57.0 - 8.5
16.09.0 - 10.5
19.010.5 - 13.5
22.013.5 - 16.5
25.416.5 - 20.0
Diameter (D)Length (L)Grip Range
3/32

Ø 0.10

1/40.10 - 0.16
5/160.14 - 0.22
3/80.22 - 0.30
1/8

Ø 0.13

1/40.04 - 0.12
5/160.12 - 0.20
3/80.20 - 0.26
7/160.31 - 0.50
1/20.31 - 0.35
9/160.35 - 0.41
5/80.41 - 0.47
3/40.47 - 0.57
7/80.57 - 0.69
5/32

Ø 0.16

1/40.04 - 0.12
5/160.12 - 0.20
3/80.20 - 0.26
7/160.31 - 0.50
1/20.31 - 0.35
9/160.35 - 0.41
5/80.41 - 0.47
3/40.47 - 0.57
7/80.57 - 0.69
3/16

Ø 0.19

5/160.12 - 0.20
3/80.20 - 0.26
7/160.31 - 0.50
1/20.31 - 0.35
9/160.35 - 0.41
5/80.41 - 0.47
3/40.47 - 0.57
7/80.57 - 0.69
10.67 - 0.79
1/4

Ø 0.26

3/80.10 - 0.18
1/20.24 - 0.28
9/160.28 - 0.35
5/80.35 - 0.41
25/640.41 - 0.53
33/640.53 - 0.65
10.65 - 0.79

Aluminium / Steel Sizes

Diameter (D)Length (L)Grip Range
3.2

Ø 3.3~3.4

6.00.5 - 2.5
8.02.5 - 4.5
10.04.5 - 6.0
12.06.0 - 8.0
14.08.0 - 10.0
4.0

Ø 4.1~4.2

6.01.0 - 2.0
8.02.0 - 4.0
10.04.0 - 6.0
12.06.0 - 7.5
14.07.5 - 9.5
16.09.5 - 11.0
18.011.0 - 13.0
20.013.0 - 15.0
4.8

Ø 4.9~5.0

8.01.5 - 3.0
10.03.0 - 5.0
12.05.0 - 7.0
14.07.0 - 9.0
16.09.0 - 10.5
18.010.5 - 12.0
20.012.0 - 14.0
22.014.0 - 16.0
25.016.0 - 19.0
6.4

Ø 6.5~6.6

12.03.0 - 6.0
16.06.0 - 10.0
20.010.0 - 14.0
25.014.0 - 19.0
30.018.0 - 24.0
Diameter (D)Length (L)Grip Range
1/8

Ø 0.13

1/40.02 - 0.10
5/160.10 - 0.18
3/80.18 - 0.24
15/320.24 - 0.31
9/160.31 - 0.39
5.32

Ø 0.16

1/40.04 - 0.08
5/160.08 - 0.16
3/80.16 - 0.24
15/320.24 - 0.30
9/160.30 - 0.37
5/80.37 - 0.41
11/160.43 - 0.51
13/160.51 - 0.59
3/16

Ø 0.19

5/160.06 - 0.12
3/80.12 - 0.20
15/320.20 - 0.28
9/160.28 - 0.35
5/80.35 - 0.41
11/160.41 - 0.47
13/160.47 - 0.55
7/80.55 - 0.63
10.63 - 0.75
1/4

Ø 0.26

15/320.12 - 0.24
5/80.24 - 0.39
13/160.39 - 0.55
10.55 - 0.75
1-3/160.71 - 0.94

Steel Sizes

Diameter (D)Length (L)Grip Range
3.2

Ø 3.3~3.4

6.00.5 - 3.0
8.03.0 - 5.0
10.05.0 - 7.0
12.07.0 - 9.0
14.09.0 - 11.0
16.011.0 - 13.0
4.0

Ø 4.1~4.2

6.01.0 - 2.0
8.02.0 - 4.0
10.04.0 - 6.0
12.06.0 - 8.0
14.08.0 - 10.0
16.010.0 - 12.0
18.012.0 - 14.0
20.014.0 - 16.0
4.8

Ø 4.9~5.0

8.01.5 - 3.5
10.03.5 - 5.5
12.05.5 - 7.5
14.07.5 - 9.5
16.09.5 - 11.5
18.011.5 - 13.0
20.013.0 - 15.0
22.015.0 - 17.0
25.017.0 - 19.5
6.4

Ø 6.5~6.6

10.03.0 - 4.0
12.04.0 - 6.0
16.06.0 - 9.0
20.09.0 - 13.0
25.013.0 - 19.0
30.019.0 - 24.0
Diameter (D)Length (L)Grip Range
1/8

Ø 0.13

1/40.02 - 0.12
5/160.12 - 0.20
3/80.20 - 0.28
15/320.28 - 0.35
9/160.35 - 0.43
5/80.43 - 0.51
5.32

Ø 0.16

1/40.04 - 0.08
5/160.08 - 0.16
3/80.16 - 0.24
15/320.24 - 0.31
9/160.31 - 0.39
5/80.39 - 0.47
11/160.47 - 0.55
13/160.55 - 0.63
3/16

Ø 0.19

5/160.06 - 0.14
3/80.14 - 0.22
15/320.22 - 0.30
9/160.30 - 0.37
5/80.37 - 0.45
11/160.45 - 0.51
13/160.51 - 0.59
7/80.59 - 0.67
10.67 - 0.77
1/4

Ø 0.26

3/80.12 - 0.16
15/320.16 - 0.24
5/80.24 - 0.35
13/160.35 - 0.51
10.51 - 0.75
1-3/160.75 - 0.94

Stainless Steel Sizes

Diameter (D)Length (L)Grip Range
3.2

Ø 3.3~3.4

6.01.0 - 3.0
8.03.0 - 5.0
10.05.0 - 7.0
12.07.0 - 9.0
14.09.0 - 11.0
16.011.0 - 13.0
18.013.0 - 15.0
20.015.0 - 17.0
4.0

Ø 4.1~4.2

6.01.0 - 2.0
8.02.0 - 4.0
10.04.0 - 6.0
12.06.0 - 8.0
14.08.0 - 10.0
16.010.0 - 12.0
18.012.0 - 14.0
20.014.0 - 16.0
4.8

Ø 4.9~5.0

8.01.5 - 3.5
10.03.5 - 5.5
12.05.5 - 7.5
14.07.5 - 9.5
16.09.5 - 11.5
18.011.5 - 13.0
20.013.0 - 15.0
22.015.0 - 17.0
25.017.0 - 19.5
Diameter (D)Length (L)Grip Range
1/8

Ø 0.13

1/40.04 - 0.12
5/160.12 - 0.20
3/80.20 - 0.28
15/320.28 - 0.35
9/160.35 - 0.43
5/80.43 - 0.51
11/160.51 - 0.59
13/160.59 - 0.67
5.32

Ø 0.16)

1/40.04 - 0.08
5/160.08 - 0.16
3/80.16 - 0.24
15/320.24 - 0.31
9/160.31 - 0.39
5/80.39 - 0.47
11/160.47 - 0.55
13/160.55 - 0.63
3/16

Ø 0.19

5/160.06 - 0.14
3/80.14 - 0.22
15/320.22 - 0.30
9/160.30 - 0.37
5/80.37 - 0.45
11/160.45 - 0.51
13/160.51 - 0.59
7/80.59 - 0.67
10.67 - 0.77
