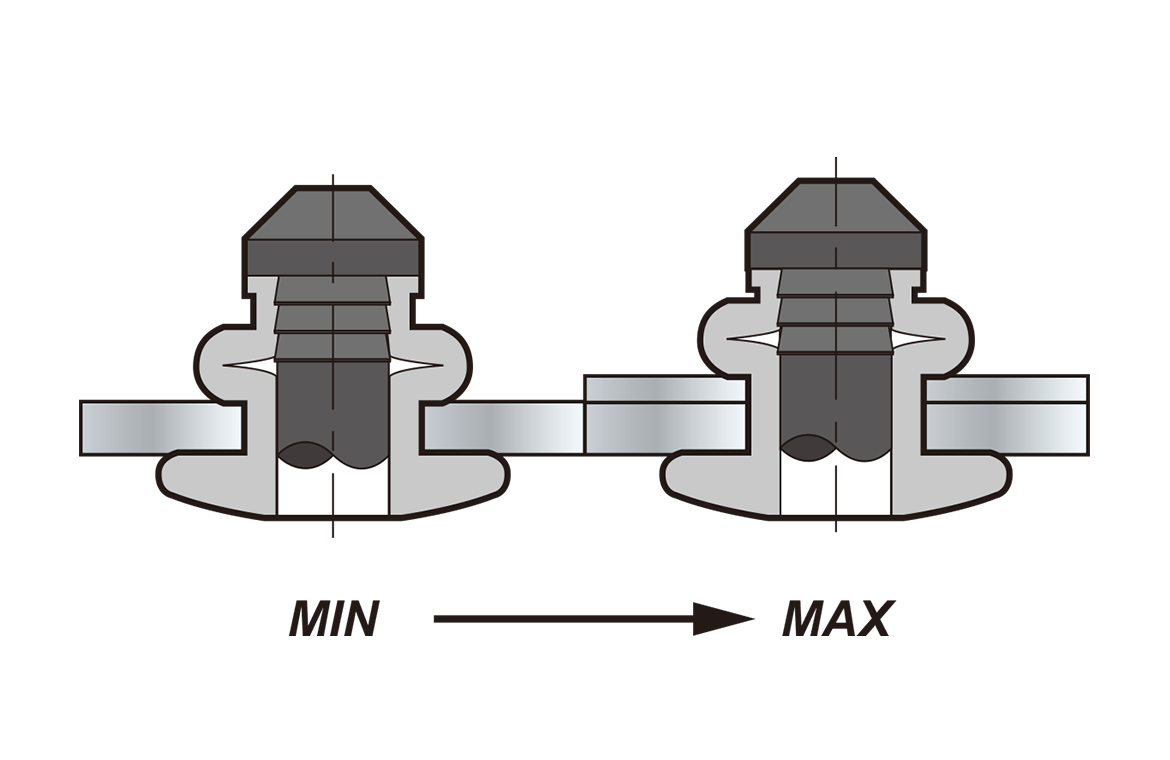

The rear spherical causes the nail core to pull the end of the rivet body into a bulging shape clamping the riveted object tightly. High load-bearing capacity, great vibration resistance, and high riveting strength, suitable for thin sheets.
Application & Setting
It has excellent hole-filling properties, allowing it to adhere tightly to the riveting base.
- Automotive industry
- Truck manufacturing
- Construction industry
- Vehicle bodywork
Outstanding riveting capability, providing professional fastening.
High Strength Blind Rivet HK-Lok HK
Blind Rivets
Uploaded 07/07/2023
|
PATTA Marketing
The rear spherical causes the nail core to pull the end of the rivet body into a bulging shape clamping the riveted object tightly. High load-bearing capacity, great vibration resistance, and high riveting strength, suitable for thin sheets.
Technical Specifications
Available in Materials:
Steel
Stainless Steel

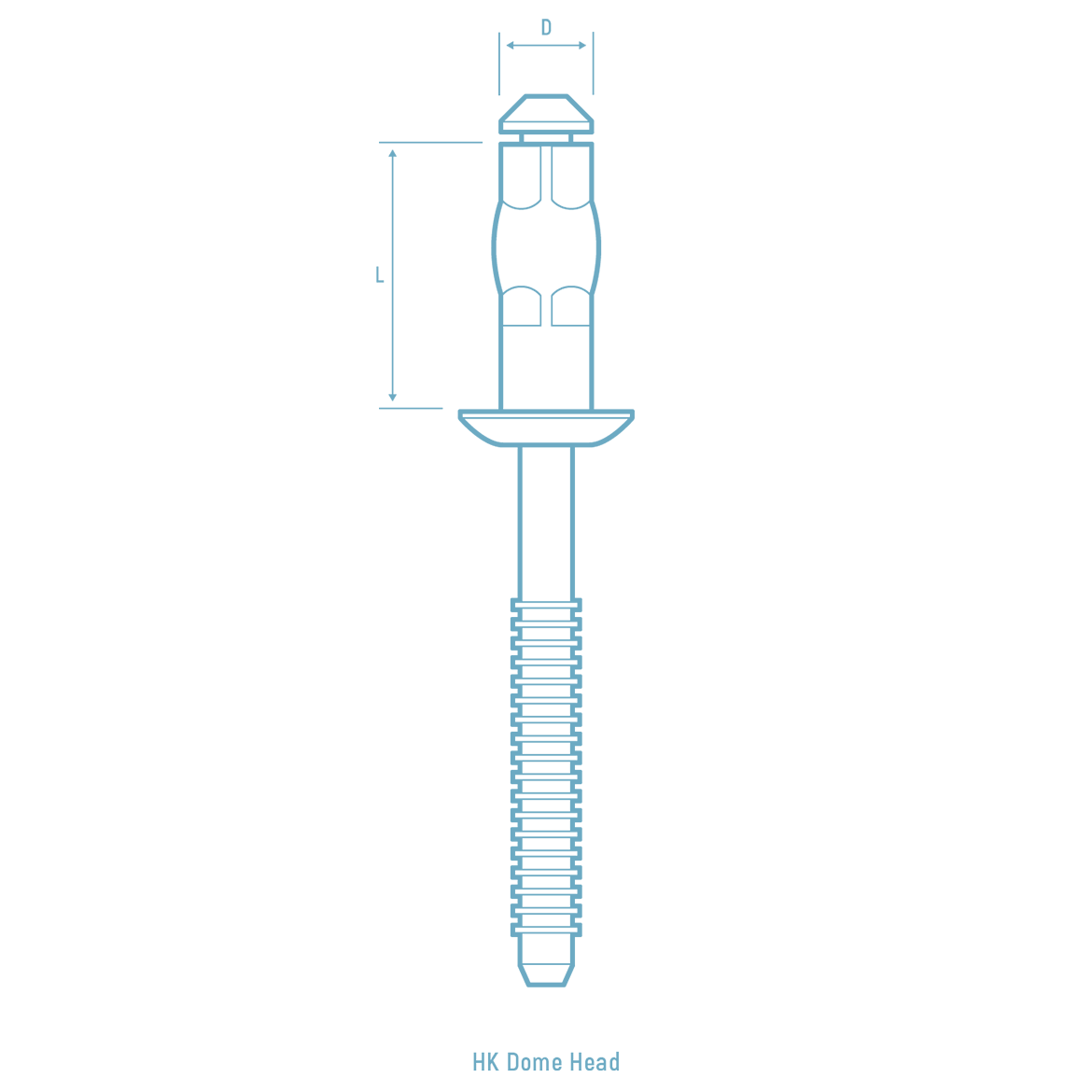

HK Available Sizes
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 3.2 Ø 3.3~3.4 | 7.0 | 1.0 - 3.0 |
| 9.0 | 3.0 - 5.0 | |
| 11.0 | 5.0 - 7.0 | |
| 4.0 Ø 4.1~4.2 | 8.0 | 1.0 - 3.0 |
| 10.0 | 3.0 - 5.0 | |
| 12.0 | 5.0 - 7.0 | |
| 14.5 | 7.0 - 9.0 | |
| 4.8 Ø 4.9~5.0 | 9.5 | 1.5 - 3.5 |
| 12.0 | 3.5 - 6.0 | |
| 14.5 | 6.0 - 8.5 |
| Diameter (D) | Length (L) | Grip Range |
|---|---|---|
| 1/8 Ø 0.13 | 9/32 | 0.04 - 0.12 |
| 11/32 | 0.12 - 0.20 | |
| 7/16 | 0.20 - 0.28 | |
| 5/32 Ø 0.16 | 5/16 | 0.04 - 0.12 |
| 3/10 | 0.12 - 0.20 | |
| 15/32 | 0.20 - 0.28 | |
| 9/16 | 0.28 - 0.35 | |
| 3/16 Ø 0.19~0.20 | 3/8 | 0.06 - 0.14 |
| 15/32 | 0.14 - 0.24 | |
| 9/16 | 0.24 - 0.33 |
Blind Rivets Product Catalog
PDF 2.37 Mb
