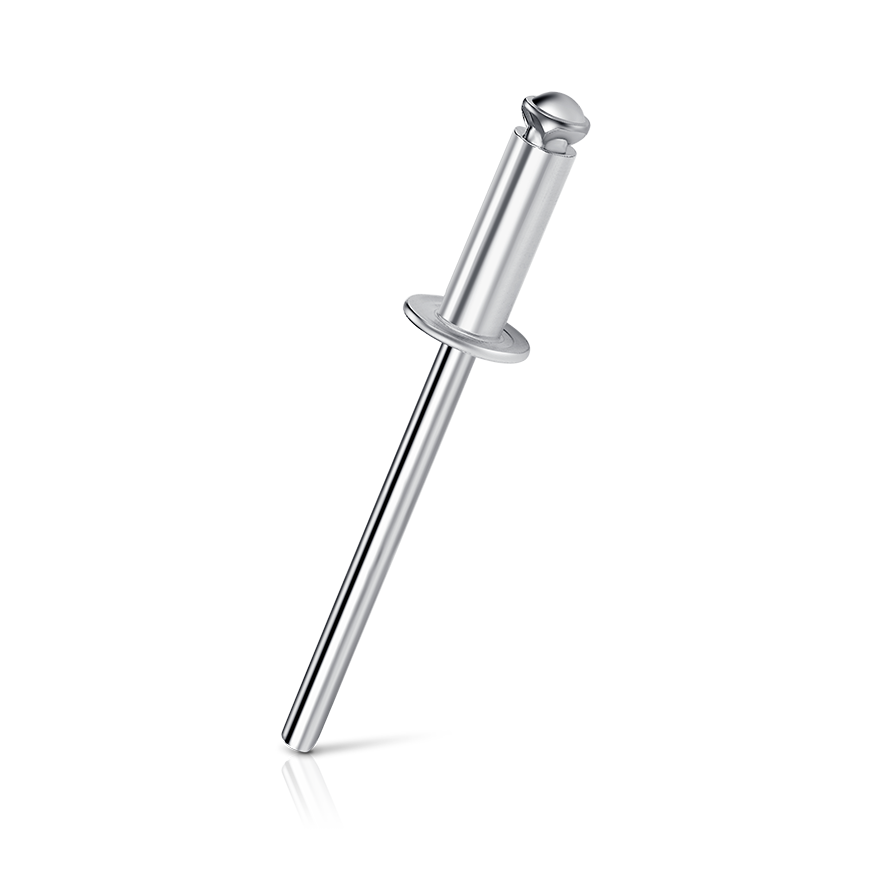

Peel Blind Rivet

Peel Blind Rivet

PE

Product Features

Designed for improved support



Peel Blind Rivets are designed for improved support in brittle, soft, or ductile materials. The mandrel of peel rivets is designed to split the end of the rivet body into four separate legs to create a large blindside bearing surface.


Application
  • Soft material such as wood
  • Plasterboard
  • Furniture
  • Plastic-framed window
Materials & Setting

Materials

  • Aluminium Alloy / Steel

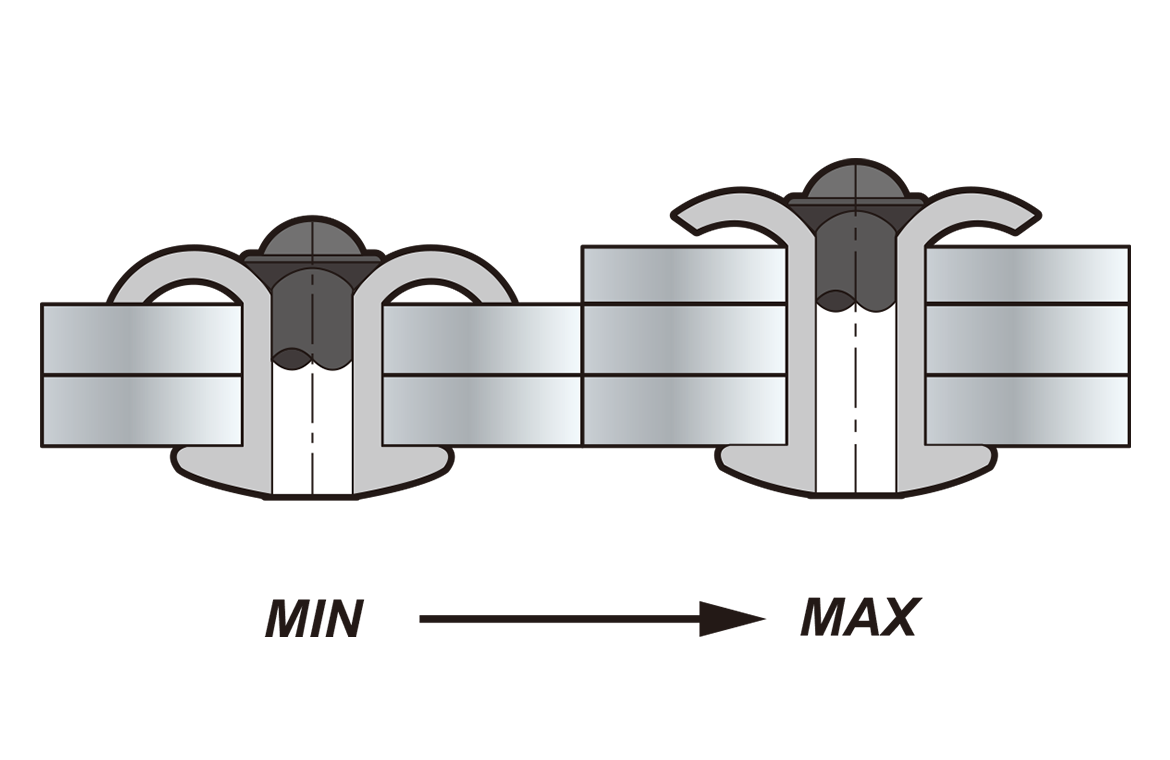

Setting



Video
PE Blind Rivet
00m 22s
Technical Specification

PE Peel Blind Rivet






PE Blind Rivet Sizes

Dia (d) Length (L) Grip Range

3.2 (1/8")

3.3~3.4 (.13)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
16.0 (5/8")
20.0 (13/16")

1.0 - 2.5 (0.04 - 0.10")
2.5 - 4.5 (0.10 - 0.18")
4.5 - 6.5 (0.18 - 0.26")
6.5 - 8.0 (0.26 - 0.31")
8.0 - 11.5 (0.31 - 0.45")
11.5 - 15.0 (0.45 - 0.59")

4.0 (5.32")

4.2 (.17)

8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
16.0 (5/8")
20.0 (13/16")
25.0 (1")

1.0 - 4.0 (0.04 - 0.16")
4.0 - 5.5 (0.16 - 0.22")
5.5 - 7.5 (0.22 - 0.30")
7.5 - 11.0 (0.30 - 0.43")
11.0 - 15.0 (0.43 - 0.59")
15.0 - 19.0 (0.59 - 0.75")

4.8 (3/16")

5.0 (.20)

10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")
18.0 (11/16")
20.0 (13/16")
25.0 (1")
30.0 (1-3/16")
35.0 (1-3/8")
40.0 (1-9/16")

2.5 - 5.0 (0.10 - 0.20")
4.5 - 7.0 (0.18 - 0.28")
6.5 - 9.0 (0.26 - 0.35")
8.5 - 10.0 (0.35 - 0.39")
9.5 - 12.0 (0.37 - 0.47")
11.5 - 14.0 (0.45 - 0.55")
13.5 - 19.0 (0.53 - 0.75")
19.0 - 23.0 (0.75 - 0.91")
23.0 - 28.0 (0.91 - 1.10")
28.0 - 33.0 (1.10 - 1.30")
