High Strength Blind Rivet HP-Lok

High Strength Blind Rivet HP-Lok

HP

Product Features

Consistent high connection quality



High Strength Blind Rivets ensures a consistently high connection quality. The even, large and cleanly shaped closing head prevents the rivet from pulling out of the drill hole. Even thin-walled components can be connected safely and strongly.


Application
  • Automotive industry
  • Truck building
  • Containers
  • Construction work
  • Coach work
Materials & Setting

Materials

  • Steel
  • Aluminium Alloy

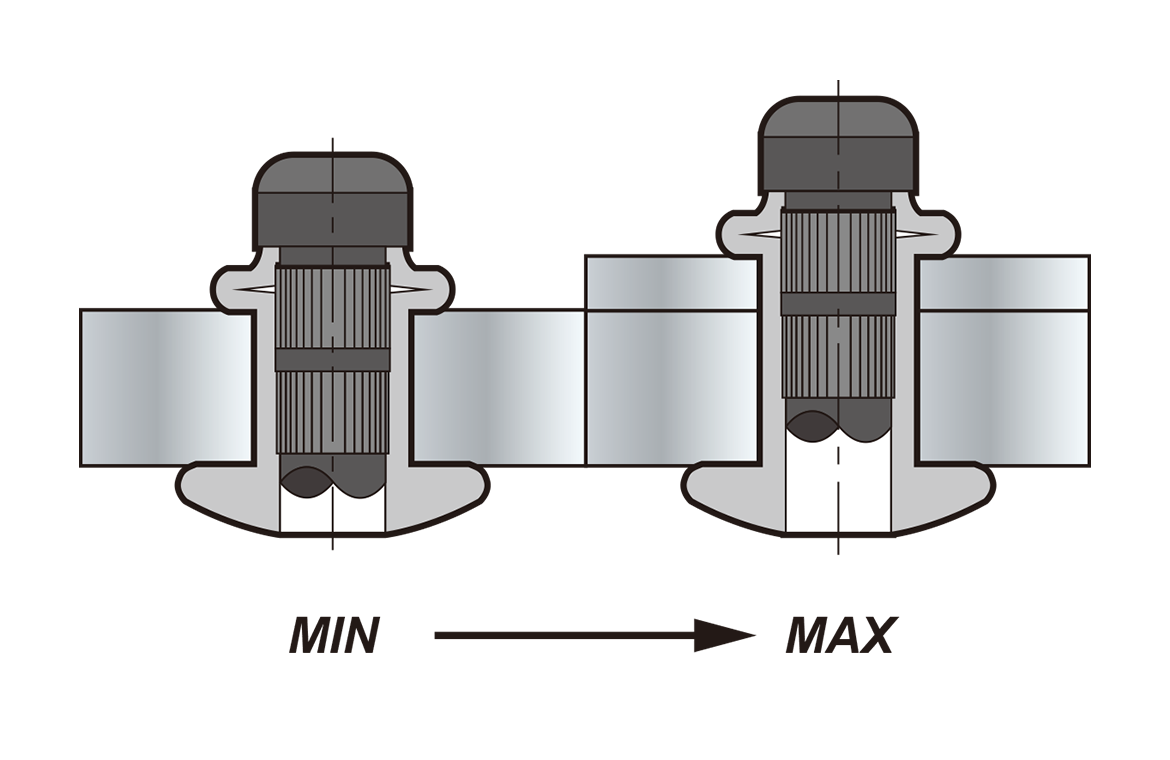

Setting



Video
HP Blind Rivet
00m 29s
Technical Specification

HP High Strength Blind Rivet HP-Lok



HP Blind Rivet Sizes

Dia (d) Length (L) Grip Range

Steel

6.4 (1/4")

6.7~6.9 (.26~.27)

10.5 (13/32")
12.5 (1/2")
14.5 (7/16")
16.5 (5/8")
18.5 (3/4")
20.5 (13/16")
22.5 (7/8")
24.5 (31/32")
26.5 (1-1/16")

2.8 - 4.8 (0.11 - 0.19")
4.8 - 6.8 (0.19 - 0.27")
6.8 - 8.8 (0.27 - 0.35")
8.8 - 10.8 (0.35 - 0.43")
10.8 - 12.8 (0.43 - 0.50")
12.8 - 14.8 (0.50 - 0.58")
14.8 - 16.8 (0.58 - 0.66")
16.8 - 18.8 (0.66 - 0.74")
18.8 - 20.8 (0.74 - 0.82")

Aluminium Alloy

6.4 (1/4")

6.7~6.9 (.26~.27)

10.5 (13/32")
12.5 (1/2")
14.5 (7/16")
16.5 (21/32")

2.8 - 4.8 (0.11 - 0.19")
4.8 - 6.8 (0.19 - 0.27")
6.8 - 8.8 (0.27 - 0.35")
8.8 - 10.8 (0.35 - 0.43")
