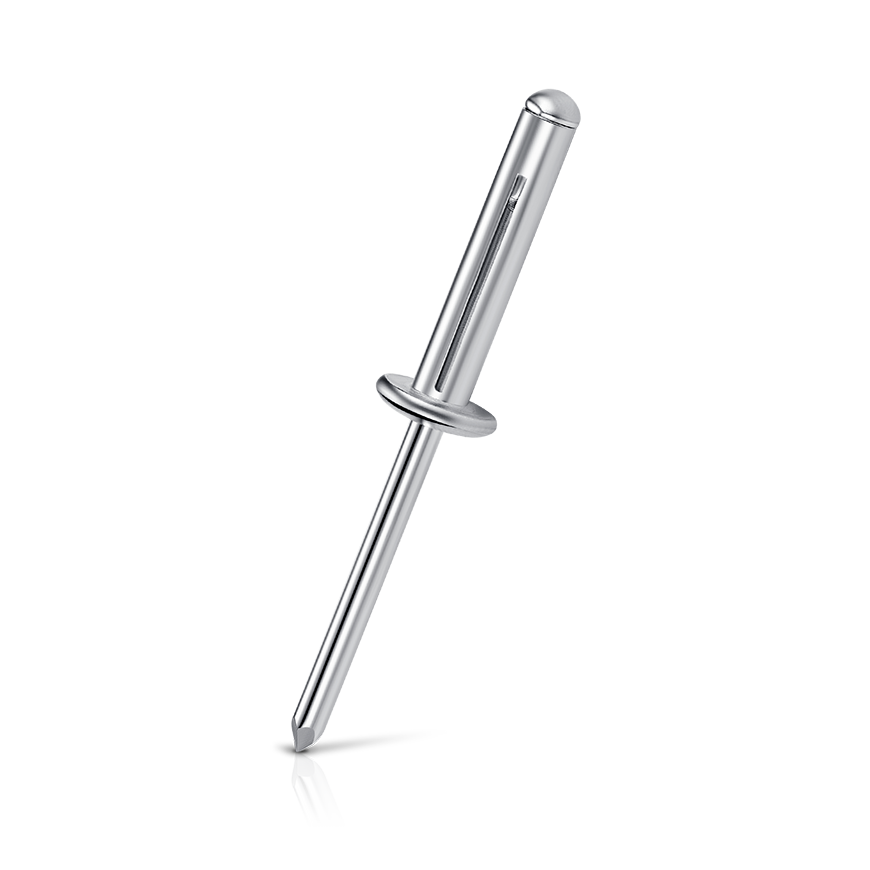

Bulb Tite Blind Rivet

Bulb Tite Blind Rivet

BT

Product Features

Special design for soft materials

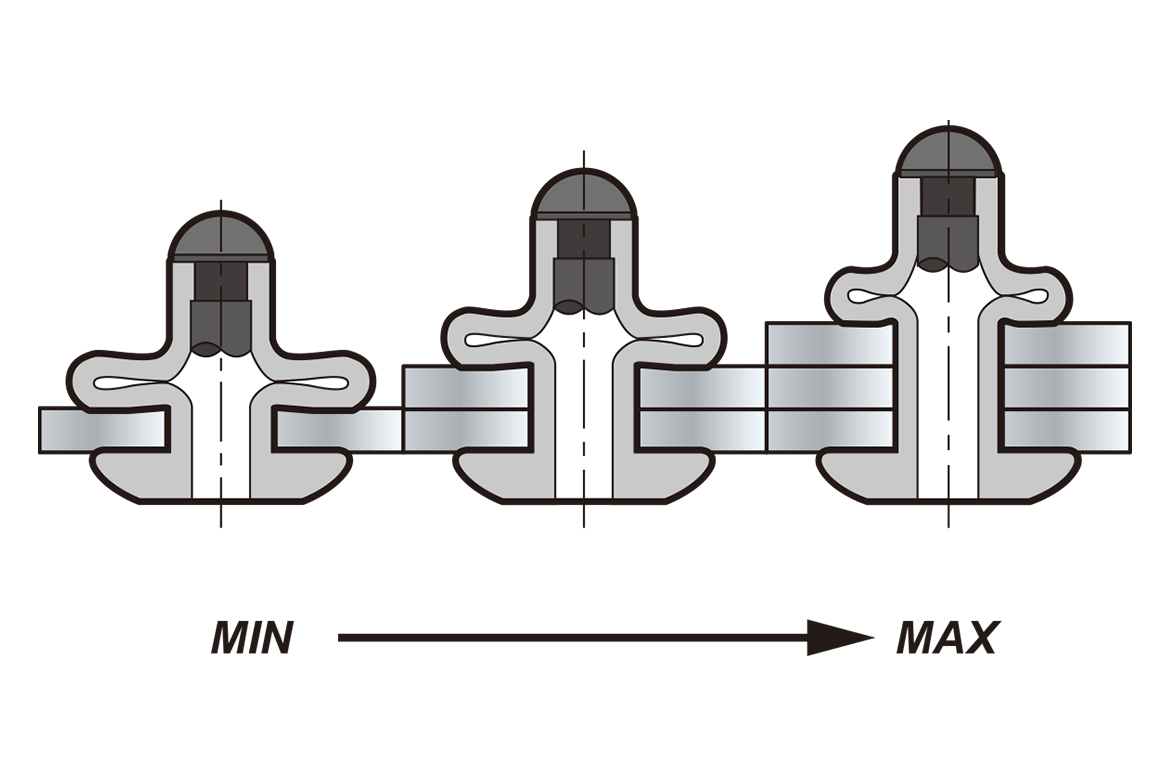

Bulb Tite Blind Rivets have three folded legs on the blind side. This special design provides high clamp load and is ideal for fastening soft materials.


Application
  • Soft material such as wood
  • Insulation
  • Plastic
  • Plaster boards
Materials & Setting

Materials

  • Aluminium Alloy

Setting



Video
BT Blind Rivet
00m 22s
Technical Specification

BT Bulb Tite Blind Rivet






BT Blind Rivet Sizes

Dia (d) Length (L) Grip Range
4.0 (5/32")
4.2~4.5 (.17~.18)
13.6 (17/32")
18.8 (3/4")
20.5 (13/16")
25.2 (1")
1.0 ~ 3.0 (0.04 ~ 0.12")
1.0 ~ 7.0 (0.04 ~ 0.28")
1.0 ~ 8.5 (0.04 ~ 0.33")
5.0 ~ 12.0 (0.20 ~ 0.47")
4.8 (3/16")
5.0~5.25 (.26~.28)
16.0 (5/8")
21.0 (13/16")
24.0 (15/16")
1.0 ~ 4.0 (0.04 ~ 0.16")
1.0 ~ 9.0 (0.04 ~ 0.35")
4.0 ~ 12.0 (0.16 ~ 0.47")
