Multi-Grip Blind Rivet MG-Series

Multi-Grip Blind Rivet MG-Series

MG

Product Features

Versatile, effective and economical

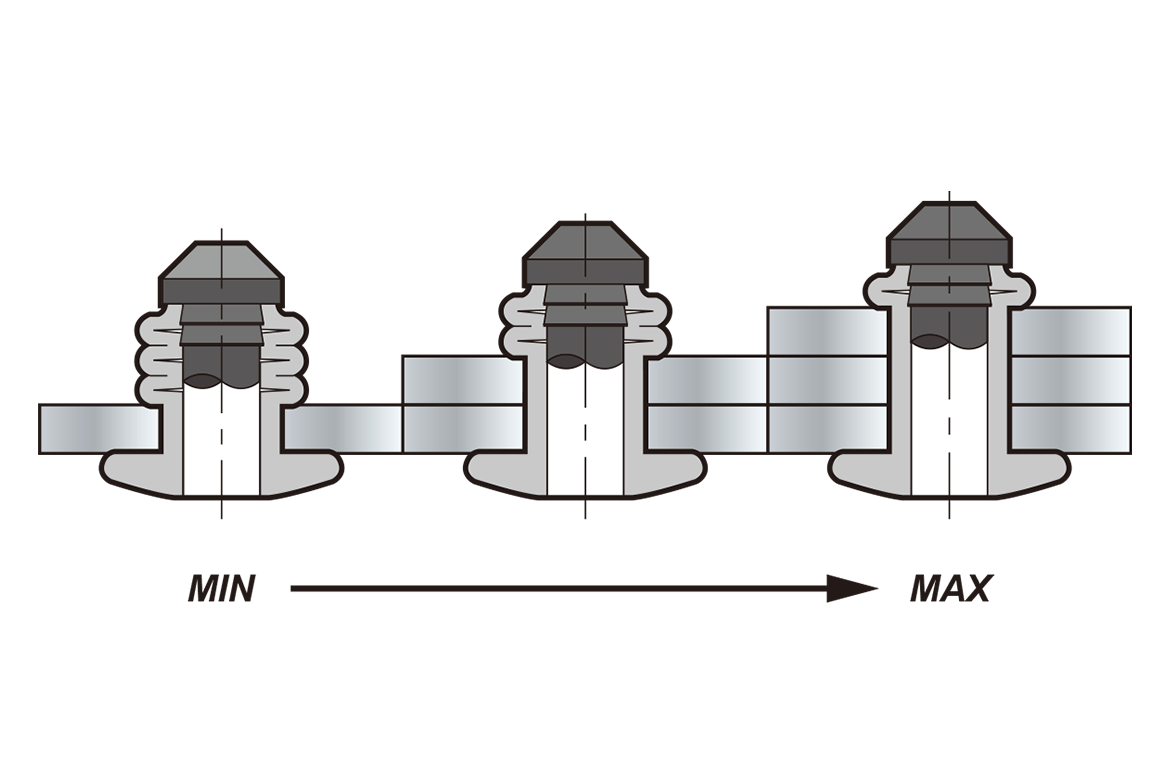

Multi Grip Blind Rivets provide an effective and economical option to other costly methods of fastening. One size handles the grip range capacity of up to Three standard open end rivets. They are ideal for any application requiring open end blind rivets but less inventory needed.


Application
  • Plastics
  • Automotive industry
  • Furniture industry
Materials & Setting

Materials

  • Steel
  • Stainless Steel

Setting



Video
MG Blind Rivet
00m 44s
Technical Specification

MG Multi-Grip Blind Rivet



MG Blind Rivet (Steel) Sizes
Dia (d) Length (L) Grip Range

3.2 (1/8")

3.3~3.4 (.13)

11.0 (7/16")

1.0 - 6.0 (0.04 - 0.24")

4.0 (5/32")

4.1~4.2 (.17)

13.0 (1/2") 2.0 - 8.0 (0.08 - 0.31")

4.8 (3/16")

4.9~5.0 (.19)

10.0 (3/8")
11.0 (7/16")
14.0 (9/16")
17.5 (11/16")

1.5 - 5.1 (0.06 - 0.20")
1.5 - 6.3 (0.06 - 0.25")
1.5 - 9.0 (0.06 - 0.35")
6.3 - 12.7 (0.25 - 0.50")

MG Blind Rivet (Stainless Steel) Sizes
Dia (d) Length (L) Grip Range

3.2 (1/8")

3.3~3.4 (.13)

11.0 (7/16")

1.0 - 6.0 (0.04 - 0.24")

4.0 (5/32")

4.1~4.2 (.17)

13.0 (1/2") 2.0 - 8.0 (0.08 - 0.31")

4.8 (3/16")

4.9~5.0 (.19)

14.0 (9/16")


1.5 - 9.0 (0.06 - 0.35")
