Drive Rivet

Easy to set
Mandrel is locked in the body
Various material friendly

Product Features

Designed for quick operation

Drive Rivets are designed for easy and quick operation. Just insert the rivet, hit the pin, and sheets are pulled tightly together. Smooth finished head without secondary operations.

Application

Swimming pool liners
Roofing
Building
Connection: stone, brick or concrete... etc

Materials & Setting

Materials

Stainless Steel / Aluminium Alloy

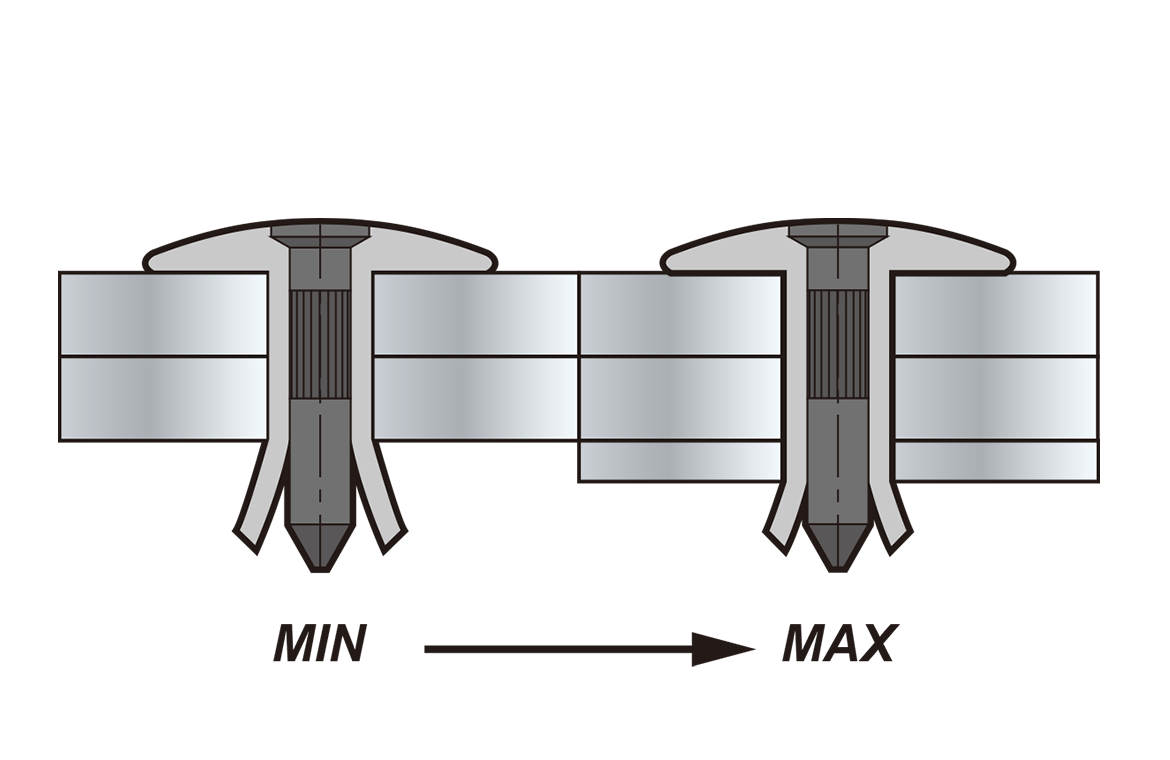

Setting

Technical Specification

DR Drive Rivet

DR Drive Rivet Sizes

Dia (d)	Length (L)	Grip Range
4.8 (3/16") 4.9~5.0 (.19~.20)	10.0 (3/8") 16.0 (5/8") 20.0 (13/16") 25.0 (1") 30.0 (1-3/16") 35.0 (1-3/8") 40.0 (1-9/16")	3.7 ~ 6.2 (0.15 ~ 0.24") 9.7 ~ 31.2 (0.38 ~ 1.23") 13.7 ~ 16.2 (0.54 ~ 0.64") 18.7 ~ 21.2 (0.74 ~ 0.83") 23.7 ~ 26.2 (0.93 ~ 1.03") 28.7 ~ 31.2 (1.13 ~ 1.23") 33.7 ~ 36.2 (1.33 ~ 1.43")

Dia (d)

Length (L)

Grip Range

4.8 (3/16")

4.9~5.0 (.19~.20)

10.0 (3/8")
16.0 (5/8")
20.0 (13/16")
25.0 (1")
30.0 (1-3/16")
35.0 (1-3/8")
40.0 (1-9/16")

3.7 ~ 6.2 (0.15 ~ 0.24")
9.7 ~ 31.2 (0.38 ~ 1.23")
13.7 ~ 16.2 (0.54 ~ 0.64")
18.7 ~ 21.2 (0.74 ~ 0.83")
23.7 ~ 26.2 (0.93 ~ 1.03")
28.7 ~ 31.2 (1.13 ~ 1.23")
33.7 ~ 36.2 (1.33 ~ 1.43")
