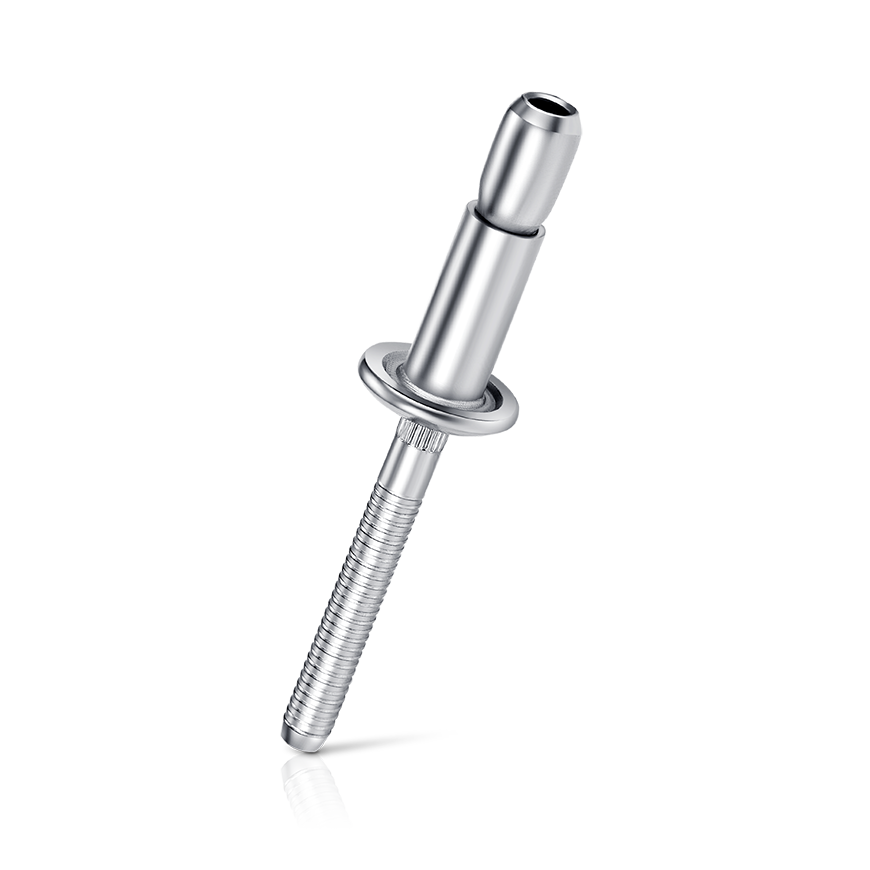

Anlock Blind Rivet In-Bolt

Anlock Blind Rivet In-Bolt

IB

High Vibration Resistance



Anlock Blind Rivets In-Bolt with a multigrip clamping range and a high tensile and shear strength provides a high resistance to vibrations and a good watertight performance.


Application
  • Automotive industry
  • Truck building
  • Containers
  • Construction work
  • Coach work
Materials & Setting

Materials

  • Aluminium Alloy
  • Steel
  • Stainless Steel



Setting



Video
IB Blind Rivet
00m 25s

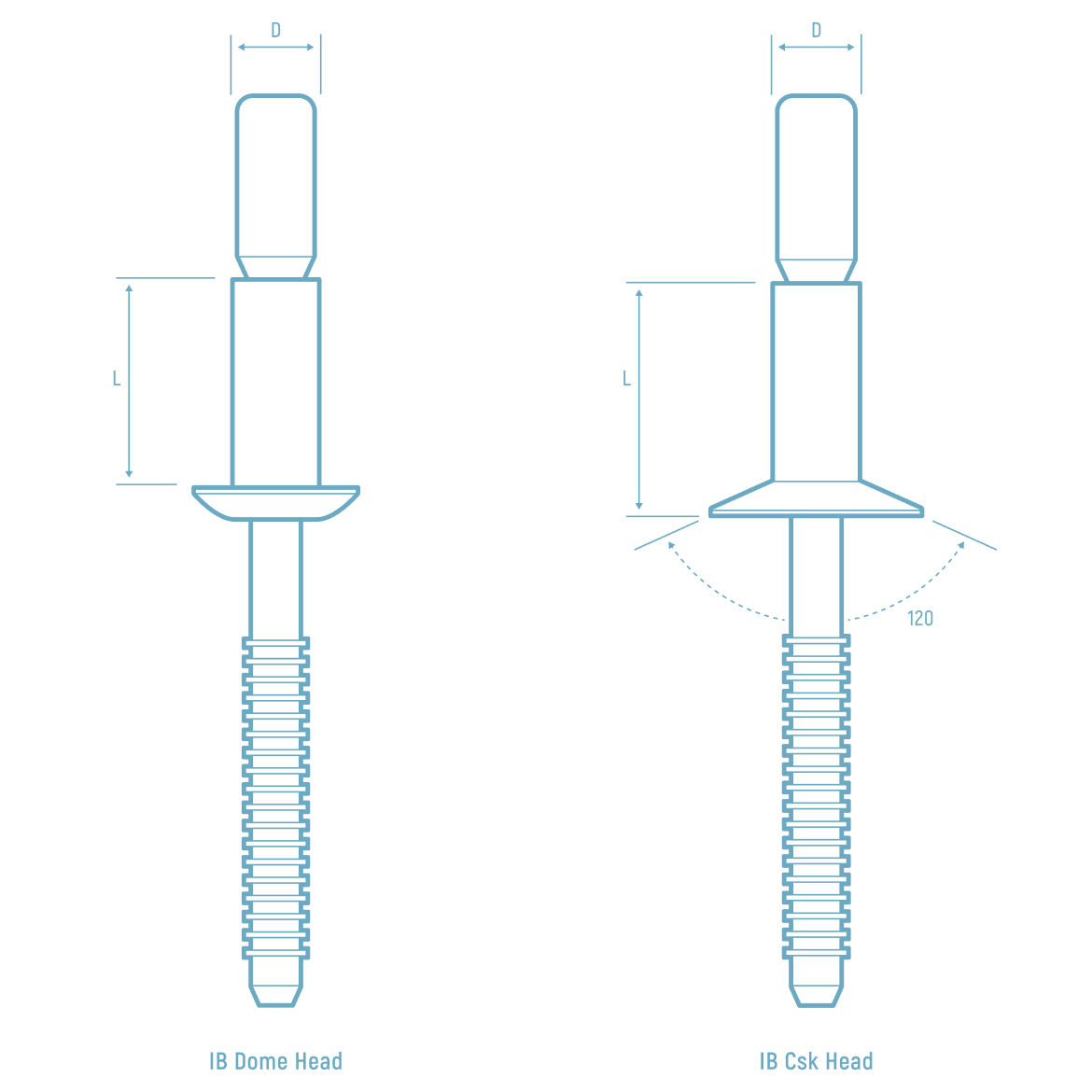

Technical Specification

IB Anlock Blind Rivet In-Bolt



Available Sizes

Diameter (D) Length (L) Grip Range
4.8mm (3/16")
Ø 4.9~5.0 (.19~.20)
10.0mm (3/8") 1.57 ~ 6.86mm (0.06 ~ 0 27")
14.0mm (9/16") 1.57 ~ 11.1mm (0.06 ~ 0 44")
6.4mm (1/4")
Ø 6.5~6.6 (.26~.28)
14.0mm (9/16") 2.03 ~ 9.53mm (0.08 ~ 0 38")
20.0mm (13/16") 2.03 ~ 15.88mm (0.08 ~ 0 63")
Available in Aluminium Alloy, Steel and Stainless Steel



SaveSave

Download Available
Blind Rivets PDF 18.2 Mb

Need help choosing the right blind rivets?

Talk to one of our specialists who can help


Contact us
