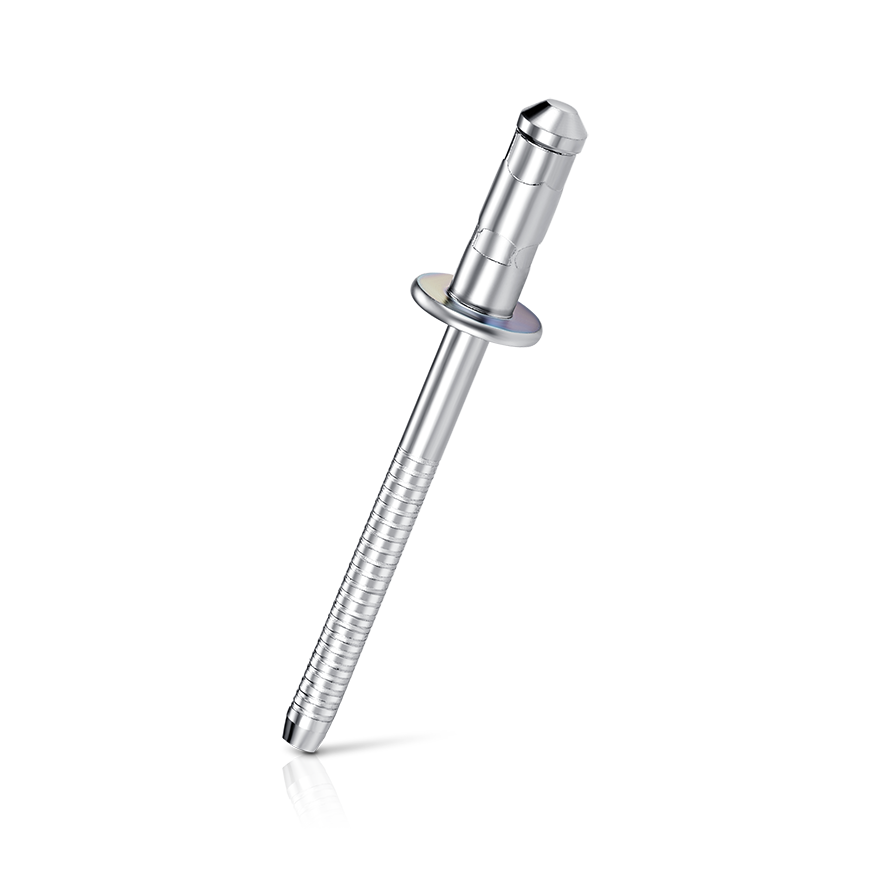

High Strength Blind Rivet HK-Lok

High Strength Blind Rivet HK-Lok

HK

For Thin Sheet Applications



High Strength Blind Rivets provide high strength with a large blind-side footprint for use in thin sheet applications. High clamp-up and excellent mandrel retention ensures a vibration resistant joint.





Features
  • Locked, rattle free mandrel
  • Superior shear and tensile strength, soft and brittle materials inclusive
  • Provides excellent integrity
  • Fills irregular holes



Application
  • Automotive industry
  • Truck building
  • Construction work
  • Coach work



Materials & Setting

Materials

  • Steel
  • Stainless Steel

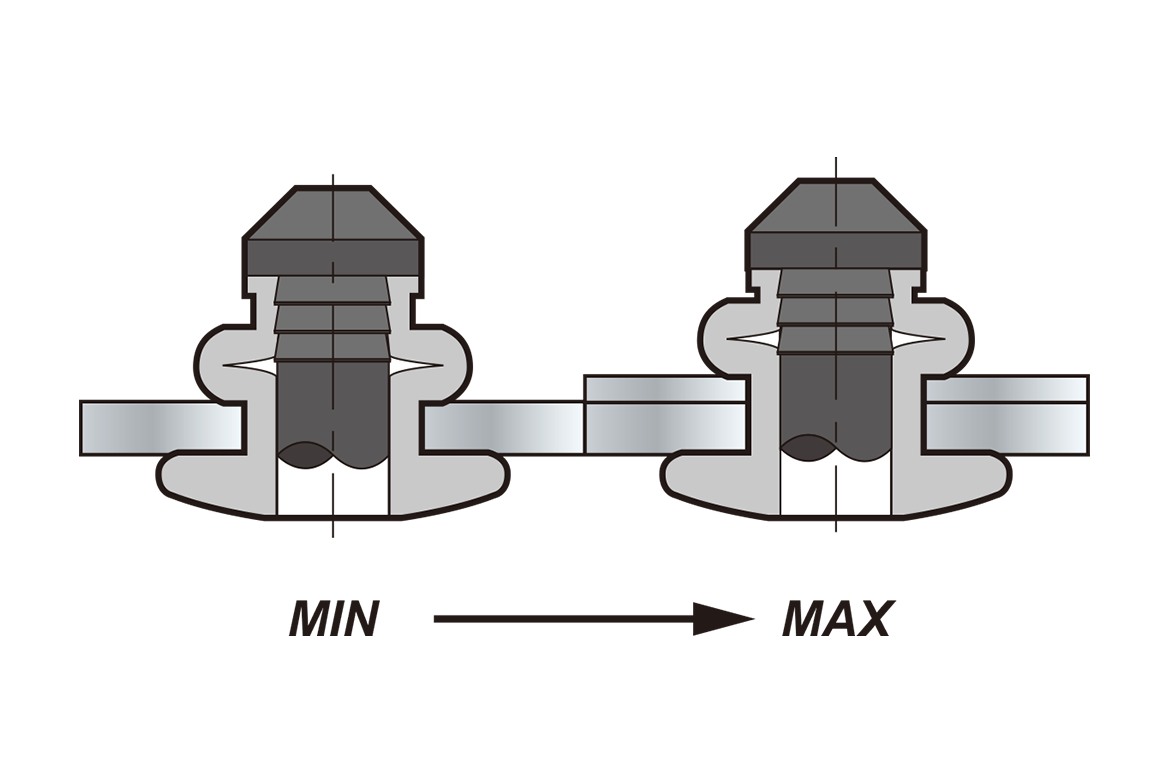

Setting



Video
HK Blind Rivet
00m 25s
Technical Specification

HK High Strength Blind Rivet HK-Lok

Available Sizes

Diameter (D) Length (L) Grip Range
3.2mm (1/8")
Ø 3.3~3.4 (.13)
7.0mm (9/32") 1.0 - 3.0mm (0.04 - 0.12")
9.0mm (11/32") 3.0 - 5.0mm (0.12 - 0.20")
11.0mm (7/16") 5.0 - 7.0mm (0.20 - 0.28")
4.0mm (5/32")
Ø 4.1~4.2 (.16)
8.0mm (5/16") 1.0 - 3.0mm (0.04 - 0.12")
10.0mm (3/10") 3.0 - 5.0mm (0.12 - 0.20")
12.0mm (15/32") 5.0 - 7.0mm (0.20 - 0.28")
14.5mm (9/16") 7.0 - 9.0 (0.28 - 0.35)
4.8mm (3/16")
Ø 4.9~5.0 (.19~.20)
9.5mm (3/8") 1.5 - 3.5mm (0.06 - 0.14")
12.0mm (15/32") 3.5 - 6.0mm (0.14 - 0.24")
14.5mm (9/16") 6.0 - 8.5mm (0.24 - 0.33")
