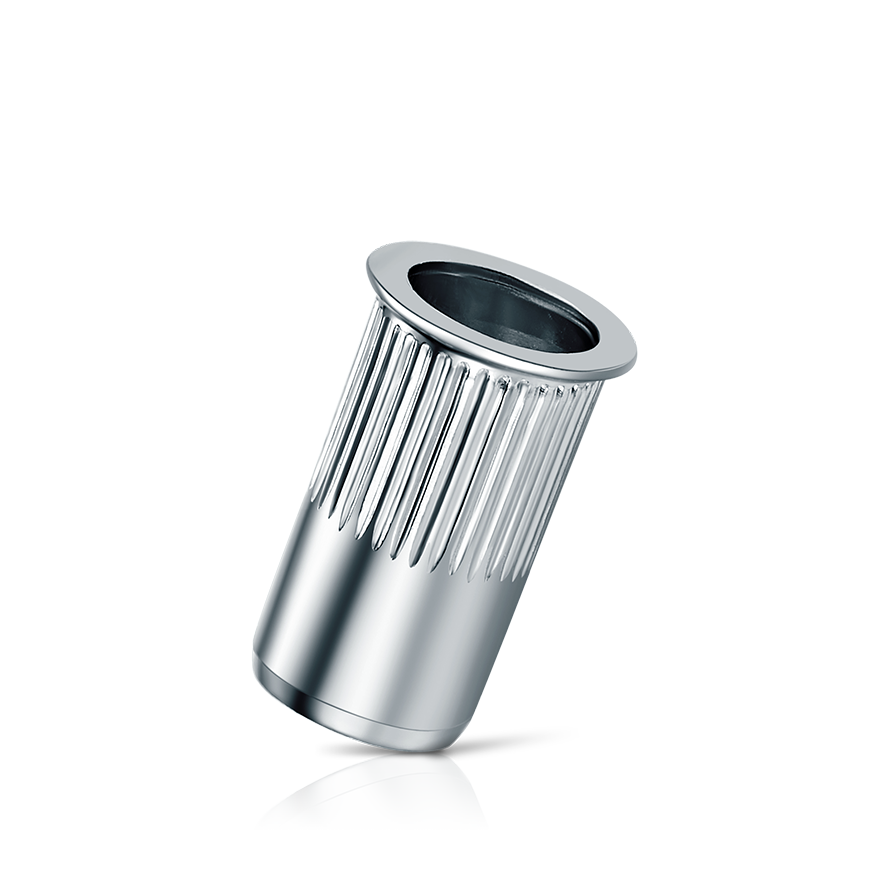

Reduced Head / Round Body with Knurls / Open-End

Reduced Head / Round Body with Knurls / Open-End

Product Features

Near-flush installations



Knurled body for high torque applications. Allows near-flush installations with no need for special hole preparations.


Application
  • For areas where high strength of turning is required
Materials & Setting

Materials

  • Steel
  • Stainless Steel



Setting



Video
Rivet Nuts
03m 01s
Technical Specification

Reduced Head / Round+Knurls / Open-End



Measurements (mm)

Dia (d) Length (L) Hole Dia Grip Range (e) dk do
M4 11.0
12.0		 6.1
(.240)		 0.5 - 2.5
2.5 - 3.5		 0.5
(.020)		 7.0
(.276)
M5 12.0
13.0		 7.1
(.280)		 0.5 - 2.5
2.5 - 3.5		 0.6
(.023)		 8.0
(.315)
M6 14.0
15.5		 9.1
(.358)		 0.5 - 2.5
2.5 - 4.0		 0.6
(.023)		 10.0
(.394)
M8 17.0
18.5		 11.1
(.437)		 1.0 - 2.5
2.5 - 4.0		 0.8
(.031)		 12.0
(.472)
