Flat Head / Hexagon Body / Open-End
The strongest anti-slip force
Not easily detached
With higher resistance to being pushed in

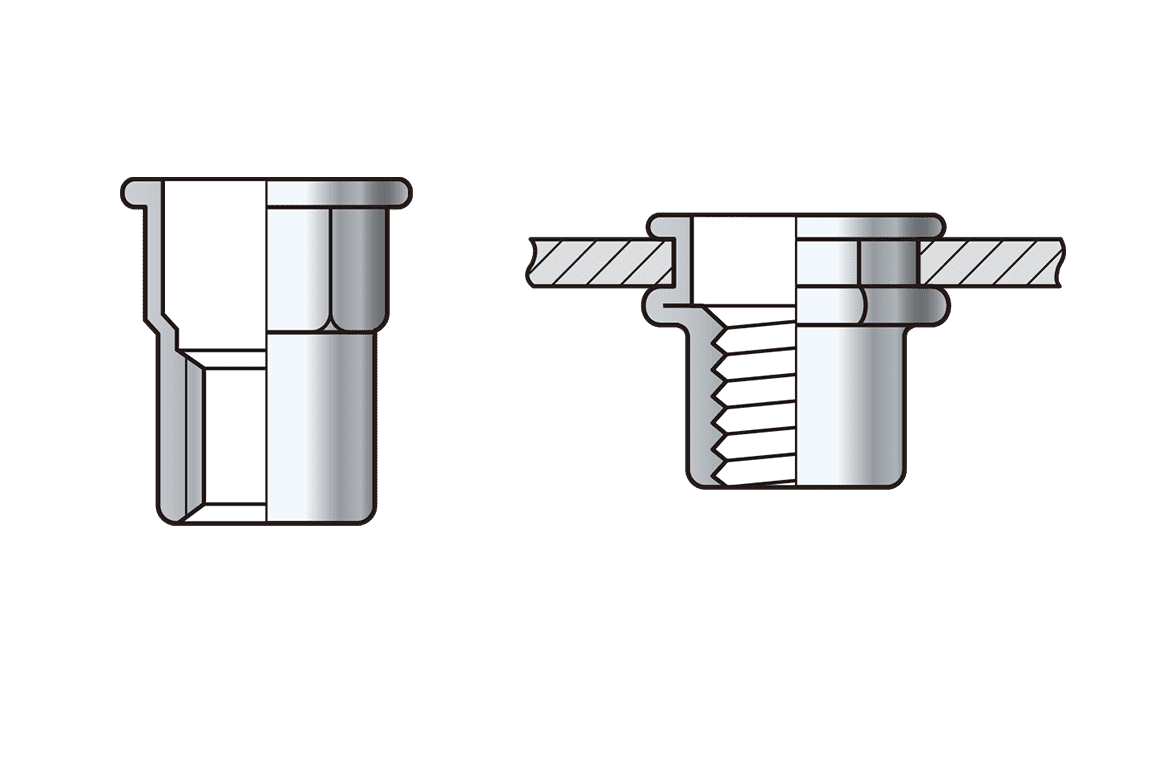

External hexagonal shape and an internal circular design. The diagonal wall thickness of the hexagon is thicker than that of the semi-hexagon series. Coupled with a larger flange and a flat head structure, it is not easily detached and has a higher resistance to being pushed in.
Application & Setting
The anti-slip force of the full hexagonal nut is more than twice that of the external hexagon, internal hexagon, and semi-hexagon nuts.
- High torque, less likely to strip threads
- Screw length can be deformed/li>
- High locking ability
- Suitable for a wide range of materials and thicknesses
- Assembly requires a corresponding hexagonal hole
- Suitable for areas requiring high-strength turning
High anti-rotation torque, thicker wall, assembly force on the higher side.
Flat Head / Hexagon Body / Open-End
Rivet Nuts
Uploaded 07/07/2023
|
PATTA Marketing
External hexagonal shape and an internal circular design. The diagonal wall thickness of the hexagon is thicker than that of the semi-hexagon series. Coupled with a larger flange and a flat head structure, it is not easily detached and has a higher resistance to being pushed in.
Technical Specifications
NUT Available Sizes
| Diameter (D) | Length (L) | Hole Diameter | Grip Range (e) | DK | DO |
|---|---|---|---|---|---|
| M4 | 11.3 12.5 | 6.1 | 0.5 - 2.5 2.5 - 3.5 | 0.8 | 9.3 |
| M5 | 12.5 13.5 | 7.1 | 0.5 - 2.5 2.5 - 3.5 | 1.0 | 10.3 |
| M6 | 15.0 16.5 | 9.1 | 0.5 - 2.5 2.5 - 4.0 | 1.5 | 12.3 |
| M8 | 17.0 18.5 | 11.1 | 1.0 - 2.5 2.5 - 4.0 | 1.5 | 14.3 |
| Diameter (D) | Length (L) | Hole Diameter | Grip Range (e) | DK | DO |
|---|---|---|---|---|---|
| M4 | 0.445 0.492 | 0.240 | 0.020 - 0.098 0.098 - 0.138 | 0.031 | 0.366 |
| M5 | 0.492 0.531 | 0.280 | 0.020 - 0.098 0.098 - 0.138 | 0.039 | 0.408 |
| M6 | 0.590 0.650 | 0.358 | 0.020 - 0.098 0.098 - 0.157 | 0.059 | 0.484 |
| M8 | 0.669 0.728 | 0.437 | 0.039 - 0.098 0.098 - 0.157 | 0.059 | 0.563 |
