Flat Head / Round Body with Knurls / Open-End
Suitable for softer materials
High anti-slip strength
Strong resistance to push-in forces
The flat head knurled design allows for a large area to grip the plate during assembly, enhancing the anti-slip performance of the full round cap. The larger flange and flat head structure contribute to higher resistance against push-in forces.

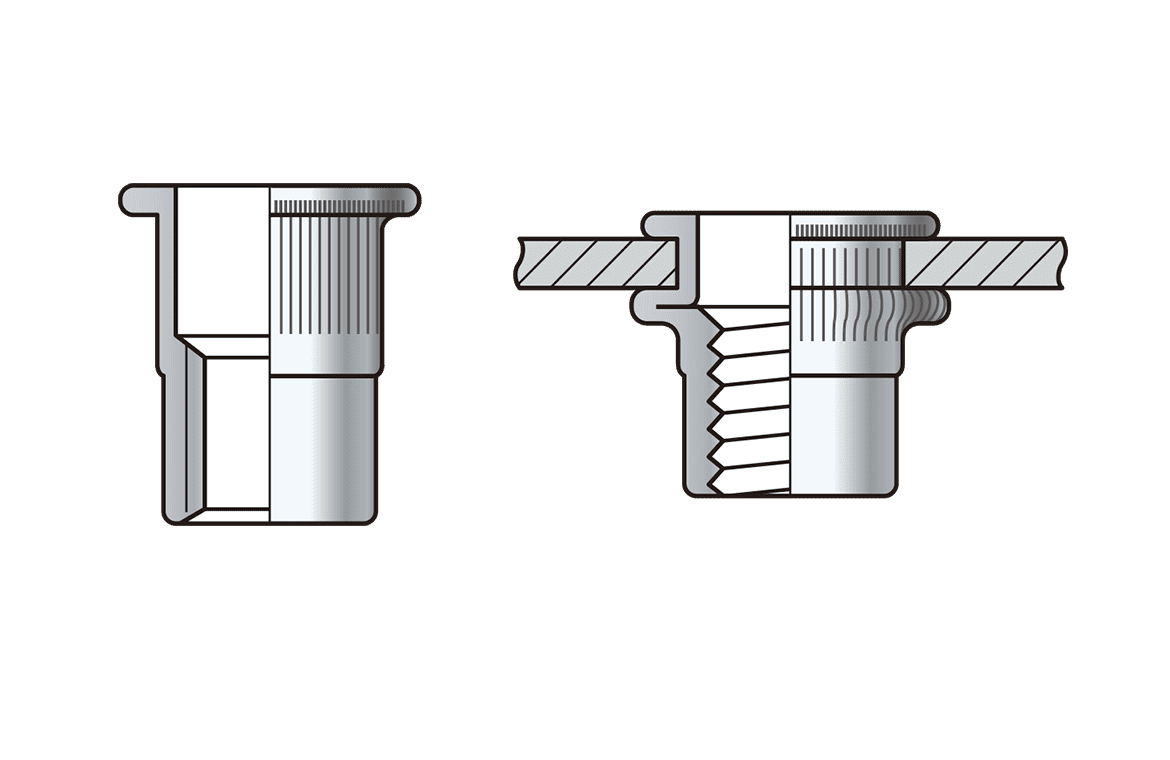

Application & Setting
The anti-slip force is more than twice that of the full round cap.
- High clamping force
- Provides significant anti-slip force when assembled on softer materials
- Suitable for soft materials like aluminum and plastics
The knurled nut is the most widely used cap type in the world.
Flat Head / Round Body with Knurls / Open-End
Rivet Nuts
Uploaded 07/07/2023
|
PATTA Marketing
The flat head knurled design allows for a large area to grip the plate during assembly, enhancing the anti-slip performance of the full round cap. The larger flange and flat head structure contribute to higher resistance against push-in forces.
Technical Specifications
NUT Available Sizes
| Diameter (D) | Length (L) | Hole Diameter | Grip Range (E) | DK | DO |
|---|---|---|---|---|---|
| M4 | 11.3 12.5 | 6.1 | 0.5 - 2.5 2.5 - 3.5 | 0.8 | 9.3 |
| M5 | 12.5 13.5 | 7.1 | 0.5 - 2.5 2.5 - 3.5 | 1.0 | 10.3 |
| M6 | 15.0 16.5 | 9.1 | 0.5 - 2.5 2.5 - 4.0 | 1.5 | 12.3 |
| M8 | 17.0 18.5 | 11.1 | 1.0 - 2.5 2.5 - 4.0 | 1.5 | 14.3 |
| Diameter (D) | Length (L) | Hole Diameter | Grip Range (E) | DK | DO |
|---|---|---|---|---|---|
| M4 | 0.445 0.492 | 0.24 | 0.020 - 0.098 0.098 - 0.138 | 0.031 | 0.366 |
| M5 | 0.492 0.531 | 0.28 | 0.020 - 0.098 0.098 - 0.138 | 0.039 | 0.408 |
| M6 | 0.590 0.650 | 0.358 | 0.020 - 0.098 0.098 - 0.157 | 0.059 | 0.484 |
| M8 | 0.669 0.728 | 0.437 | 0.039 - 0.098 0.098 - 0.157 | 0.059 | 0.563 |
