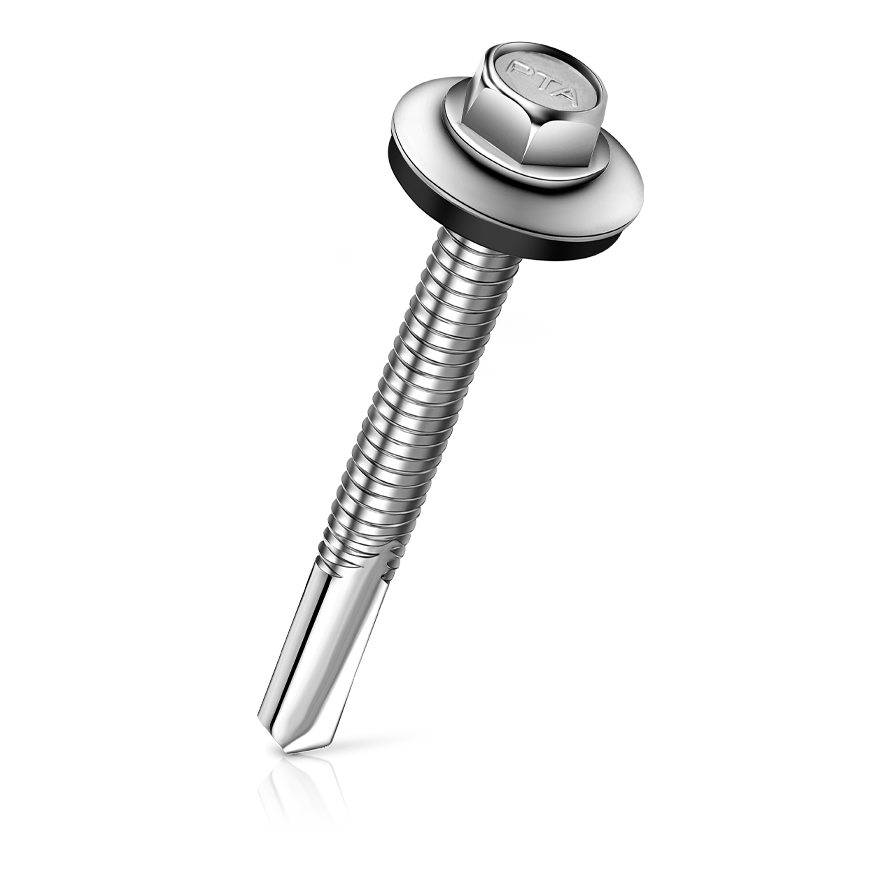

Hex Washer Head

Hex Washer Head

PATEK

Product Features

Steel to Steel Applications



HWH screws have a built in washer to help distribute load to a wider area. This heavy duty screw is ideal for steel to steel applications.

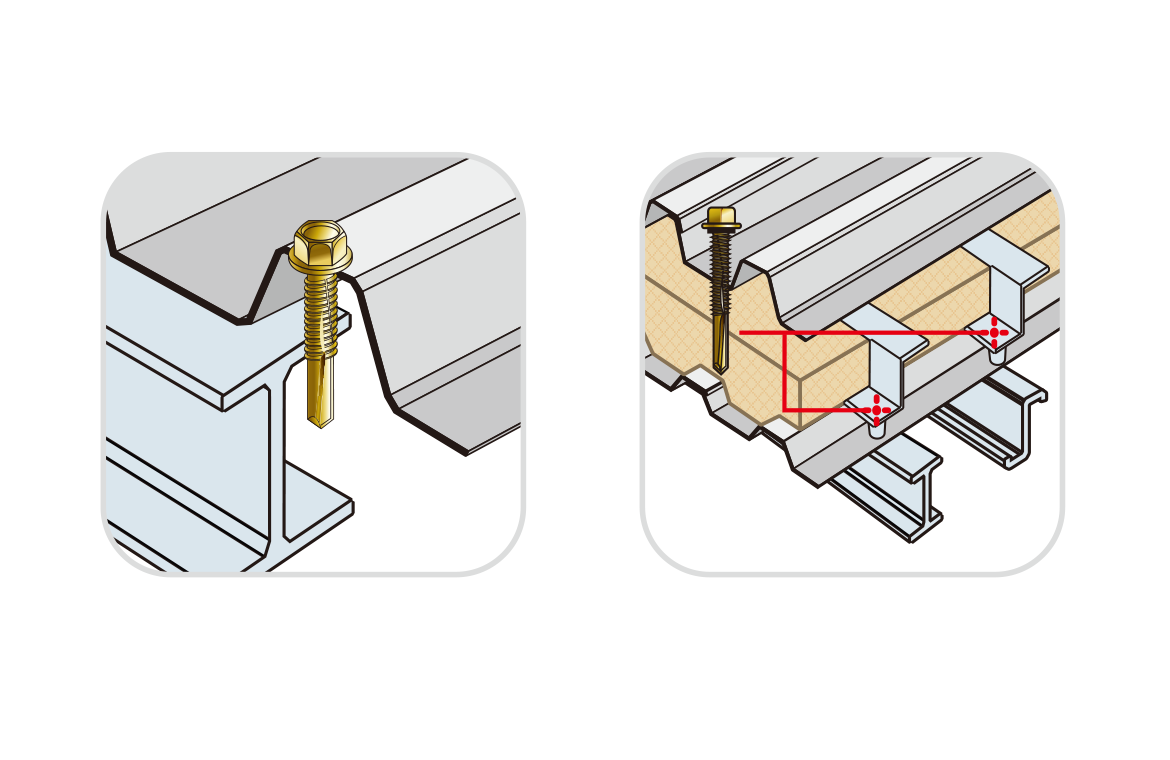

Applications

  • For heavy duty purposes
  • Metal deck to structural steel or bar joist
  • Clip to structural or bar joist
  • Longer length fasteners for sheet applications





Video
Hex Washer Head
00m 32s
Technical Specification

PATEK Hex Washer Head










Measurements (mm)

Dia (d) Length (L) Drill Point Drill Capacity
5.5 32 #5 12.0

5.5

38 #5 12.0

5.5

50 #5 12.0

5.5

63 #5 12.0

5.5

75 #5 12.0

Need help choosing the right self drilling screws?

Talk to one of our specialists who can help


Contact us
