Bugle Head

Bugle Head

Product Features

Improved Stress Distribution

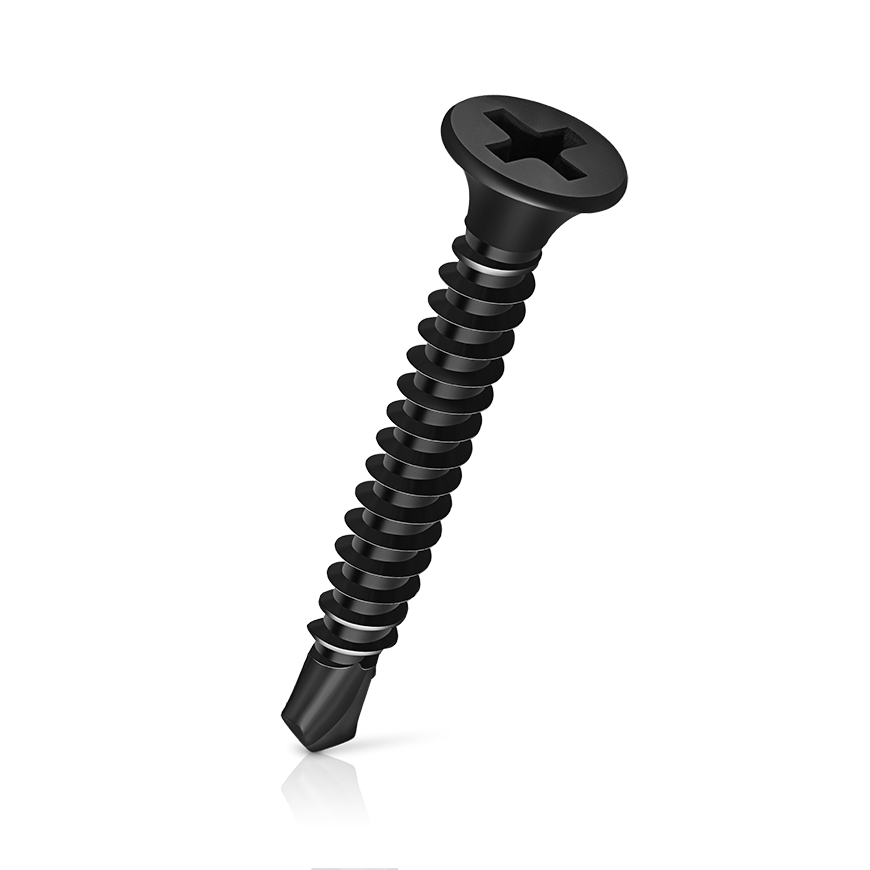

Bugle head screws feature a countersunk head with a flat top and a concave under-head bearing surface. This special design enables the distribution of the bearing stress over a much wider area than is possible with a flat head screw.

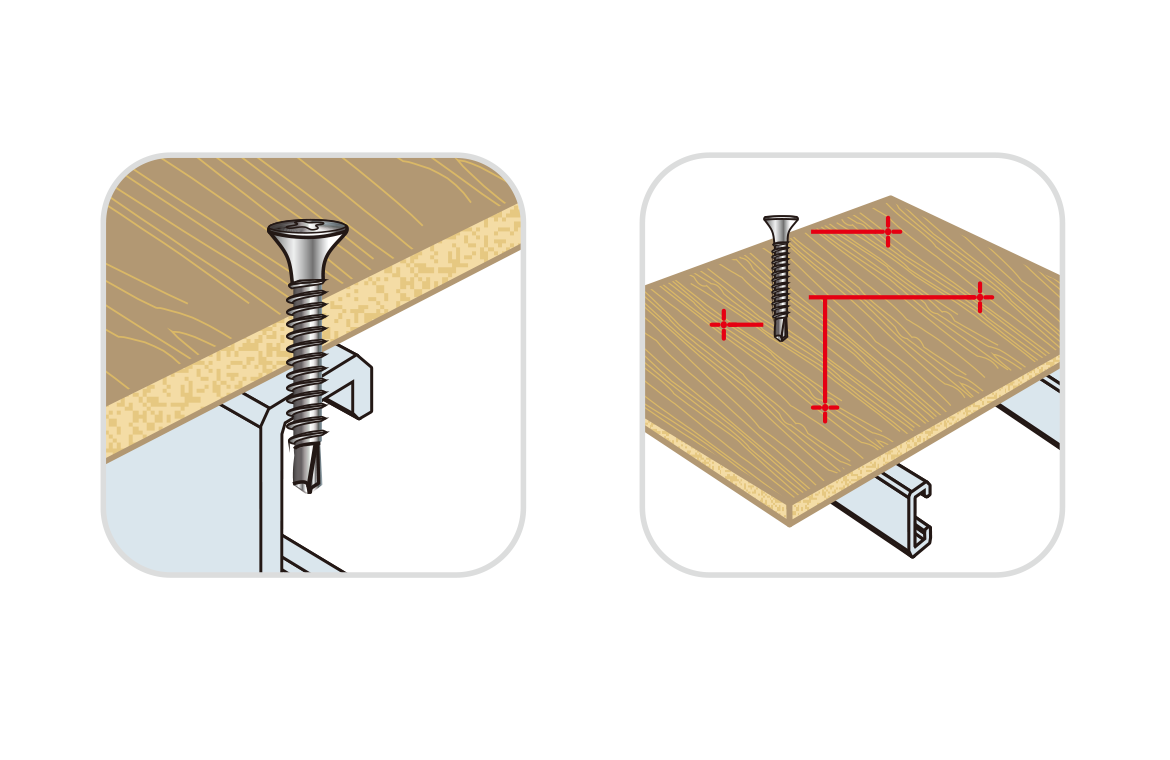

Application
  • Use for stitching wood to metal
  • Use in flat surfaces
  • Use in pre-drilled hole for fitting



Video
Bugle Head
00m 44s
Technical Specification

Bugle Head

Measurements (mm)

Dia (d) Length (L) Drill Point Drill Capacity
3.5 25 #2 0.5 - 1.0

3.5

28 #2

0.5 - 1.0

3.5

32 #2

0.5 - 1.0

3.5

41 #2

0.5 - 1.0

3.5

50 #2

0.5 - 1.0

4.2 25 #2 1.0 - 2.0

4.2

32 #2

1.0 - 2.0

4.2

50 #2

1.0 - 2.0

4.2

60 #2

1.0 - 2.0

4.2

65 #2

1.0 - 2.0

4.2

75 #2

1.0 - 2.0
