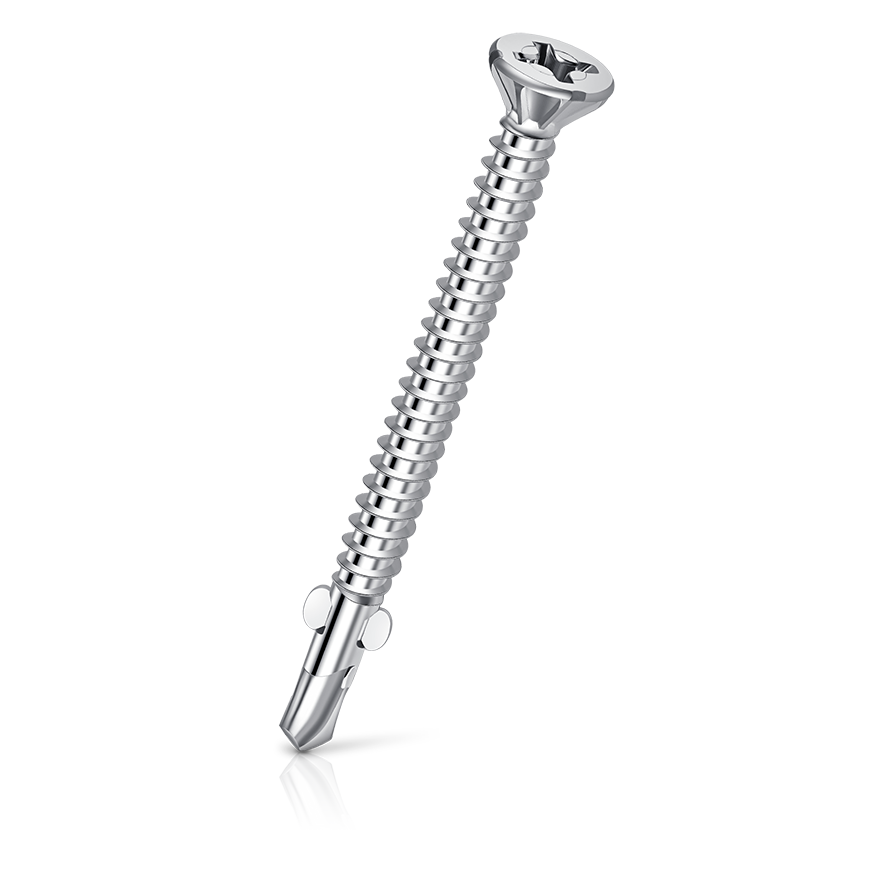

Countersunk Wings

Large bearing surface
Ideal for plywood
Flat head design for flush finish

Product Features

For Fixing Wood to Steel

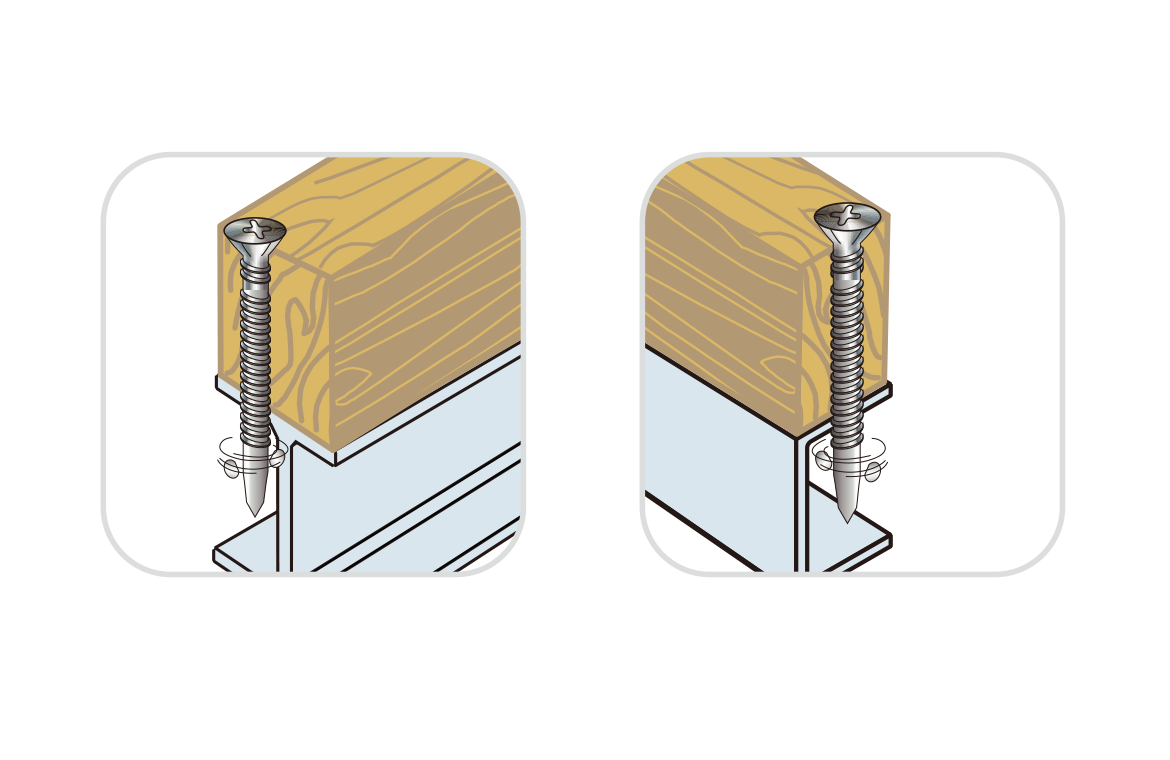

Countersunk Wing is ideal for fixing wood to steel sections. The Wings drill a clearance hole through the wood, then break off as the cutting point bites into the steel.

Application

For wood mansard to steel frames
For plywood facias to steel frames
For plywood roof and floor sheets to steel frames

Video

Countersunk Wings

00m 30s

Technical Specification

Countersunk Wings

Measurements (mm)

Dia (d)	Length (L)	Drill Point	Drill Capacity
3.5	10	#2	0.5 - 1.0
3.5	13	#2	0.5 - 1.0
3.5	16	#2	0.5 - 1.0
3.5	19	#2	0.5 - 1.0
3.5	25	#2	0.5 - 1.0
4.2	13	#2	1.0 - 2.0
4.2	16	#2	1.0 - 2.0
4.2	19	#2	1.0 - 2.0
4.2	25	#2	1.0 - 2.0
4.8	13	#2	1.0 - 2.0
4.8	16	#2	1.0 - 2.0
4.8	19	#2	1.0 - 2.0
4.8	25	#2	1.0 - 2.0
4.8	32	#2	1.0 - 2.0
4.8	38	#2	1.0 - 2.0
