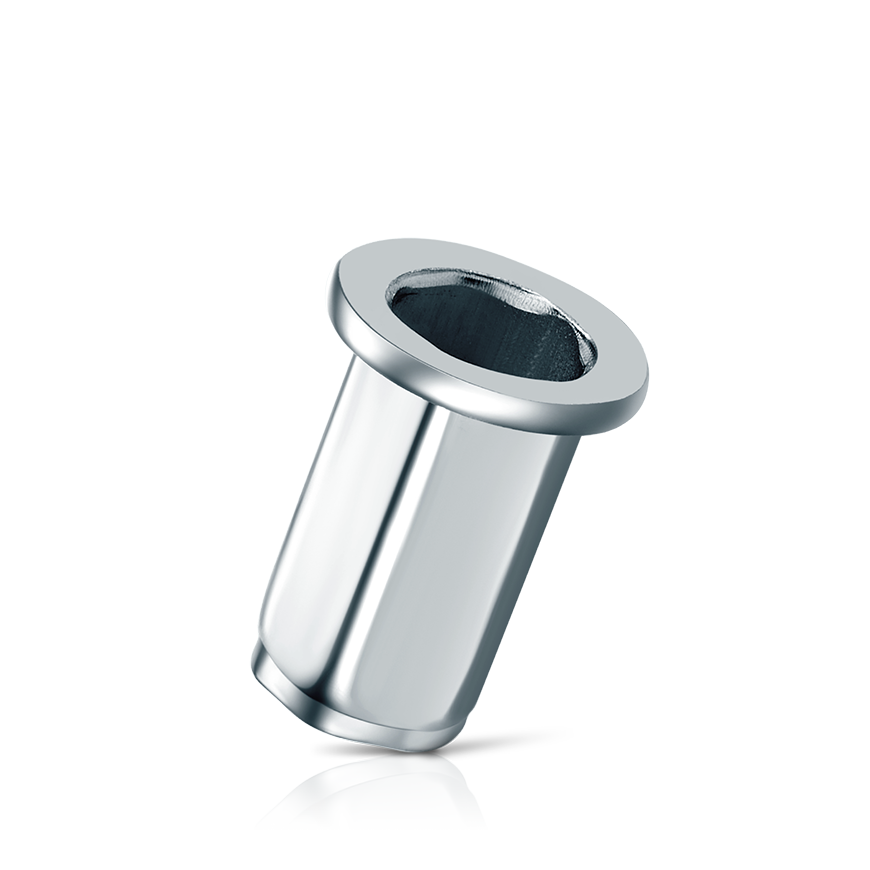

Flat Head / Hexagon Body / Open-End

Flat Head / Hexagon Body / Open-End

Product Features

High torque applications



Full hex feature for high torque applications. Flat head design for high load applications.


Application
  • For areas where high strength of turning is required
Materials & Setting

Materials

  • Steel
  • Stainless Steel



Setting



Video
Rivet Nuts
03m 01s
Technical Specification

Flat Head / Hexagon / Open-End



Measurements (mm)

Dia (d) Length (L) Hole Dia Grip Range (e) dk do
M4 11.3
12.5		 6.1
(.240)		 0.5 - 2.5
2.5 - 3.5		 0.8
(.031)		 9.3
(.366)
M5 12.5
13.5		 7.1
(.280)		 0.5 - 2.5
2.5 - 3.5		 1.0
(.039)		 10.3
(.408)
M6 15.0
16.5		 9.1
(.358)		 0.5 - 2.5
2.5 - 4.0		 1.5
(.059)		 12.3
(.484)
M8 17.0
18.5		 11.1
(.437)		 1.0 - 2.5
2.5 - 4.0		 1.5
(.059)		 14.3
(.563)
