封閉型拉釘

封閉型拉釘

SE

產品功能

防水氣密

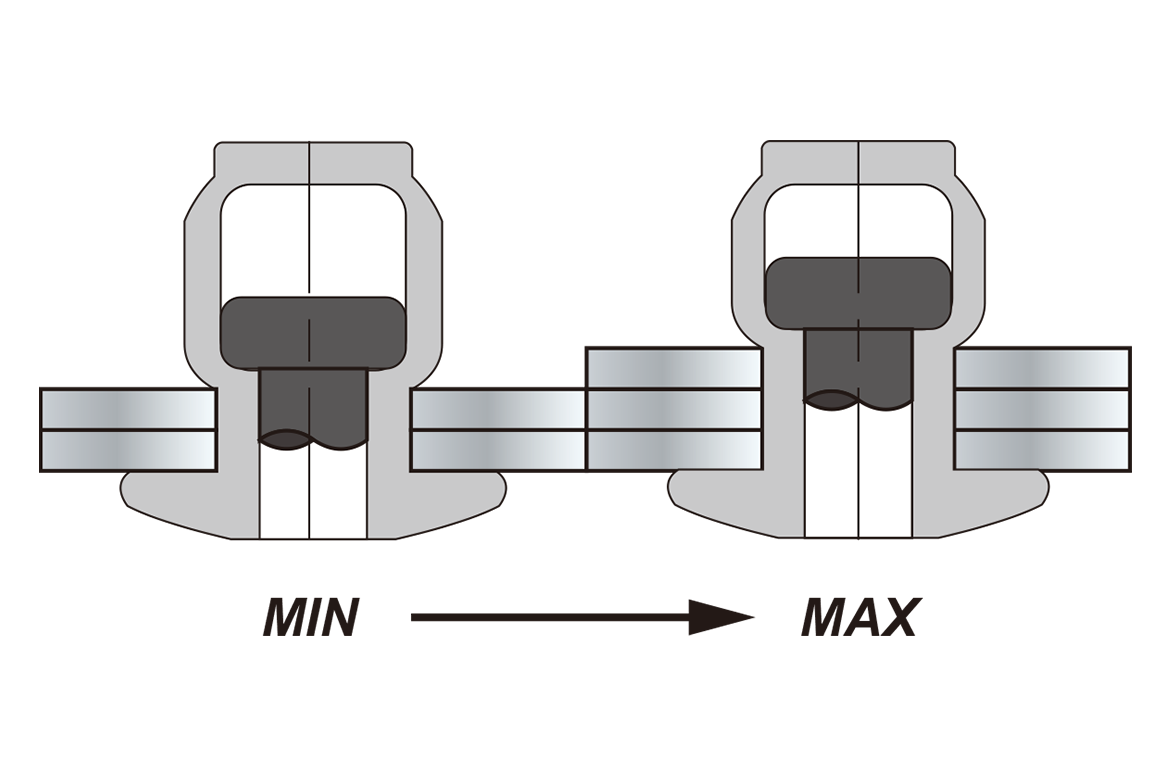

封閉型拉釘提供堅固和高品質的緊固孔


應用
  • 車箱作業
  • 貨櫃
  • 空調
  • 造船業和內層
材料與設置

物料

  • 鋁鐵
  • 銅鐵
  • 不銹鋼

設置



影片
封閉型拉釘
00分 29秒
技術規範

封閉型拉釘



尺寸 - 鋁/鋼
直徑 (d) 長度 (L) 握力範圍

3.2 (1/8")

3.3~3.4 (.13)

6.5 (1/4")
8.0 (5/16")
9.5 (3/8")
11.0 (7/16")
12.5 (1/2")
0.5 - 2.0 (0.02 - 0.08")
2.0 - 3.5 (0.08 - 0.14")
3.5 - 5.0 (0.14 - 0.20")
5.0 - 6.5 (0.20 - 0.26")
6.5 - 8.0 (0.26 - 0.31")

4.0 (5.32")

4.1~4.2 (.16)

8.0 (5/16")
9.5 (3/8")
11.0 (7/16")
12.5 (1/2")
14.5 (9/16")

0.5 - 3.5 (0.02 - 0.14")
3.5 - 5.0 (0.14 - 0.20")
5.0 - 6.0 (0.20 - 0.24")
6.5 - 8.0 (0.26 - 0.31")
8.0 - 10.0 (0.31 - 0.39")

4.8 (3/16")

4.9~5.0 (.19)

8.5 (5/16")
9.5 (3/8")
11.0 (7/16")
13.0 (1/2")
14.5 (9/16")
16.0 (5/8")
18.0 (11/16")
21.0 (13/16")
25.0 (1")
0.5 - 3.5 (0.02 - 0.14")
3.5 - 5.0 (0.14 - 0.20")
5.0 - 6.0 (0.20 - 0.24")
6.5 - 8.0 (0.26 - 0.31")
8.0 - 9.5 (0.31 - 0.37")
9.5 - 11.0 (0.37 - 0.43")
11.0 - 13.0 (0.43 - 0.51")
13.0 - 16.0 (0.51 - 0.63")
16.0 - 20.0 (0.63 - 0.79")
尺寸 - 銅/鋼
直徑 (d) 長度 (L) 握力範圍

3.2 (1/8")

3.3~3.4 (.13)

6.5 (1/4")
8.0 (5/16")
9.5 (3/8")
11.0 (7/16")
12.5 (1/2")
0.5 - 2.0 (0.02 - 0.08")
2.0 - 3.5 (0.08 - 0.14")
3.5 - 5.0 (0.14 - 0.20")
5.0 - 6.5 (0.20 - 0.26")
6.5 - 8.0 (0.26 - 0.31")

4.0 (5.32")

4.1~4.2 (.16)

8.0 (5/16")
9.5 (3/8")
11.0 (7/16")
12.5 (1/2")
14.5 (9/16")

0.5 - 3.5 (0.02 - 0.14")
3.5 - 5.0 (0.14 - 0.20")
5.0 - 6.0 (0.20 - 0.24")
6.5 - 8.0 (0.26 - 0.31")
8.0 - 10.0 (0.31 - 0.39")

4.8 (3/16")

4.9~5.0 (.19)

8.5 (5/16")
9.5 (3/8")
11.0 (7/16")
13.0 (1/2")
14.5 (9/16")
16.0 (5/8")
18.0 (11/16")
21.0 (13/16")
25.0 (1")
0.5 - 3.5 (0.02 - 0.14")
3.5 - 5.0 (0.14 - 0.20")
5.0 - 6.0 (0.20 - 0.24")
6.5 - 8.0 (0.26 - 0.31")
8.0 - 9.5 (0.31 - 0.37")
9.5 - 11.0 (0.37 - 0.43")
11.0 - 13.0 (0.43 - 0.51")
13.0 - 16.0 (0.51 - 0.63")
16.0 - 20.0 (0.63 - 0.79")
尺寸 - 不銹鋼
直徑 (d) 長度 (L) 握力範圍

3.2 (1/8")

3.3~3.4 (.13)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")

0.5 - 1.5 (0.02 - 0.06")
1.5 - 3.0 (0.06 - 0.12")
3.0 - 5.0 (0.12 - 0.20")
5.0 - 6.5 (0.20 - 0.26")
6.5 - 8.0 (0.26 - 0.31")

4.0 (5.32")

4.1~4.2 (.16)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")

0.5 - 1.5 (0.02 - 0.06")
1.5 - 3.0 (0.06 - 0.12")
3.0 - 5.0 (0.12 - 0.20")
5.0 - 6.5 (0.20 - 0.24")
6.5 - 8.0 (0.24 - 0.31")
8.0 - 11.0 (0.31 - 0.43")

4.8 (3/16")

4.9~5.0 (.19)

8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
16.0 (5/8")
20.0 (13/16")
0.5 - 3.0 (0.02 - 0.12")
3.0 - 5.0 (0.12 - 0.20")
5.0 - 6.5 (0.20 - 0.26")
6.5 - 9.0 (0.26 - 0.35")
9.0 - 12.0 (0.35 - 0.47")
