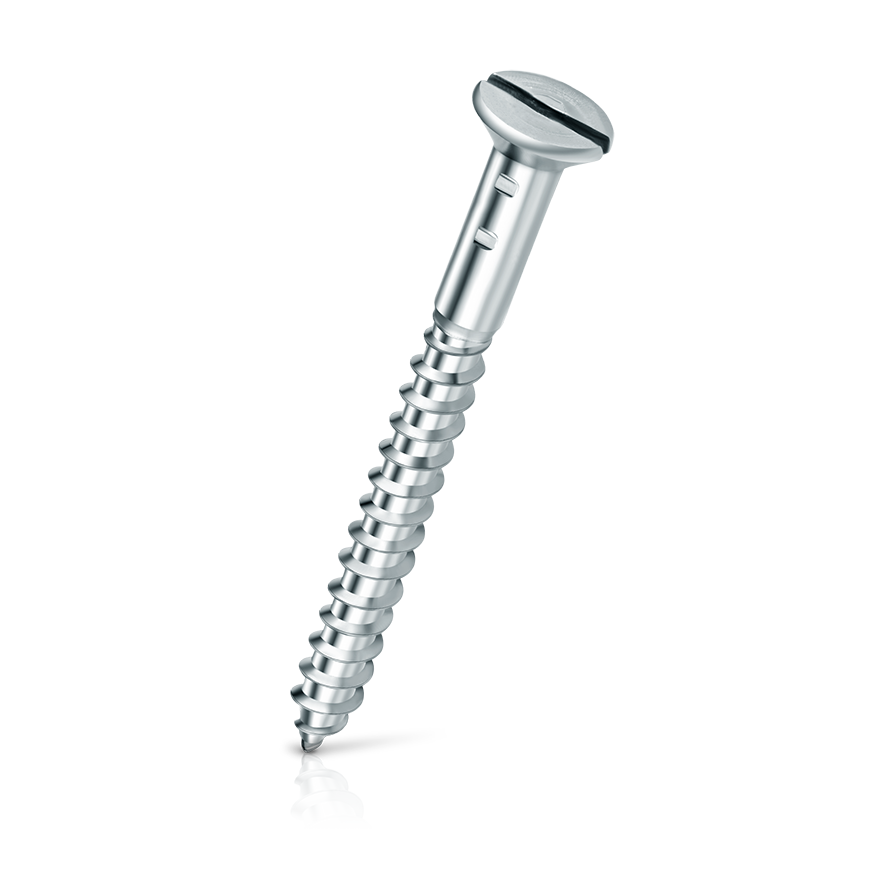

Flat Head Wood Screw

Flat Head Wood Screw

DIN 97

Product Features

Threadless Shank



Wood Screws have a coarser pitch than sheet metal or machine screws, and often have an unthreaded shank. The threadless shank allows the top piece of wood to be pulled flush against the under piece without getting caught on the threads.


Technical Specification

DIN 97 Wood Screw



Measurements

d dk k n
M4 7.05 - 7.95 2.2 1.06 - 1.20
M5 8.75 - 9.65 2.5 1.26 - 1.51
M6 10.45 - 11.55 3.0 1.66 - 1.91
Sizes (mm)
M4 M5 M6
16 16 25
20 20 30
25 25 35
30 30 40
35 35 45
40 40 50
45 45 60
50 50 70
60 60 80
  70 90
  80
