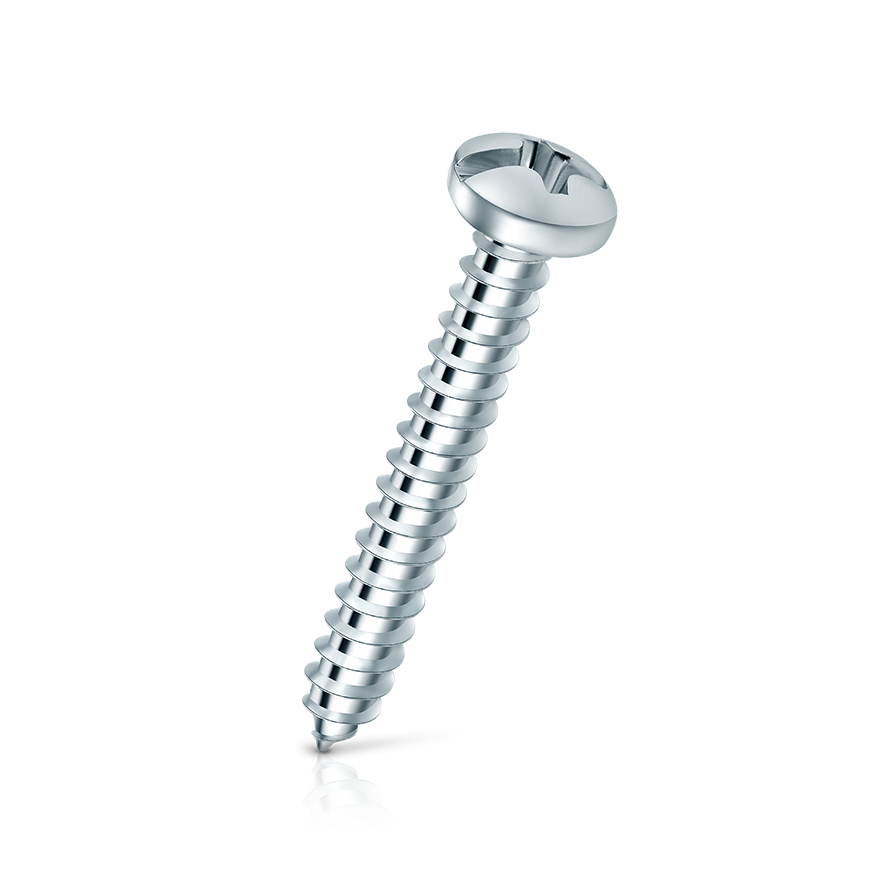

Pan Head Screw

Pan Head Screw

DIN 7981
Technical Specification

DIN 7981 Pan Head



Measurements

d dk (max) k n(min)
M2.9 5.6 1.50 - 1.75 0.86
M3.5 6.9 1.85 - 2.10 1.06
M3.9 7.5 2.00 - 2.25 1.06
M4.2 8.2 2.15 - 2.45 1.26
M4.8 9.5 2.50 - 2.80 1.26
M5.5 10.8 2.85 - 3.20 1.66
M6.3 12.5 3.30 - 3.65 1.66
