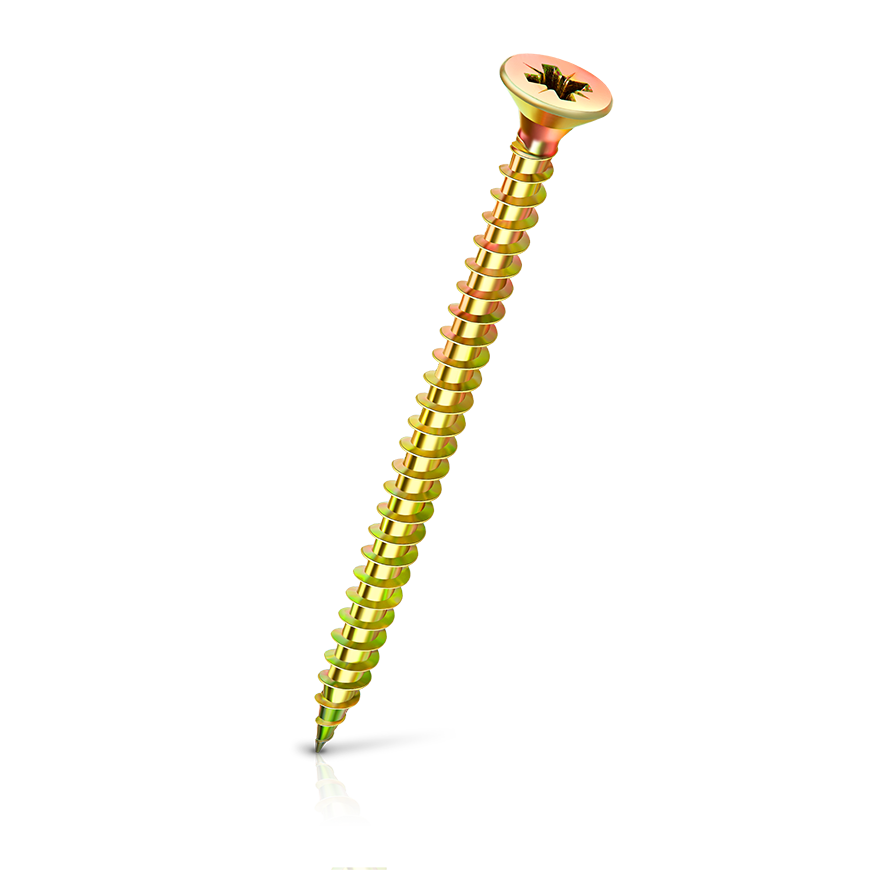

Chipboard Screws

Chipboard Screws

Product Features

Perfectly Flush Finish



Fix chipboard sheets and other soft material to timber with a flush finish. Featured countersunk head with ribs on underside. The ribbed head is a good help to remove the chipboard particles to sink the head flush.


Technical Specification

Chipboard Screws



Measurements (mm)

d dk (max) k z p
M3 5.9 3.20 1 1.35
M3.5 6.9 3.60 2 1.60
M4 7.9 4.25 2 1.80
M4.5 8.9 4.60 2 2.10
M5 9.9 5.20 2 2.20
M6 11.9 6.00 3 2.60
Size (mm)
M3 M3.5 M4 M4.5 M5 M6
12 12 16 20 25 25
16 16 20 25 30 30
18 20 25 30 35 35
20 25 30 35 40 40
25 30 35 40 45 45
30 35 40 45 50 50
35 40 50 50 60 60
40 45 60 60 70 70
  50 70 70 80 80
    80     90
          100
          110
