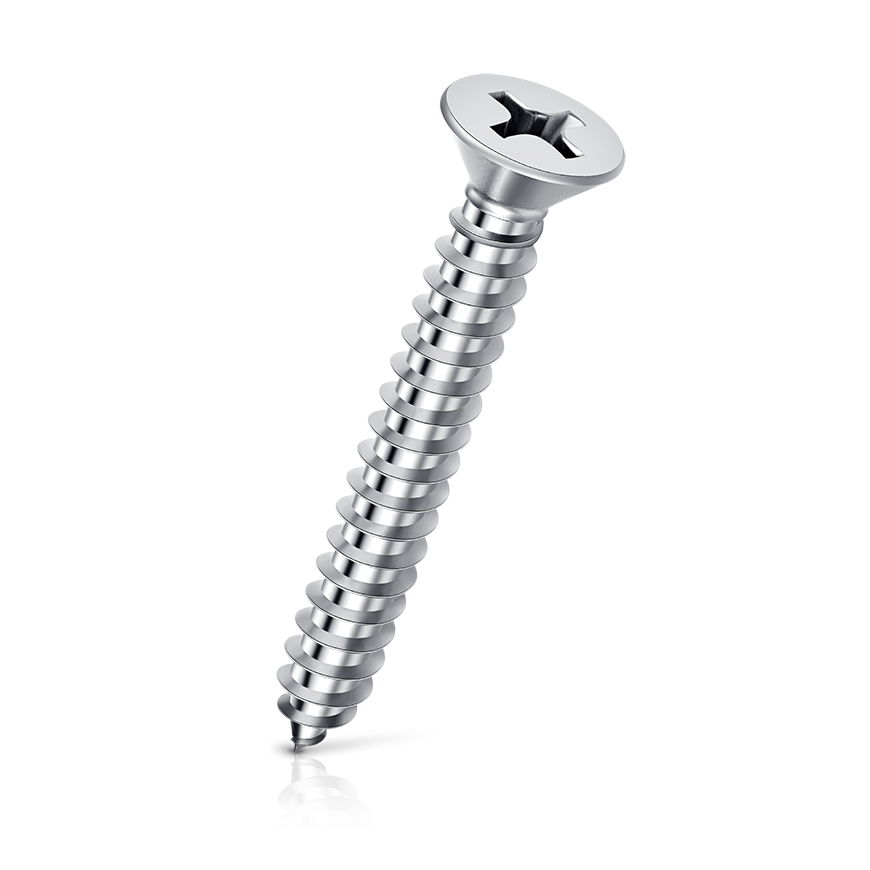

Flat Head Screw

Flat Head Screw

DIN 7982
Technical Specification

DIN 7982 Flat Head



Measurements

d dk (max) k H
M2.9 5.20 - 5.50 1.7 1
M3.5 6.44 - 6.80 2.1 2
M3.9 7.14 - 7.50 2.3 2
M4.2 7.74 - 8.10 2.5 2
M4.8 9.14 - 9.50 3.0 2
M5.5 10.37 - 10.80 3.4 3
M6.3 11.97 - 12.40 3.8 3
Size (mm)
M2.9 M3.5 M3.9 M4.2 M4.8 M5.5 M6.3
6.5 9.5 9.5 9.5 9.5 16 19
9.5 13 13 13 13 19 25
13 16 16 16 16 25 32
16 19 19 19 19 32 38
19 25 25 25 25 38 45
      32 32 45 50
        38 50 75
