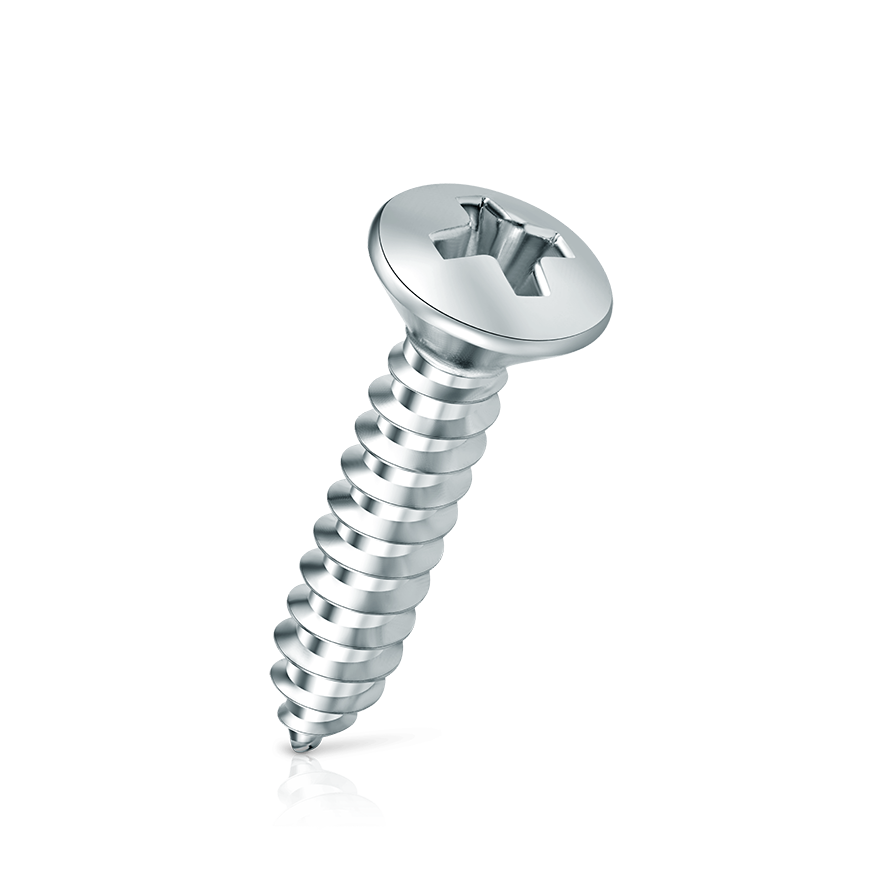

Oval Head Screw

Oval Head Screw

DIN 7983
Technical Specification

DIN 7983 Oval Head



Measurements

d dk (max) k f z
M2.9 5.20 - 5.50 1.7 0.9 1
M3.5 6.44 - 6.80 2.1 1.2 2
M3.9 7.14 - 7.50 2.3 1.3 2
M4.2 7.74 - 8.10 2.5 1.4 2
M4.8 9.14 - 9.50 3.0 1.5 2
M5.5 10.37 - 10.80 3.4 1.7 3
M6.3 11.97 - 12.40 3.8 2.0 3
Size (mm)
M2.9 M3.5 M3.9 M4.2 M4.8 M5.5 M6.3
6.5 9.5 9.5 9.5 9.5 16 19
9.5 13 13 13 13 19 25
13 16 16 16 16 25 32
16 19 19 19 19 32 38
19 25 25 25 25 38 45
      32 32 45 50
        38 50 75
