開口型拉釘

開口型拉釘

OP

產品功能

強大,低成本



開口型拉釘適用於大多數工業鉚接應用,在這些應用中,材料要以低成本固定。


應用
  • 辦工室傢俱
  • 汽車工業
  • 建築物
  • 建築
  • 皮革工藝
材料與設置

物料

  • 鋁鐵
  • 鋁不銹鋼
  • 不銹鋼

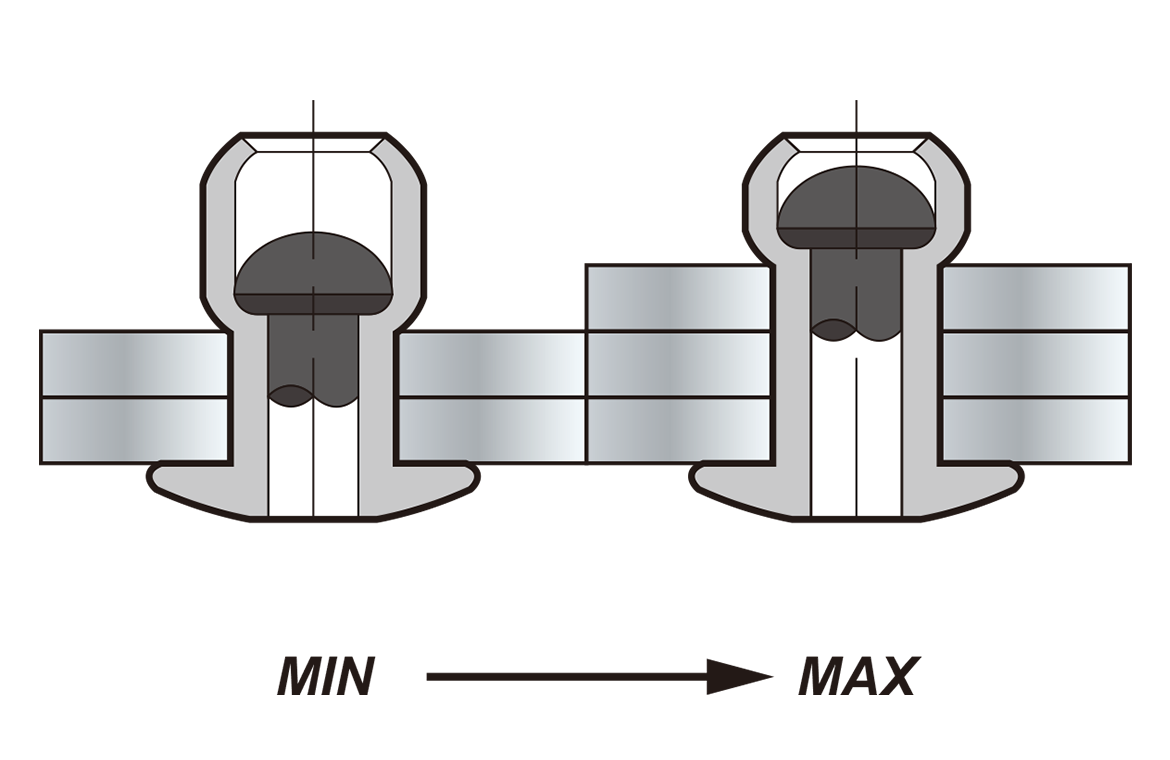

設置



影片
開口型拉釘
00分 27秒
技術規範

開口型拉釘



尺寸 - 鋁/不銹鋼
直徑 (d) 長度 (L) 握力範圍

2.4 (3/32")

2.5~2.6 (.10)

6.4 (1/4")
8.0 (5/16")
10.0 (3/8")
2.5 - 4.0 (0.10 - 0.16")
4.0 - 5.5 (0.14 - 0.22")
5.5 - 7.5 (0.22 - 0.30")

3.2 (1/8")

3.3~3.4 (.13)

6.4 (1/4")
8.0 (5/16")
10.0 (3/8")
11.4 (7/16")
12.7 (1/2")
14.5 (9/16")
16.0 (5/8")
19.0 (3/4")
22.0 (7/8")
1.0 - 3.0 (0.04 - 0.12")
3.0 - 5.0 (0.12 - 0.20")
5.0 - 6.5 (0.20 - 0.26")
6.5 - 8.0 (0.26 - 0.31")
8.0 - 9.0 (0.31 - 0.35")
9.0 - 10.5 (0.35 - 0.41")
10.5 - 12.0 (0.41 - 0.47")
12.0 - 14.5 (0.47 - 0.57")
14.5 - 17.5 (0.57 - 0.69")

4.0 (5.32")

4.1~4.2 (.16)

6.4 (1/4")
8.0 (5/16")
10.0 (3/8")
11.4 (7/16")
12.7 (1/2")
14.5 (9/16")
16.0 (5/8")
19.0 (3/4")
22.0 (7/8")

1.0 - 2.5 (0.04 - 0.10")
2.5 - 4.0 (0.10 - 0.16")
4.0 - 6.0 (0.16 - 0.24")
6.0 - 7.5 (0.24 - 0.30")
7.5 - 8.5 (0.30 - 0.33")
8.5 - 10.0 (0.33 - 0.39")
10.5 - 11.5 (0.39 - 0.45")
11.5 - 14.0 (0.45 - 0.55")
14.0 - 17.0 (0.55 - 0.67")

4.8 (3/16")

4.9~5.0 (.19)

8.0 (5/16")
10.0 (3/8")
11.4 (7/16")
12.7 (1/2")
14.5 (9/16")
16.0 (5/8")
19.0 (3/4")
22.0 (7/8")
25.4 (1")
1.5 - 3.5 (0.06 - 0.14")
3.5 - 5.5 (0.14 - 0.22")
5.5 - 7.0 (0.22 - 0.28")
7.0 - 8.0 (0.28 - 0.31")
8.0 - 9.5 (0.31 - 0.35")
9.5 - 11.0 (0.37 - 0.43")
11.0 - 14.0 (0.43 - 0.55")
14.0 - 17.0 (0.55 - 0.67")
17.0 - 20.0 (0.67 - 0.79")

6.4 (1/4")

6.5~6.6 (.26)

10.0 (3/8")
12.7 (1/2")
14.5 (9/16")
16.0 (5/8")
19.0 (3/4")
22.0 (7/8")
25.4 (1")
2.5 - 4.5 (0.10 - 0.18")
6.0 - 7.0 (0.24 - 0.28")
7.0 - 8.5 (0.28 - 0.35")
9.0 - 10.5 (0.35 - 0.41")
10.5 - 13.5 (0.41 - 0.53")
13.5 - 16.5 (0.53 - 0.65")
16.5 - 20.0 (0.65 - 0.79")
尺寸 - 鋁/鋼
直徑 (d) 長度 (L) 握力範圍

3.2 (1/8")

3.3~3.4 (.13)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")

0.5 - 2.5 (0.02 - 0.10")
2.5 - 4.5 (0.10 - 0.18")
4.5 - 6.0 (0.18 - 0.24")
6.0 - 8.0 (0.24 - 0.31")
8.0 - 10.0 (0.31 - 0.39")

4.0 (5.32")

4.1~4.2 (.16)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")
18.0 (11/16")
20.0 (13/16")

1.0 - 2.0 (0.04 - 0.08")
2.0 - 4.0 (0.08 - 0.16")
4.0 - 6.0 (0.16 - 0.24")
6.0 - 7.5 (0.24 - 0.30")
7.5 - 9.5 (0.30 - 0.37")
9.5 - 11.0 (0.37 - 0.41")
11.0 - 13.0 (0.43 - 0.51")
13.0 - 15.0 (0.51 - 0.59")


4.8 (3/16")

4.9~5.0 (.19)

8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")
18.0 (11/16")
20.0 (13/16")
22.0 (7/8")
25.0 (1")
1.5 - 3.0 (0.06 - 0.12")
3.0 - 5.0 (0.12 - 0.20")
5.0 - 7.0 (0.20 - 0.28")
7.0 - 9.0 (0.28 - 0.35")
9.0 - 10.5 (0.35 - 0.41")
10.5 - 12.0 (0.41 - 0.47")
12.0 - 14.0 (0.47 - 0.55")
14.0 - 16.0 (0.55 - 0.63")
16.0 - 19.0 (0.63 - 0.75")

6.4 (1/4")

6.5~6.6 (.26)

12.0 (15/32")
16.0 (5/8")
20.0 (13/16")
25.0 (1")
30.0 (1-3/16")

3.0 - 6.0 (0.12 - 0.24")
6.0 - 10.0 (0.24 - 0.39")
10.0 - 14.0 (0.39 - 0.55")
14.0 - 19.0 (0.55 - 0.75")
18.0 - 24.0 (0.71 - 0.94")
尺寸 - 鋼
直徑 (d) 長度 (L) 握力範圍

3.2 (1/8")

3.3~3.4 (.13)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")

0.5 - 3.0 (0.02 - 0.12")
3.0 - 5.0 (0.12 - 0.20")
5.0 - 7.0 (0.20 - 0.28")
7.0 - 9.0 (0.28 - 0.35")
9.0 - 11.0 (0.35 - 0.43")
11.0 - 13.0 (0.43 - 0.51")

4.0 (5.32")

4.1~4.2 (.16)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")
18.0 (11/16")
20.0 (13/16")

1.0 - 2.0 (0.04 - 0.08")
2.0 - 4.0 (0.08 - 0.16")
4.0 - 6.0 (0.16 - 0.24")
6.0 - 8.0 (0.24 - 0.31")
8.0 - 10.0 (0.31 - 0.39")
10.0 - 12.0 (0.39 - 0.47")
12.0 - 14.0 (0.47 - 0.55")
14.0 - 16.0 (0.55 - 0.63")


4.8 (3/16")

4.9~5.0 (.19)

8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")
18.0 (11/16")
20.0 (13/16")
22.0 (7/8")
25.0 (1")
1.5 - 3.5 (0.06 - 0.14")
3.5 - 5.5 (0.14 - 0.22")
5.5 - 7.5 (0.22 - 0.30")
7.5 - 9.5 (0.30 - 0.37")
9.5 - 11.5 (0.37 - 0.45")
11.5 - 13.0 (0.45 - 0.51")
13.0 - 15.0 (0.51 - 0.59")
15.0 - 17.0 (0.59 - 0.67")
17.0 - 19.5 (0.67 - 0.77")

6.4 (1/4")

6.5~6.6 (.26)

10.0 (3/8")
12.0 (15/32")
16.0 (5/8")
20.0 (13/16")
25.0 (1")
30.0 (1-3/16")

3.0 - 4.0 (0.12 - 0.16")
4.0 - 6.0 (0.16 - 0.24")
6.0 - 9.0 (0.24 - 0.35")
9.0 - 13.0 (0.35 - 0.51")
13.0 - 19.0 (0.51 - 0.75")
19.0 - 24.0 (0.75 - 0.94")
尺寸 - 不銹鋼
直徑 (d) 長度 (L) 握力範圍

3.2 (1/8")

3.3~3.4 (.13)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")
18.0 (11/16")
20.0 (13/16")

1.0 - 3.0 (0.04 - 0.12")
3.0 - 5.0 (0.12 - 0.20")
5.0 - 7.0 (0.20 - 0.28")
7.0 - 9.0 (0.28 - 0.35")
9.0 - 11.0 (0.35 - 0.43")
11.0 - 13.0 (0.43 - 0.51")
13.0 - 15.0 (0.51 - 0.59")
15.0 - 17.0 (0.59 - 0.67")

4.0 (5.32")

4.1~4.2 (.16)

6.0 (1/4")
8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")
18.0 (11/16")
20.0 (13/16")

1.0 - 2.0 (0.04 - 0.08")
2.0 - 4.0 (0.08 - 0.16")
4.0 - 6.0 (0.16 - 0.24")
6.0 - 8.0 (0.24 - 0.31")
8.0 - 10.0 (0.31 - 0.39")
10.0 - 12.0 (0.39 - 0.47")
12.0 - 14.0 (0.47 - 0.55")
14.0 - 16.0 (0.55 - 0.63")


4.8 (3/16")

4.9~5.0 (.19)

8.0 (5/16")
10.0 (3/8")
12.0 (15/32")
14.0 (9/16")
16.0 (5/8")
18.0 (11/16")
20.0 (13/16")
22.0 (7/8")
25.0 (1")
1.5 - 3.5 (0.06 - 0.14")
3.5 - 5.5 (0.14 - 0.22")
5.5 - 7.5 (0.22 - 0.30")
7.5 - 9.5 (0.30 - 0.37")
9.5 - 11.5 (0.37 - 0.45")
11.5 - 13.0 (0.45 - 0.51")
13.0 - 15.0 (0.51 - 0.59")
15.0 - 17.0 (0.59 - 0.67")
17.0 - 19.5 (0.67 - 0.77")
