Hydraulic Air Riveter
PAR-03
Industrial standard
Greater pulling force
Suitable for various sizes and materials of rivets
Powered by compressed air for riveting, easy to operate, fast riveting speed. Suitable for aluminum, iron, and stainless steel plates. Comes with vacuum system automatically retracts after fastening.
Operation Instructions
Highly recommend using PATTA manufactured or internationally standards.

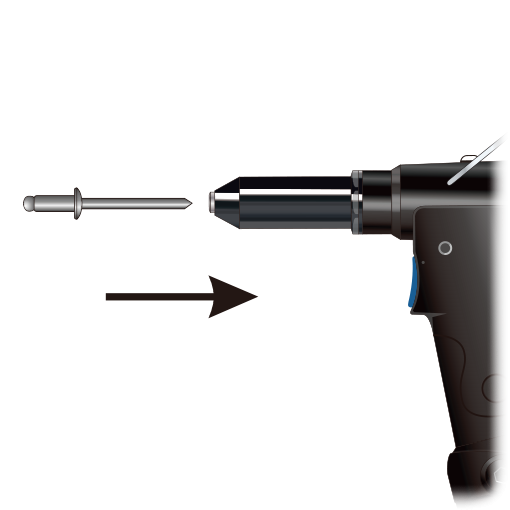

Insert the rivet into the rivet gun.
01

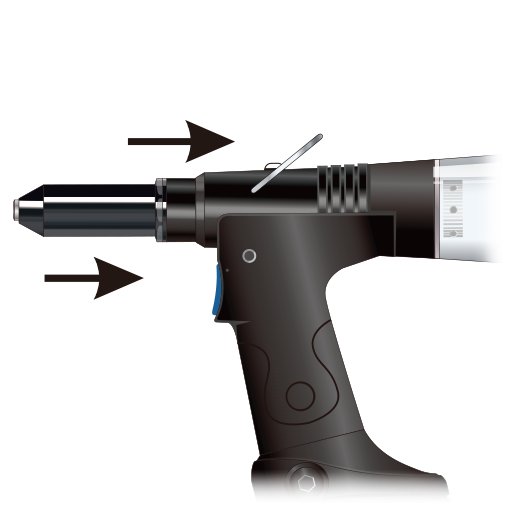

Press the trigger to compress, and the rivet shaft will break automatically.
02

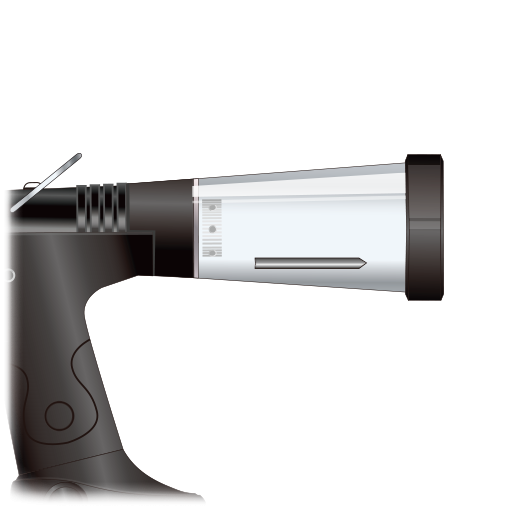

The shaft will retract into the rivet collector bottle.
03
Professional-grade industrial standard pneumatic rivet gun.
Hydraulic Air Riveter PAR-03
Air Tools
Uploaded 07/07/2023
|
PATTA Marketing
Powered by compressed air for riveting, easy to operate, fast riveting speed. Suitable for aluminum, iron, and stainless steel plates. Comes with vacuum system automatically retracts after fastening.
Technical Specifications
PAR-03 Tool Specification
| Attributes | PAR-03 |
|---|---|
| Stroke (max) | 26 mm |
| Pull Force (@5.5kgf) | 12.9 kn / 1,316 kgf |
| Weight | 2.1 kg |
| Cycle Time | 1.2 s |
| Air Pressure (min - max) | 5 - 7 kgf |
| Air Consumption (@5.5kgf) | 4.3 L |
| Noise | 75 dB(A) |
| Vibration | 2.5 m / s2 |
Supported Rivets
| 4.8mm | 6.4mm | |
|---|---|---|
| Aluminium / Steel | ◉ | ◉ |
| Steel | ◉ | ◉ |
| Stainless Steel / Steel | ◉ | ● |
| Stainless Steel | ◉ | ● |
Hydraulic Air Riveter PAR-03
PDF 13.54 Mb
