Powered by compressed air for riveting, easy to operate, fast riveting speed. Suitable for aluminum, iron, and stainless steel plates. Comes with vacuum system automatically retracts after fastening.
Operation Instructions
Highly recommend using PATTA manufactured or internationally standards.

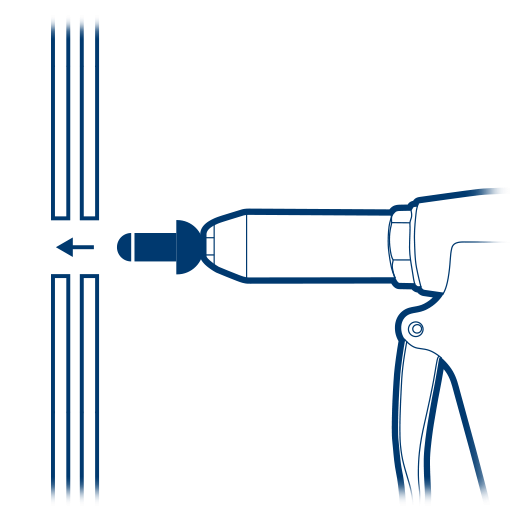

Insert the rivet into the rivet gun.
01

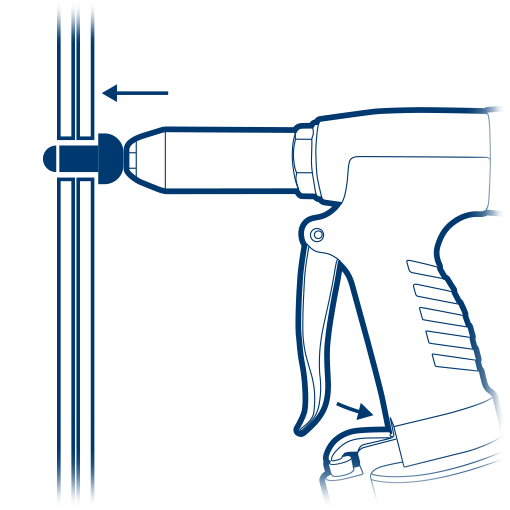

Press the trigger to compress, and the rivet shaft will break automatically.
02

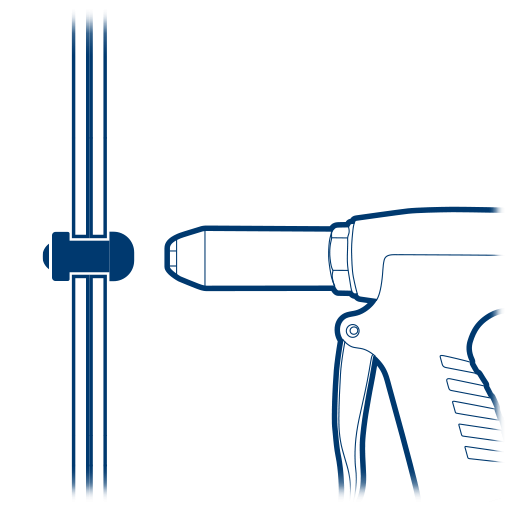

The shaft will retract into the rivet collector bottle.
03
Designed for high-volume, rapid fastening needs, suitable for structural engineering and industrial production lines.
Air Riveter AR-600
Air Tools
Uploaded 07/07/2023
|
PATTA Marketing
Powered by compressed air for riveting, easy to operate, fast riveting speed. Suitable for aluminum, iron, and stainless steel plates. Comes with vacuum system automatically retracts after fastening.
Technical Specifications
AR-600 Tool Specification
| Attributes | AR-600 |
|---|---|
| Stroke (max) | 15.5 mm |
| Pull Force (@5.5kgf) | 8.0kn / 820kgf |
| Weight | 1.55 kg |
| Rivet Capacity | 4.8 mm |
| Air Pressure (min-max) | 5 - 6 kgf |
Air Riveter AR-600
PDF 3.57 Mb
