Hydraulic Air Riveter
PAR-02
Industrial standard
High tensile strength
Suitable for various sizes and materials of rivets
Designed to industrial standards for efficient and high-volume riveting in structural engineering and production. Vacuum system for automatic axis retraction, suitable for a wide range of rivet sizes and materials.
Operation Instructions
Highly recommend using PATTA manufactured or internationally standards.

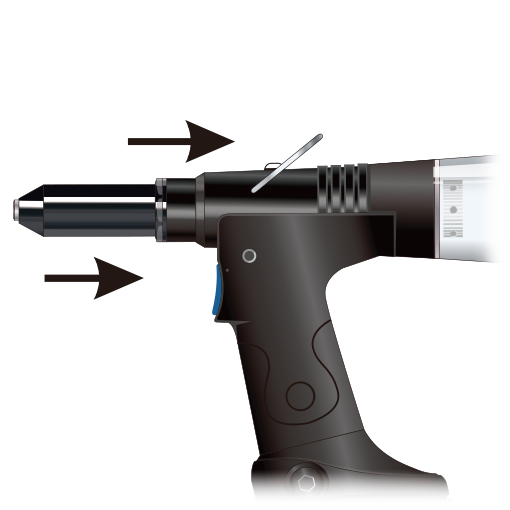

Insert the rivet into the rivet gun.
01
Press the trigger to compress, and the rivet shaft will break automatically.
02

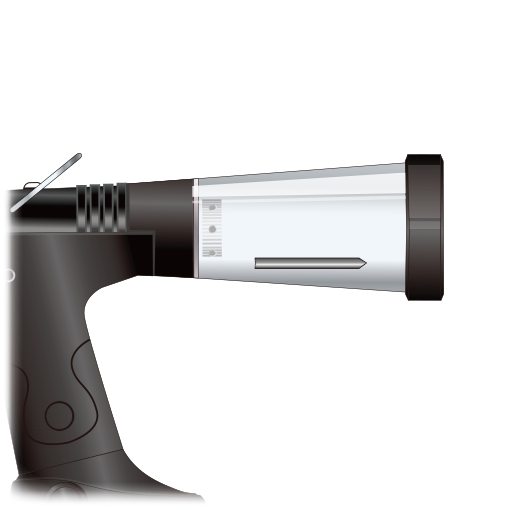

The shaft will retract into the rivet collector bottle.
03
Professional-grade industrial standard pneumatic rivet gun.
Hydraulic Air Riveter PAR-02
Air Tools
Uploaded 07/07/2023
|
PATTA Marketing
Designed to industrial standards for efficient and high-volume riveting in structural engineering and production. Vacuum system for automatic axis retraction, suitable for a wide range of rivet sizes and materials.
Technical Specifications
PAR-02 Tool Specification
| Attributes | PAR-02 |
|---|---|
| Stroke (max) | 17 mm |
| Pull Force (@5.5kgf) | 9.34 kn / 953 kgf |
| Weight | 2.1 kg |
| Cycle Time | 0.8 s |
| Air Pressure (min - max) | 5 - 7 kgf |
| Air Consumption (@5.5kgf) | 2.1 L |
| Noise | 75 dB(A) |
| Vibration | 2.5 m / s2 |
Supported Rivets
| 4.0 mm | 4.8 mm | |
|---|---|---|
| Aluminium / Steel | ◉ | ◉ |
| Steel | ◉ | ◉ |
| Stainless Steel / Steel | ◉ | ● |
| Stainless Steel | ◉ | ● |
Hydraulic Air Riveter PAR-02
PDF 12.87 Mb
