Used for automatic door closing, providing smooth and controlled closing action with adjustable closing force and speed.
Application & Usage
Effectively slows down door closing speed, suitable for light to medium-weight doors.
- Compliant with EN1154 EN3 standard
- Suitable for both single and double doors
- Adjustable closing and latching speeds
- Two-stage speed adjustment mechanism
- Maximum door opening angle of 170°
- Adjustable maximum opening angle of 150°
- 90° hold open position (adjustable)
Durable and practical, professionally crafted for high-quality and efficient door closing.

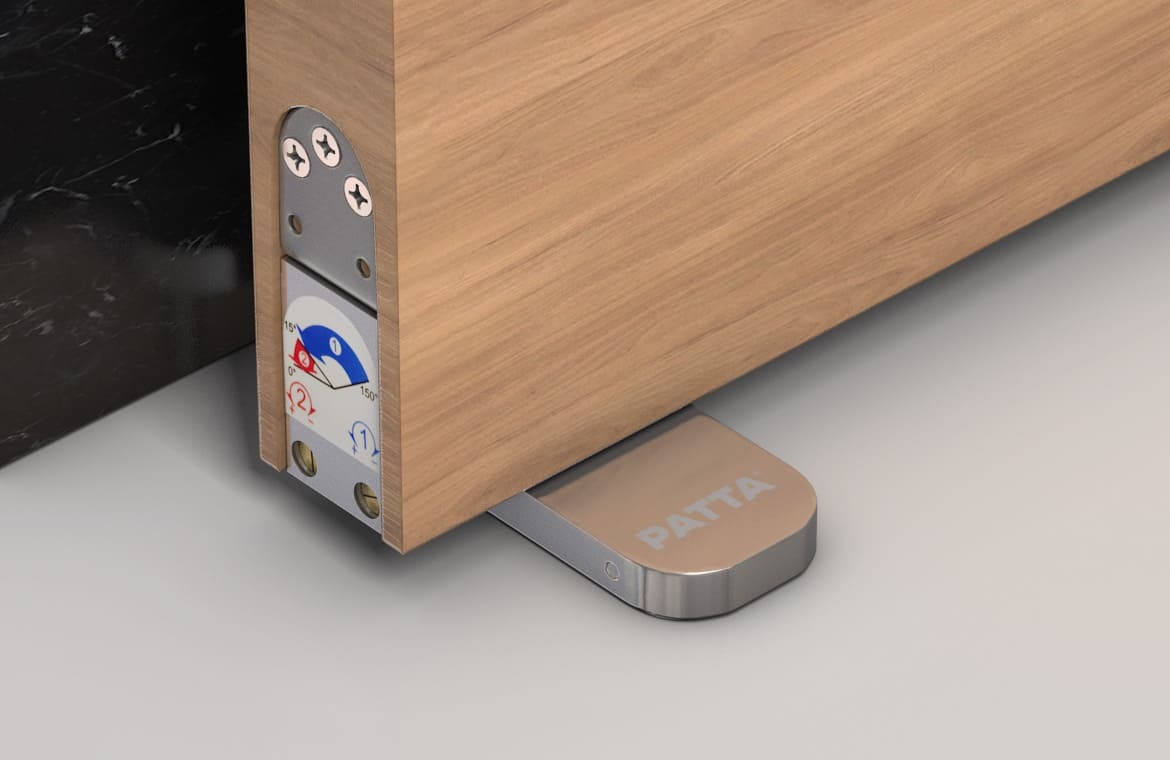

Floor Spring B330
Doors & Windows
Uploaded 07/07/2023
|
PATTA Marketing
Used for automatic door closing, providing smooth and controlled closing action with adjustable closing force and speed.
Technical Specifications
Anodized aluminum material
Base: US32D (Satin Stainless Steel)
Certified by EN 1154:1996 door closer standards

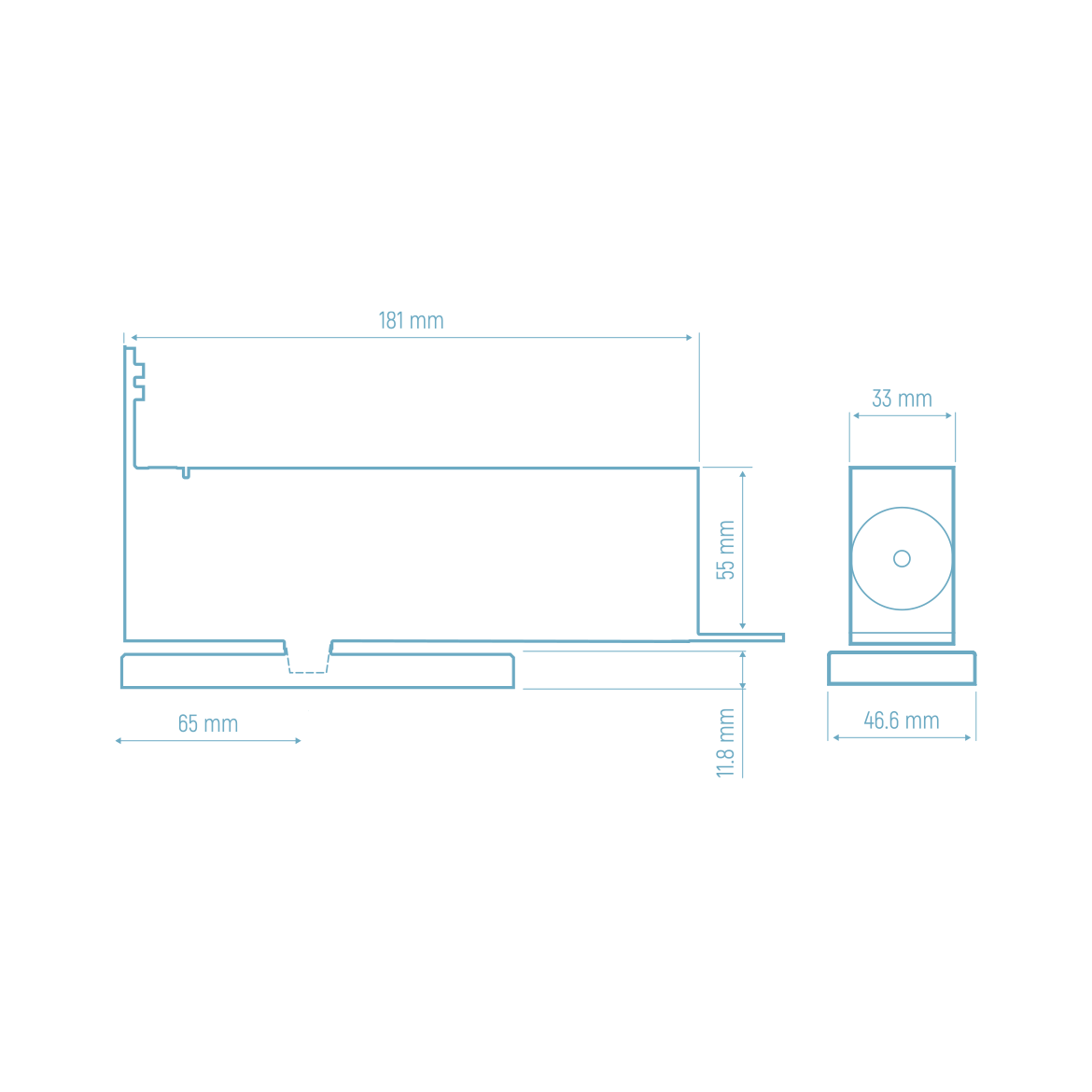

B330 Specification
| Settings | |
|---|---|
| Max. Door Width | 1,000 mm |
| Max. Door Weight | 100 kg |
| Available Wood Thickness | 30 mm |
Grip Forever Product Catalog
PDF 16.44 Mb
