Used for automatic door closing, smooth and seamless operation, adjustable closing force and speed.
Application & Usage
Effectively slows down the door closing speed, suitable for light to medium-weight door panels such as glass doors.
- Fixed closing force EN3
- Suitable for single/double swing doors
- Two-stage speed adjustment device
- Maximum door opening angle of 170°, 90° hold position
Compact design, certified door closer, easy door opening, efficient buffered door closing.
Floor Spring B300
Doors & Windows
Uploaded 07/07/2023
|
PATTA Marketing
Used for automatic door closing, smooth and seamless operation, adjustable closing force and speed.
Technical Specifications
Surface Finish: US32D (Satin Stainless Steel)
Certified according to door closer standard: EN 1154:1996

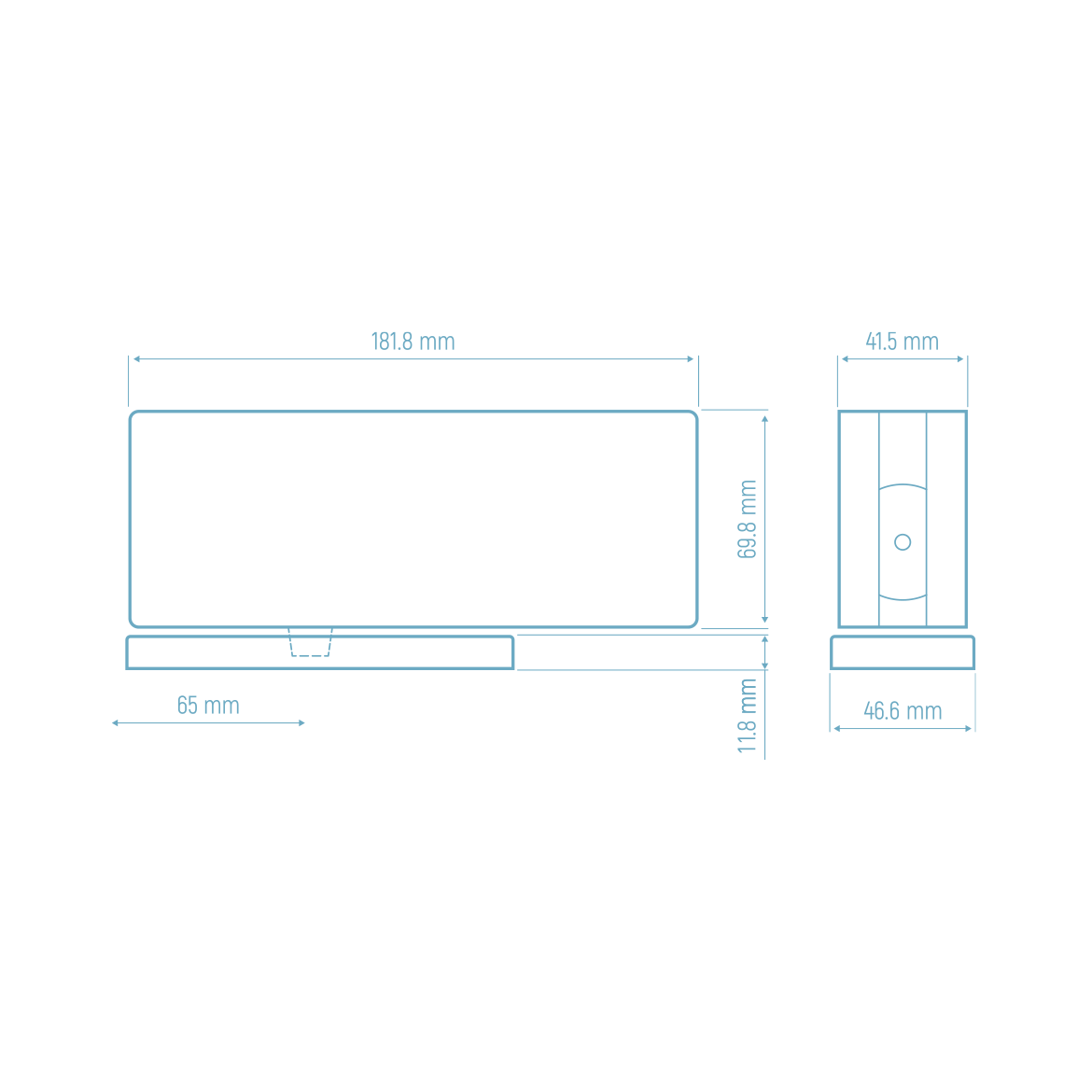

B300 Specification
| Attributes | |
|---|---|
| Max. Door Width | 1,000 mm |
| Max. Door Weight | 100 kg |
| Available Glass Thickness | 8 ~ 13 mm |
