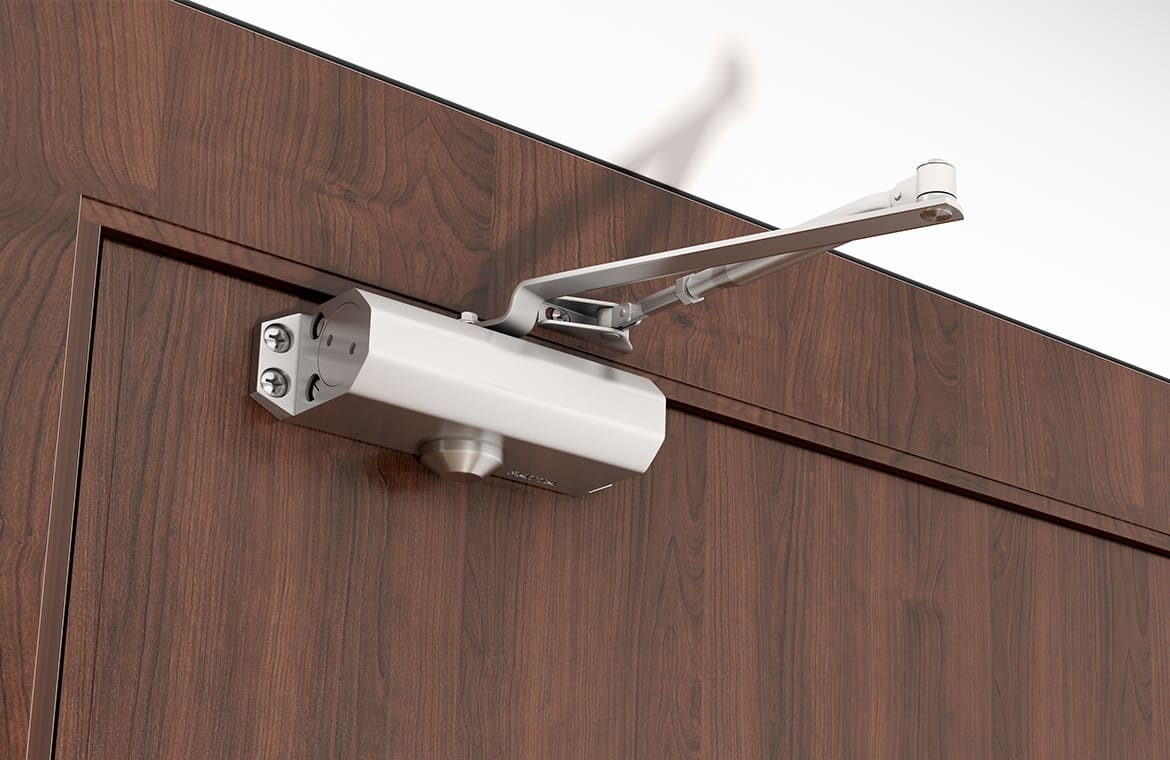

Used for automatic door closing, smoothly and effortlessly, adjustable closing force and speed.
Application & Usage
3 adjustable power levels to slow down door closing speed, suitable for various door panel styles.
- EN2-4 adjustable closing force
- Suitable for one-way doors
- Non-handed installation
- Telescopic arm
- Built-in pressure relief valve

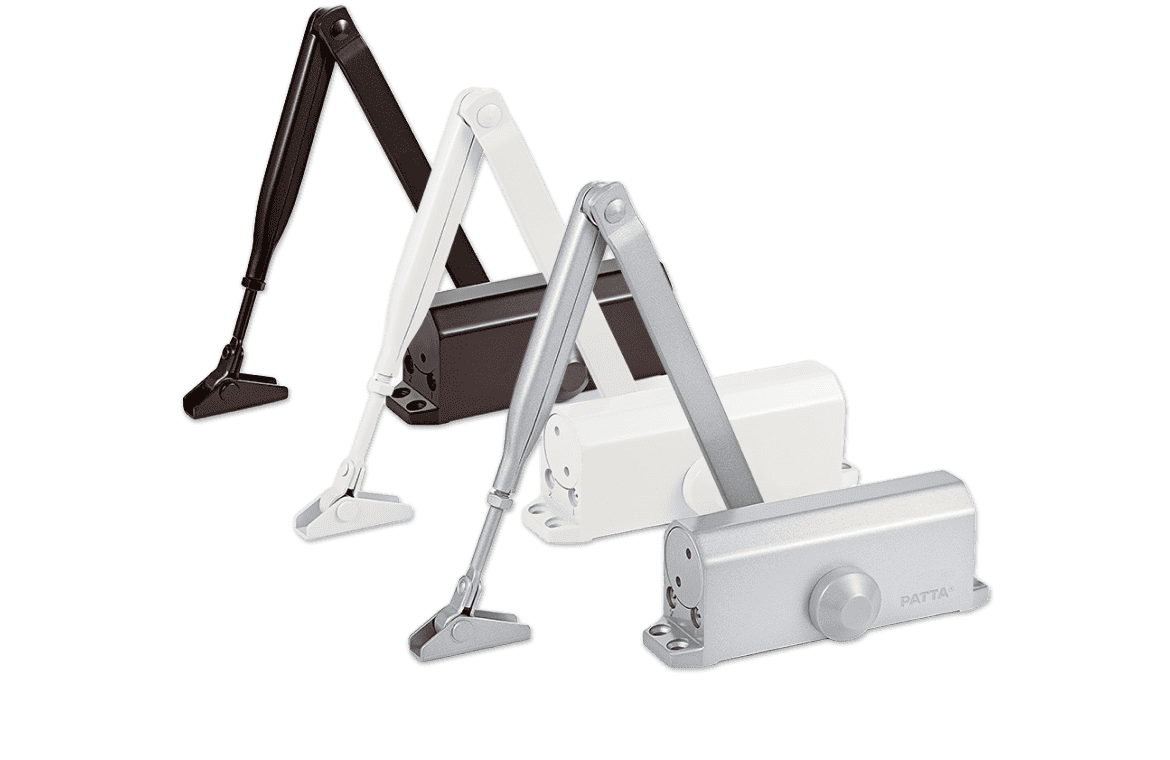

Available Colours
- Painted Silver
- Brown
- Black
- White
- Brown Red
- For custom color requests, please contact us
Made from authentic materials, with long-lasting wear resistance, high buffering stability, and quieter operation.
Door Closer PC0770
Doors & Windows
Uploaded 07/07/2023
|
PATTA Marketing
Used for automatic door closing, smoothly and effortlessly, adjustable closing force and speed.
Technical Specifications
Certified by Door Closer: UL 228Passed Positive Pressure Fire Test: ANSI/UL 10C

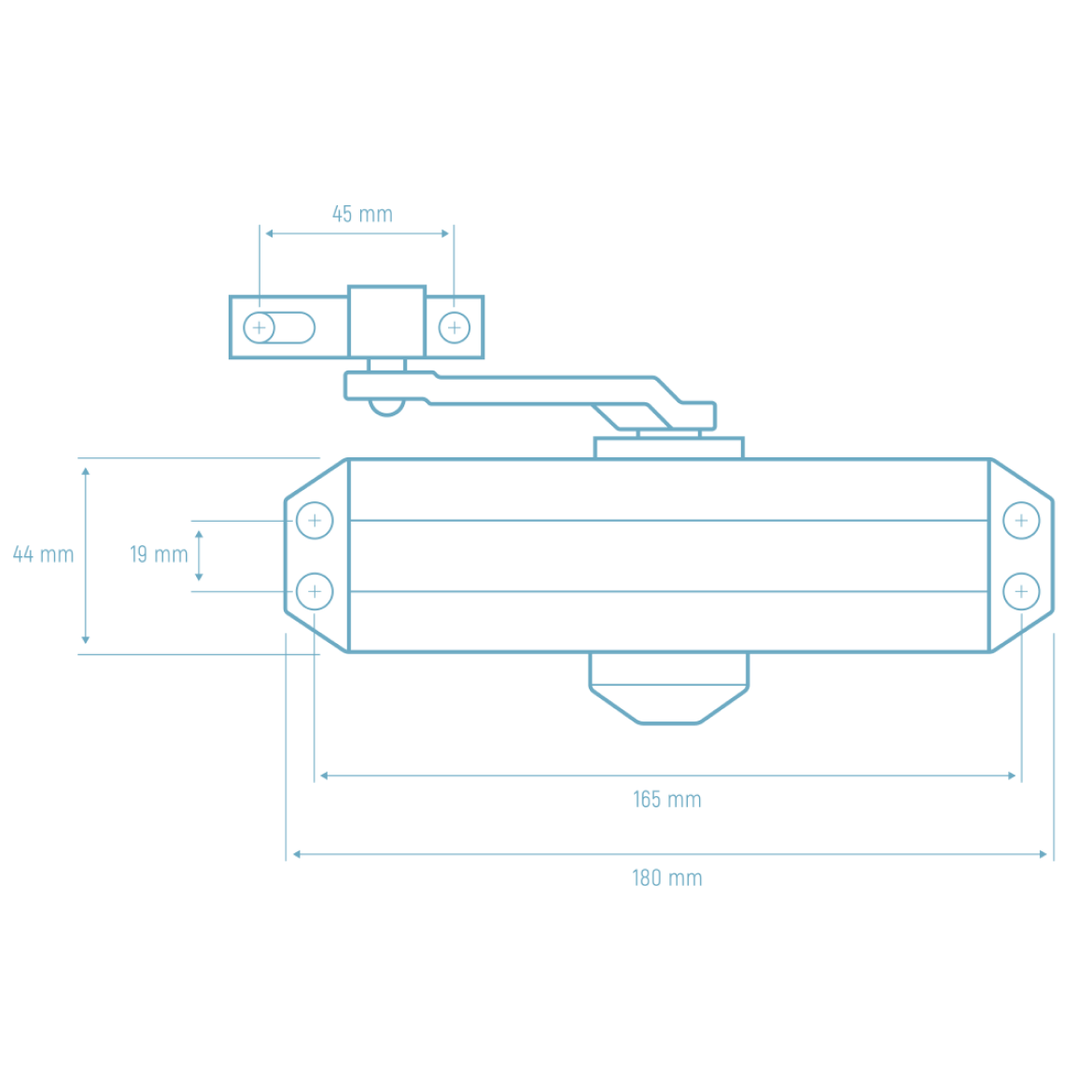

PC0770 Specification
| Settings | Size 2 | Size 3 | Size 4 |
|---|---|---|---|
| Max. Door Width | 870 mm | 950 mm | 1,100 mm |
| Max. Door Weight | 40 kg | 60 kg | 80 kg |
| Max. Opening Angle | 160 | 160 | 145 |
