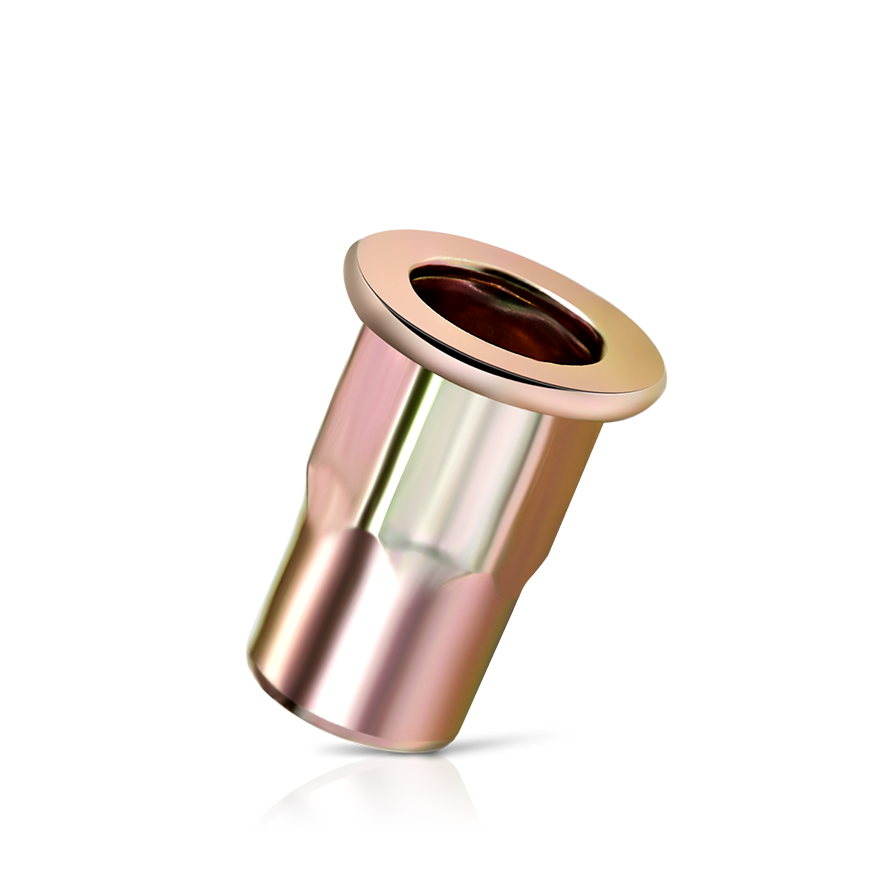

Flat Head / Half Hexagon body / Open-End

Flat Head / Half Hexagon body / Open-End

Product Features

High load



Flat head design for high load applications. Semihex body for improved torque-out resistance.


Application
  • For areas where high strength of turning is required
Materials & Setting

Materials

  • Steel
  • Stainless Steel



Setting



Video
Rivet Nuts
01m 48s
Technical Specification

Flat Head / Half Hexagon / Open-End



Measurements (mm)

Dia (d) Length (L) Hole Dia Grip Range (e) dk do
M4 11.3
12.3
6.1
(.240)
0.5 - 2.5
2.5 - 3.5
0.8
(.031)
9.3
(.366)
M5 12.5
13.5
7.1
(.280)
0.5 - 2.5
2.5 - 3.5
1.0
(.039)
10.3
(.408)
M6 15.0
16.5
9.1
(.358)
0.5 - 2.5
2.5 - 4.0
1.5
(.059)
12.3
(.484)
