Hydraulic Air Riveter

Hydraulic Air Riveter

PAR-03

Professional Air Riveter

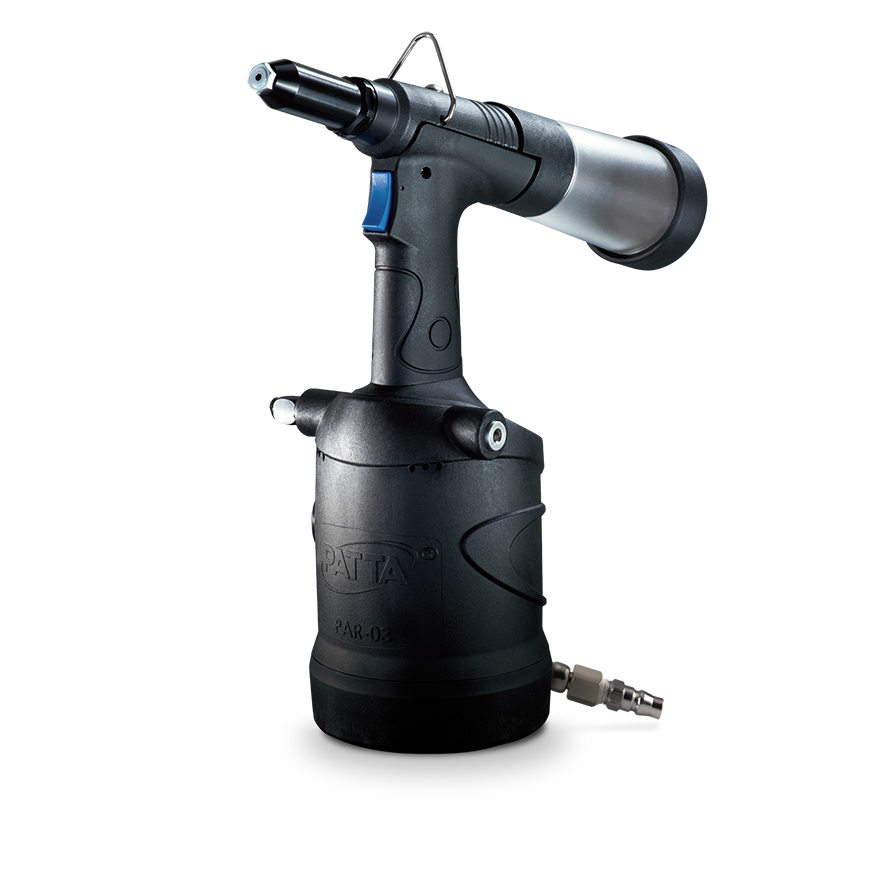

The PATTA PAR-03 Hydraulic Air Riveter is designed to place blind rivets at high speed making it ideal for batch or flow-line assembly in a variety of applications throughout all industries. The tool features a vacuum system for blind rivets retention and trouble free collection of the spent mandrels regardless of tool orientation.


Care Instructions



  • It is recommended to use Rivets manufactured by PATTA or rivets that comply with international standards.
  • After using for long periods, metal debris will build up inside the nose piece, so please clean regularly to avoid operational problems.
  • Please maintain and re-fuel oil fluid periodically.
  • the applicable air pressure for the air riveter is 5-7kg.







Operation of Air Riveter

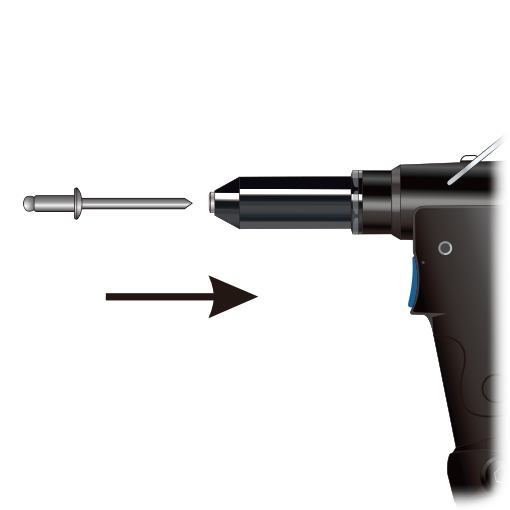

Insert rivet into riveter

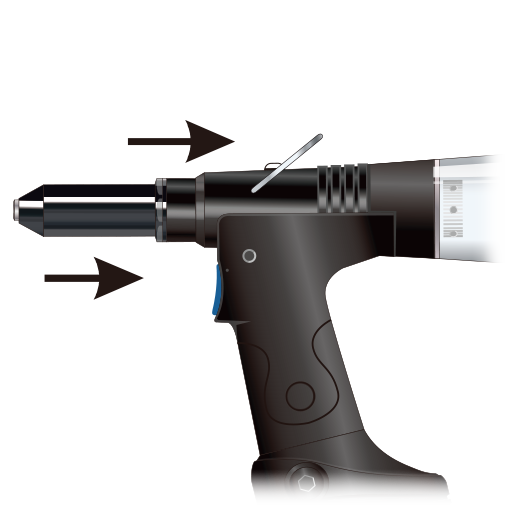

Pull the trigger using the pneumatic force to cut off the mandrel

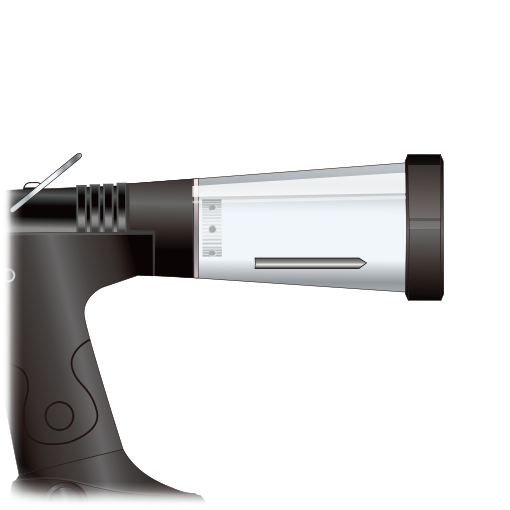

Mandrel left in the stem collector











Video
PAR-03 Air Riveter
02m 08s
Technical Specification

Air Riveter PAR-03



Tool Specification

Attributes PAR-01
Stroke (max) 26mm
Pull Force (@5.5kgf) 12.9kn/1316kgf
Weight 2.1kg
Cycle Time 1.2s
Air Pressure (min-max) 5-7kgf
Air Consumption (@5.5kgf) 4.3L
Noise 75dB(A)
Vibration 2.5m/s2
Supported Rivets
    4.8mm 6.4mm
Aluminium / Steel
Steel
Stainless Steel / Steel
Stainless Steel



Download Available
Air Riveter PAR-03 Operation Manual PDF 13.5 Mb
