Rebite de Repuxo Open End

Rebite de Repuxo Open End

OP

Forte com baixo custo



Os rebites de repuxo de ponta aberta são adequados para a maioria das aplicações de rebitagem industrial, onde os materiais devem ser fixados com alta resistência e baixo custo.


Recursos
  • Ideal para ampla gama de aplicações
  • Disponível em uma variedade de materiais
  • Estilos de cabeça de cúpula, escareada ou flange grande
  • Acabamentos em cores pintadas disponíveis para combinar com o ambiente



Aplicação
  • Móveis de escritório
  • Indústria automobilística
  • Construção Civil
  • Construção
  • Produção de couro



Materiais e configuração

Materiais

  • Alumínio / Aço
  • Alumínio / Aço Inoxidável
  • Aço
  • Aço inoxidável

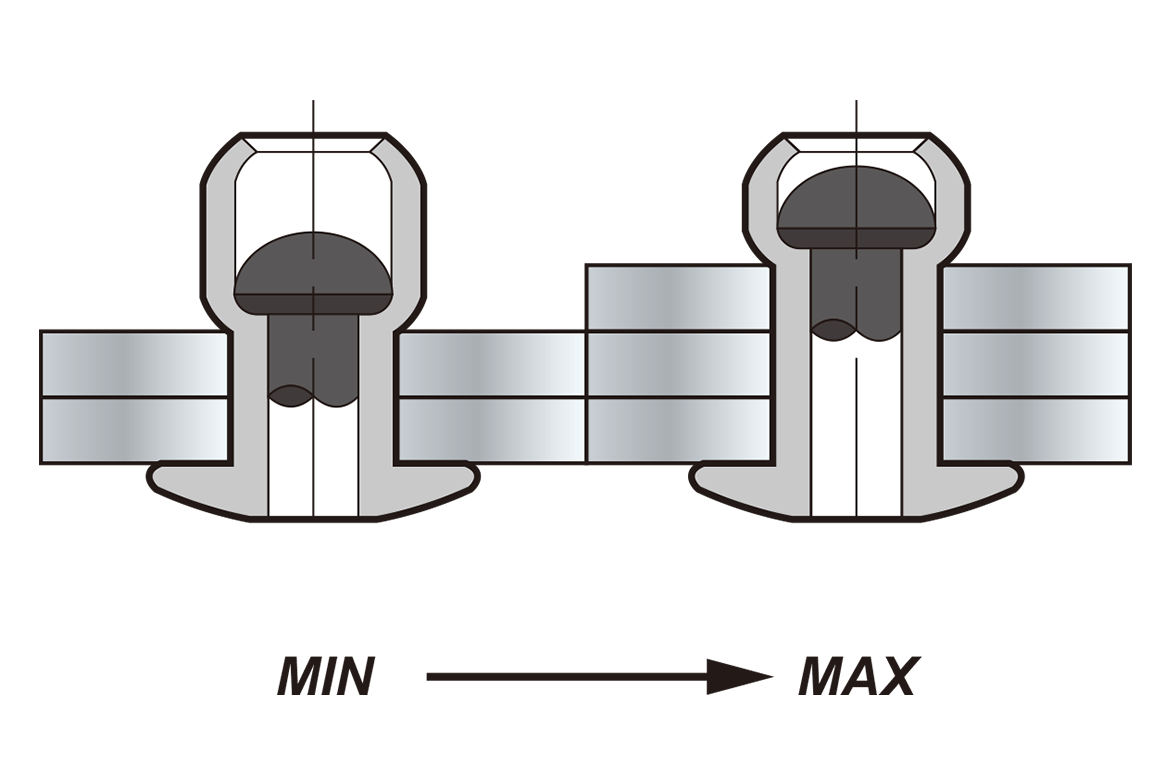

Configuração



Video
Rebite de Repuxo OP
00m 24s
Especificações técincas

Rebite de Repuxo OP Open End







Tamanhos disponíveis (alumínio / aço inoxidável)

Diâmetro (D) Comprimento (L) Alcance de Aderencia
2,4mm (3/32")
Ø 2,5~2,6 (,10)		 6,4mm (1/4") 2,5 - 4,0mm (0,10 - 0,16")
8,0mm (5/16") 4,0 - 5,5mm (0,14 - 0,22")
10,0mm (3/8") 5,5 - 7,5mm (0,22 - 0,30")
3,2mm (1/8")
Ø 3,3~3,4 (,13)		 6,4mm (1/4") 1,0 - 3,0mm (0,04 - 0,12")
8,0mm (5/16") 3,0 - 5,0mm (0,12 - 0,20")
10,0mm (3/8") 5,0 - 6,5mm (0,20 - 0,26")
11,4mm (7/16") 6,5 - 8,0mm (0,31 - 0,50")
12,7mm (1/2") 8,0 - 9,0mm (0,31 - 0,35")
14,5mm (9/16") 9,0 - 10,5mm (0,35 - 0,41")
16,0mm (5/8") 10,5 - 12,0mm (0,41 - 0,47")
19,0mm (3/4") 12,0 - 14,5mm (0,47 - 0,57")
22,0mm (7/8") 14,5 - 17,5mm (0,57 - 0,69")
4,0mm (5/32")
Ø 4,1~4,2 (,16)		 6,4mm (1/4") 1,0 - 3,0mm (0,04 - 0,12")
8,0mm (5/16") 3,0 - 5,0mm (0,12 - 0,20")
10,0mm (3/8") 5,0 - 6,5mm (0,20 - 0,26")
11,4mm (7/16") 6,5 - 8,0mm (0,31 - 0,50")
12,7mm (1/2") 8,0 - 9,0mm (0,31 - 0,35")
14,5mm (9/16") 9,0 - 10,5mm (0,35 - 0,41")
16,0mm (5/8") 10,5 - 12,0mm (0,41 - 0,47")
19,0mm (3/4") 12,0 - 14,5mm (0,47 - 0,57")
22,0mm (7/8") 14,5 - 17,5mm (0,57 - 0,69")
4,8mm (3/16")
Ø 4,9~5,0 (,19)		 8,0mm (5/16") 3,0 - 5,0mm (0,12 - 0,20")
10,0mm (3/8") 5,0 - 6,5mm (0,20 - 0,26")
11,4mm (7/16") 6,5 - 8,0mm (0,31 - 0,50")
12,7mm (1/2") 8,0 - 9,0mm (0,31 - 0,35")
14,5mm (9/16") 9,0 - 10,5mm (0,35 - 0,41")
16,0mm (5/8") 10,5 - 12,0mm (0,41 - 0,47")
19,0mm (3/4") 12,0 - 14,5mm (0,47 - 0,57")
22,0mm (7/8") 14,5 - 17,5mm (0,57 - 0,69")
25,4mm (1") 17,0 - 20,0mm (0,67 - 0,79")
6,4mm (1/4")
Ø 6,5~6,6 (,26)		 10,0mm (3/8") 2,5 - 4,5mm (0,10 - 0,18")
12,7mm (1/2") 6,0 - 7,0mm (0,24 - 0,28")
14,5mm (9/16") 7,0 - 8,5mm (0,28 - 0,35")
16,0mm (5/8") 9,0 - 10,5mm (0,35 - 0,41")
19,0mm (25/64") 10,5 - 13,5mm (0,41 - 0,53")
22,0mm (33/64") 13,5 - 16,5mm (0,53 - 0,65")
25,4mm (1") 16,5 - 20,0mm (0,65 - 0,79")
Tamanhos - Alumínio / Aço
Diâmetro (d) Comprimento (L) Alcance de Aderencia

3,2 (1/8")

3,3~3,4 (,13)

 6,0 (1/4")
8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")

0,5 - 2,5 (0,02 - 0,10")
2,5 - 4,5 (0,10 - 0,18")
4,5 - 6,0 (0,18 - 0,24")
6,0 - 8,0 (0,24 - 0,31")
8,0 - 10,0 (0,31 - 0,39")

4,0 (5,32")

4,1~4,2 (,16)

 6,0 (1/4")
8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")
16,0 (5/8")
18,0 (11/16")
20,0 (13/16")

1,0 - 2,0 (0,04 - 0,08")
2,0 - 4,0 (0,08 - 0,16")
4,0 - 6,0 (0,16 - 0,24")
6,0 - 7,5 (0,24 - 0,30")
7,5 - 9,5 (0,30 - 0,37")
9,5 - 11,0 (0,37 - 0,41")
11,0 - 13,0 (0,43 - 0,51")
13,0 - 15,0 (0,51 - 0,59")


4,8 (3/16")

4,9~5,0 (,19)

 8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")
16,0 (5/8")
18,0 (11/16")
20,0 (13/16")
22,0 (7/8")
25,0 (1")		 1,5 - 3,0 (0,06 - 0,12")
3,0 - 5,0 (0,12 - 0,20")
5,0 - 7,0 (0,20 - 0,28")
7,0 - 9,0 (0,28 - 0,35")
9,0 - 10,5 (0,35 - 0,41")
10,5 - 12,0 (0,41 - 0,47")
12,0 - 14,0 (0,47 - 0,55")
14,0 - 16,0 (0,55 - 0,63")
16,0 - 19,0 (0,63 - 0,75")

6,4 (1/4")

6,5~6,6 (,26)

12,0 (15/32")
16,0 (5/8")
20,0 (13/16")
25,0 (1")
30,0 (1-3/16")

 3,0 - 6,0 (0,12 - 0,24")
6,0 - 10,0 (0,24 - 0,39")
10,0 - 14,0 (0,39 - 0,55")
14,0 - 19,0 (0,55 - 0,75")
18,0 - 24,0 (0,71 - 0,94")
Tamanhos - Aço
Diâmetro (d) Comprimento (L) Alcance de Aderencia

3,2 (1/8")

3,3~3,4 (,13)

 6,0 (1/4")
8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")
16,0 (5/8")

0,5 - 3,0 (0,02 - 0,12")
3,0 - 5,0 (0,12 - 0,20")
5,0 - 7,0 (0,20 - 0,28")
7,0 - 9,0 (0,28 - 0,35")
9,0 - 11,0 (0,35 - 0,43")
11,0 - 13,0 (0,43 - 0,51")

4,0 (5,32")

4,1~4,2 (,16)

 6,0 (1/4")
8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")
16,0 (5/8")
18,0 (11/16")
20,0 (13/16")

1,0 - 2,0 (0,04 - 0,08")
2,0 - 4,0 (0,08 - 0,16")
4,0 - 6,0 (0,16 - 0,24")
6,0 - 8,0 (0,24 - 0,31")
8,0 - 10,0 (0,31 - 0,39")
10,0 - 12,0 (0,39 - 0,47")
12,0 - 14,0 (0,47 - 0,55")
14,0 - 16,0 (0,55 - 0,63")


4,8 (3/16")

4,9~5,0 (,19)

 8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")
16,0 (5/8")
18,0 (11/16")
20,0 (13/16")
22,0 (7/8")
25,0 (1")		 1,5 - 3,5 (0,06 - 0,14")
3,5 - 5,5 (0,14 - 0,22")
5,5 - 7,5 (0,22 - 0,30")
7,5 - 9,5 (0,30 - 0,37")
9,5 - 11,5 (0,37 - 0,45")
11,5 - 13,0 (0,45 - 0,51")
13,0 - 15,0 (0,51 - 0,59")
15,0 - 17,0 (0,59 - 0,67")
17,0 - 19,5 (0,67 - 0,77")

6,4 (1/4")

6,5~6,6 (,26)

10,0 (3/8")
12,0 (15/32")
16,0 (5/8")
20,0 (13/16")
25,0 (1")
30,0 (1-3/16")

 3,0 - 4,0 (0,12 - 0,16")
4,0 - 6,0 (0,16 - 0,24")
6,0 - 9,0 (0,24 - 0,35")
9,0 - 13,0 (0,35 - 0,51")
13,0 - 19,0 (0,51 - 0,75")
19,0 - 24,0 (0,75 - 0,94")
Tamanhos - aço inoxidável
Diâmetro (d) Comprimento (L) Alcance de Aderencia

3,2 (1/8")

3,3~3,4 (,13)

 6,0 (1/4")
8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")
16,0 (5/8")
18,0 (11/16")
20,0 (13/16")

1,0 - 3,0 (0,04 - 0,12")
3,0 - 5,0 (0,12 - 0,20")
5,0 - 7,0 (0,20 - 0,28")
7,0 - 9,0 (0,28 - 0,35")
9,0 - 11,0 (0,35 - 0,43")
11,0 - 13,0 (0,43 - 0,51")
13,0 - 15,0 (0,51 - 0,59")
15,0 - 17,0 (0,59 - 0,67")

4,0 (5,32")

4,1~4,2 (,16)

 6,0 (1/4")
8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")
16,0 (5/8")
18,0 (11/16")
20,0 (13/16")

1,0 - 2,0 (0,04 - 0,08")
2,0 - 4,0 (0,08 - 0,16")
4,0 - 6,0 (0,16 - 0,24")
6,0 - 8,0 (0,24 - 0,31")
8,0 - 10,0 (0,31 - 0,39")
10,0 - 12,0 (0,39 - 0,47")
12,0 - 14,0 (0,47 - 0,55")
14,0 - 16,0 (0,55 - 0,63")


4,8 (3/16")

4,9~5,0 (,19)

 8,0 (5/16")
10,0 (3/8")
12,0 (15/32")
14,0 (9/16")
16,0 (5/8")
18,0 (11/16")
20,0 (13/16")
22,0 (7/8")
25,0 (1")		 1,5 - 3,5 (0,06 - 0,14")
3,5 - 5,5 (0,14 - 0,22")
5,5 - 7,5 (0,22 - 0,30")
7,5 - 9,5 (0,30 - 0,37")
9,5 - 11,5 (0,37 - 0,45")
11,5 - 13,0 (0,45 - 0,51")
13,0 - 15,0 (0,51 - 0,59")
15,0 - 17,0 (0,59 - 0,67")
17,0 - 19,5 (0,67 - 0,77")
