Heavy industrial needs, with disassembly design, tool-free replacement. Equipped with a adjustable circular embossing sleeve, both aesthetically pleasing and easy to disassemble. It's for riveting sheet metal, manufacturing components, leather, plastic parts, and more.
Operation Instructions
Innovative patented structure, professionally multi-functional:

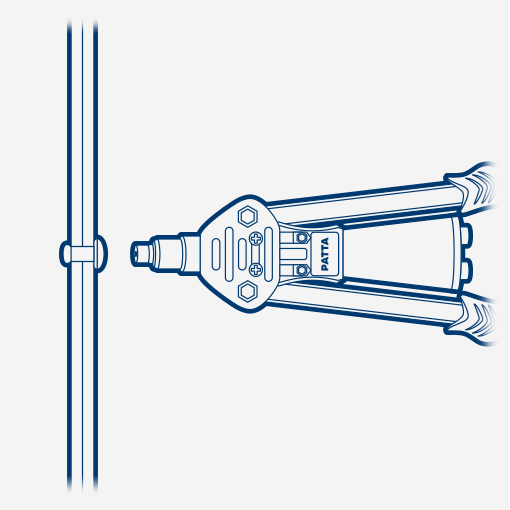

Insert the rivet into the rivet gun.
01

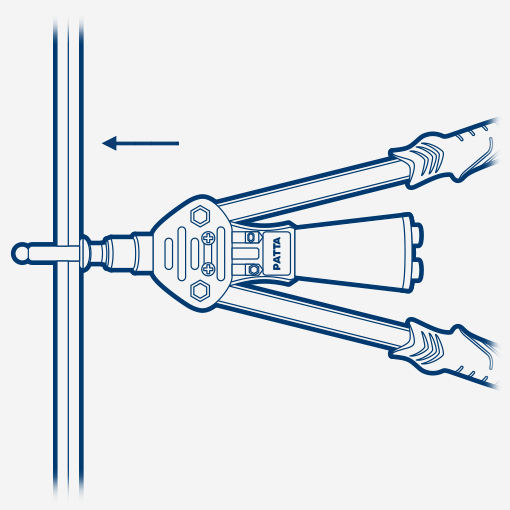

Use force to clamp the two handles together for assembly.
02

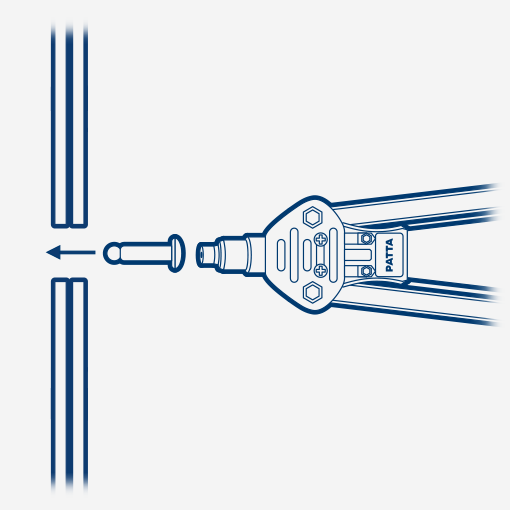

The central axis automatically retracts into the nail collection bottle.
03
Chipboard Screws
Screws
Uploaded 07/07/2023
|
PATTA Marketing
Specifically designed for lightweight wood panels, such as plastic composite boards. They have deeper threads, providing excellent locking capability. The tip design is also different from other screws, as it is more blunt to reduce the likelihood of the board splitting when drilling.
Technical Specifications
Additional seat specifications are equipped on the bottom cover of the nail collection bottle, taking up minimal space and allowing for convenient access.
HR-702 Supported Rivets
| 3.2 mm | 4.0 mm | 4.8 mm | 6.4 mm | |
|---|---|---|---|---|
| Aluminium / Steel | ● | ● | ● | ● |
| Steel | ● | ● | ● | |
| Stainless Steel / Steel | ● | ● | ● | |
| Stainless Steel | ● | ● | ● |
