Air Riveter

Air Riveter

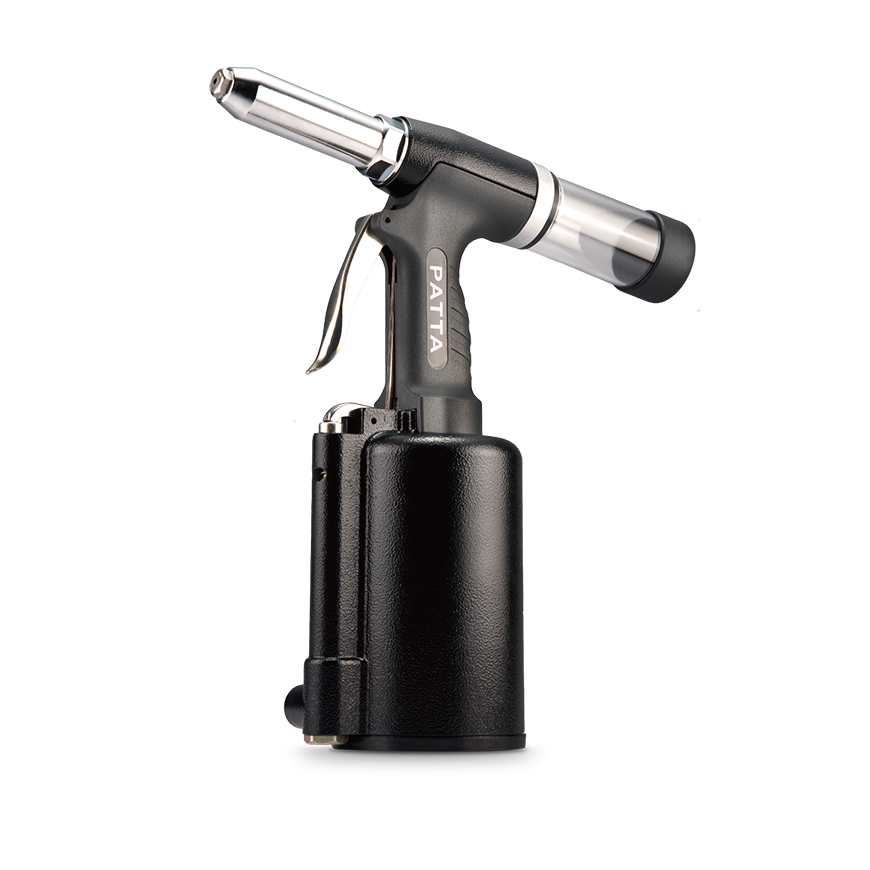

AR-600

Hydraulic Air Riveter



The PATTA AR-600 Hydraulic Air Riveter is designed to place blind rivets at high speed making it ideal for batch or flow-line assembly in a variety of applications throughout all industries.


Care Instructions



  • It is recommended to use Rivets manufactured by PATTA or rivets that comply with international standards.
  • After using for long periods, metal debris will build up inside the nose piece, so please clean regularly to avoid operational problems.
  • Please maintain and re-fuel oil fluid periodically.
  • the applicable air pressure for the air riveter is 5-7kg.









Video
AR-600 Air Riveter
02m 12s
Technical Specification

Air Riveter AR-600/800



Tool Specification

Attributes AR-600 AR-800
Stroke (max) 15.5mm 15.5mm
Pull Force (@5.5kgf) 8.0kn/820kgf 8.0kn/820kgf
Weight 1.55kg 2kg
Rivet Capacity 4.8mm 6.4mm
Air Pressure (min-max) 5-6kgf 5-6kgf
