A fastener used to connect structural components to a substrate, including bolts and sleeves. The sleeve expands and fills the drilled hole during installation, creating a sturdy anchor point without protruding, maintaining aesthetics. Common in construction and mechanical equipment.
Pre-drilling in the substrate is required before installation.

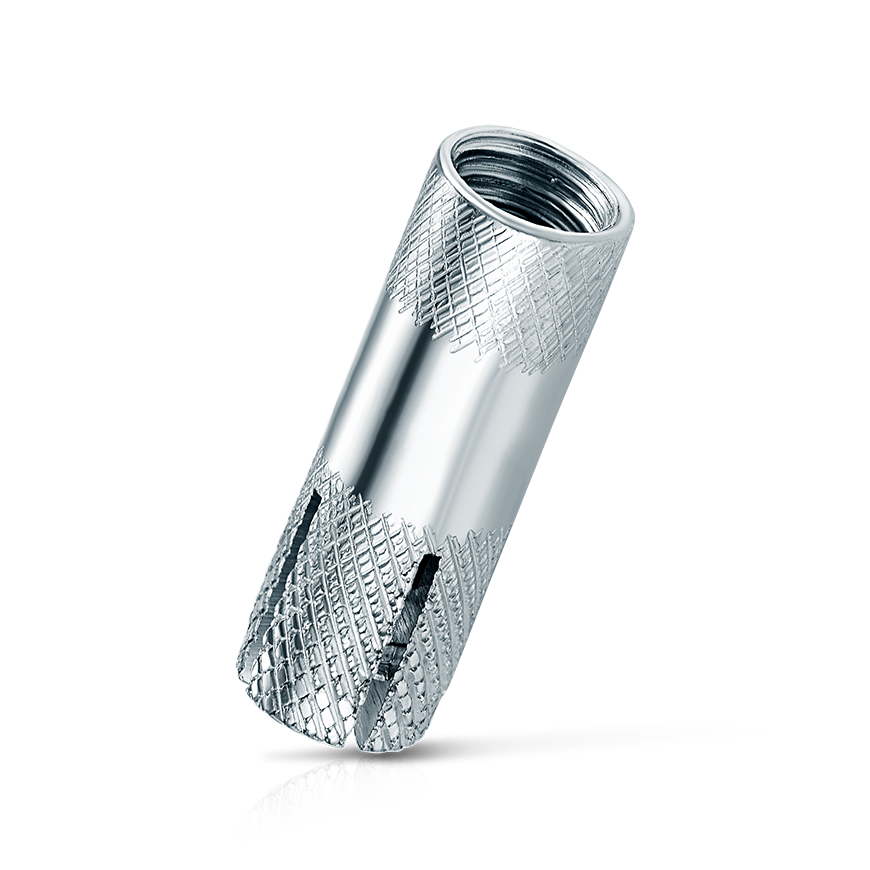

Drop-in Anchor
Fixings & Anchors
Uploaded 07/07/2023
|
PATTA Marketing
A fastener used to connect structural components to a substrate, including bolts and sleeves. The sleeve expands and fills the drilled hole during installation, creating a sturdy anchor point without protruding, maintaining aesthetics. Common in construction and mechanical equipment.
Technical Specifications
Available Sizes
| Size (D) | Length (L) | Thread depth |
|---|---|---|
| M6 | 25 mm | 10 mm |
| M8 | 30 mm | 14 mm |
| M10 | 40 mm | 19 mm |
| M12 | 50 mm | 22 mm |
| M16 | 65 mm | 30 mm |
| M20 | 80 mm | 38 mm |
| M24 | 110 mm | 55 mm |
