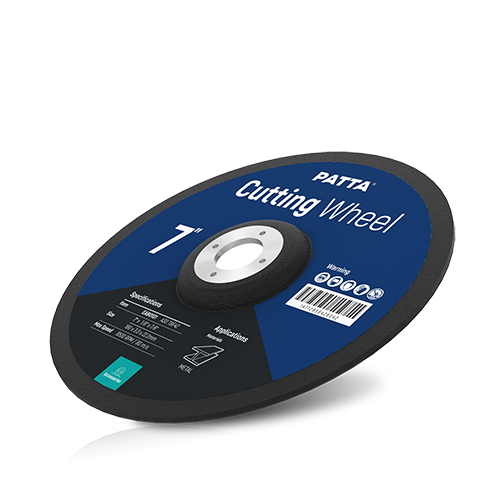

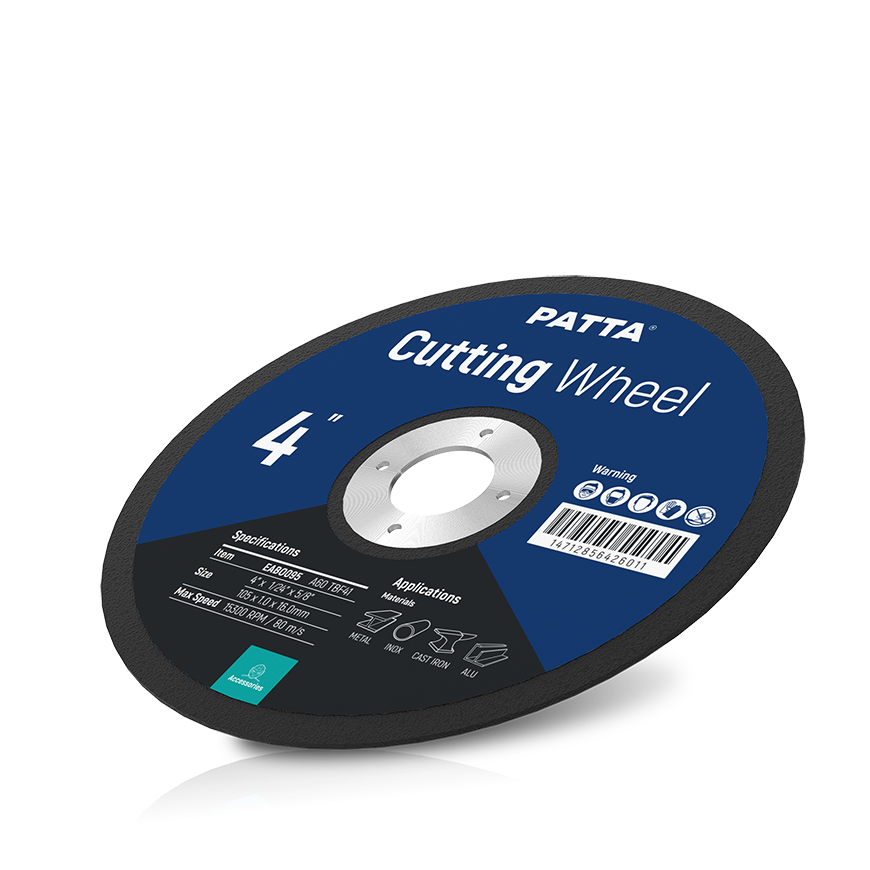

Flat Centre Abrasive Cutting Wheel

Flat Centre Abrasive Cutting Wheel

Flat

Product Features

Metal Cutting



Cutting wheel is composed of abrasive grain, and bonded together by phenolic resin and other filler. Reinforced glass fiber is added to strengthen the wheel structure. Cutting wheel must be used in right angle cutting.


Application

  • Angle iron cutting
  • Iron bar cutting
  • Work piece disassembly





Technical Specification

Flat Centre Abrasive Cutting Wheels














Sizes inch (mm)

Dia (D)                 Thickness (T)     Centre (C)                Metal      Inox        Aluminium Cast Iron
4" (105) 1/24" (1.0) 5/8" (16.0)
4" (105) 1/21" (1.2) 5/8" (16.0)
4.5" (115) 1/24" (1.0) 7/8" (22.0)
7" (180) 1/16" (1.0) 7/8" (22.0)
9" (230) 5/64" (2.0) 7/8" (22.0)
12" (305) 1/8" (3.2) 1" (25.4)
14" (355) 1/8" (3.2) 1" (25.4)
14" (355) 1/8" (3.2) 1" (25.4)
16" (400) 1/8" (3.2) 1" (25.4)
16" (400) 1/8" (3.2) 1-1/4" (32.0)
