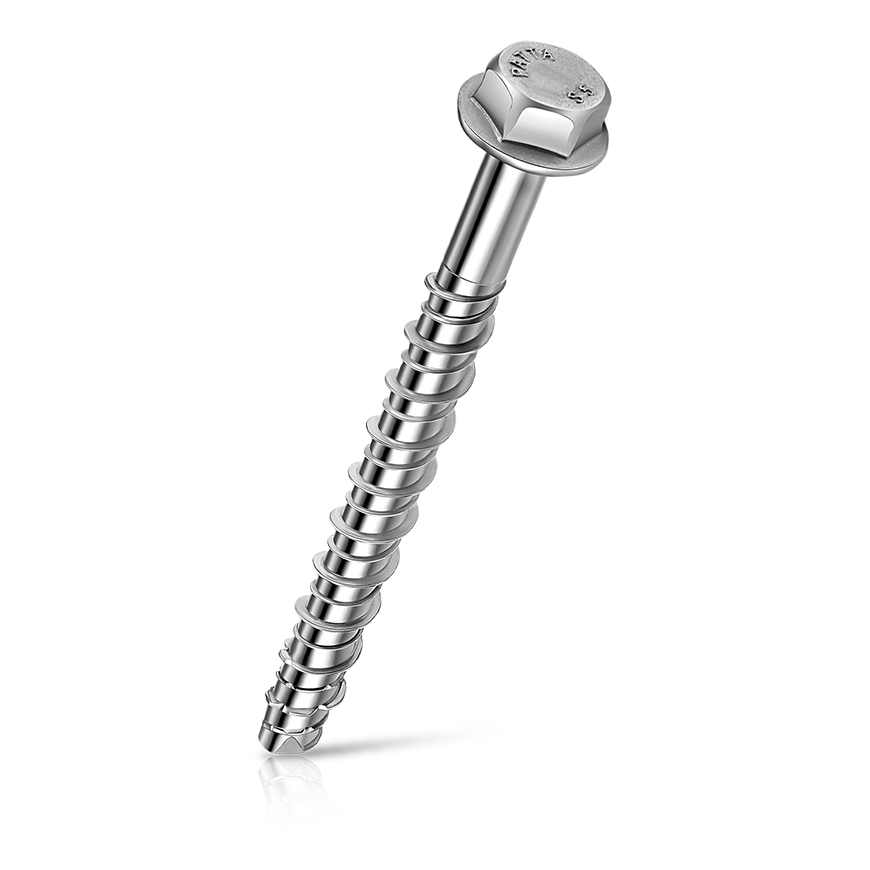

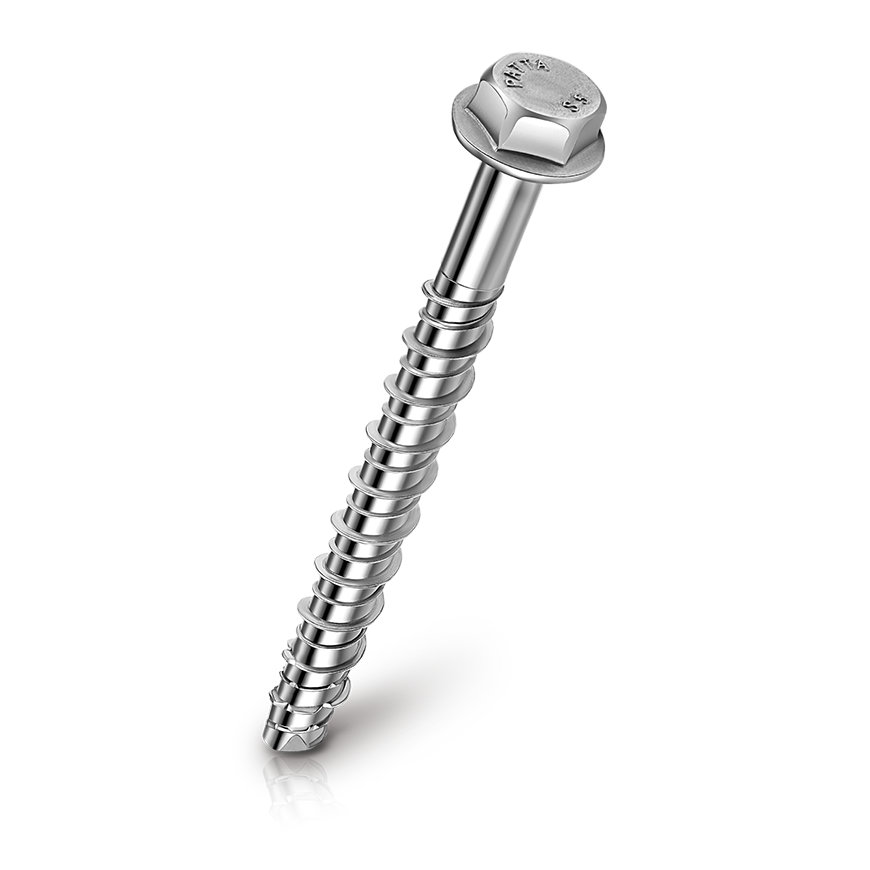

Concrete Screw Anchor

Concrete Screw Anchor

PACON

Superior Anti-corrosion Screw Anchor



The PATTA PACON Concrete Screw Anchor has a long life span and is made our of carbon steel which enhances the strength.


Features



  • Tri-lobe drilling tip with special saw tooth leads it into the concrete easily. ( For NSSC & Carbon Steel )
  • High hardness. Strong tensile strength.
  • No extension transferred to the base material. Avoid complex installation.
  • Applicable closer to the edge than traditional expansion anchors.
  • Easy maintenance – Disassemble + Removable.
  • Performs reliably in cracked and non-cracked concrete.
  • Salt spray test: 5,000 - 10,000 hrs
  • Quick installation







Installation Instructions

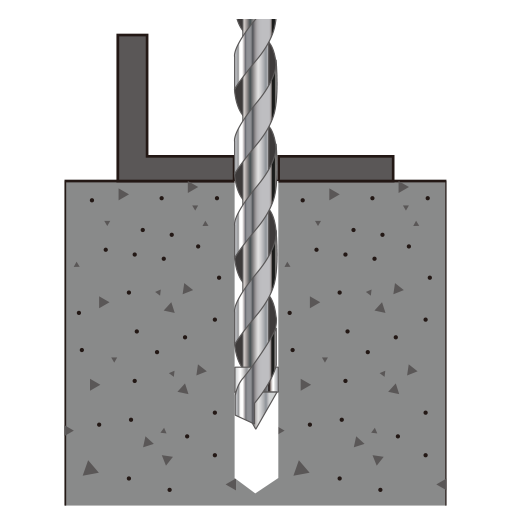

Drill and clean the hole

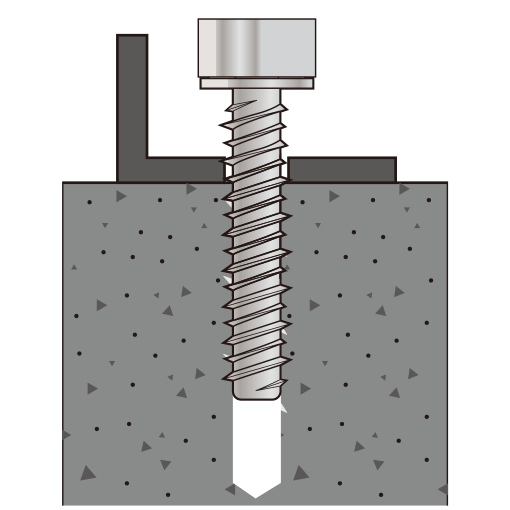

Insert the anchor with socket wrench or an impact driver

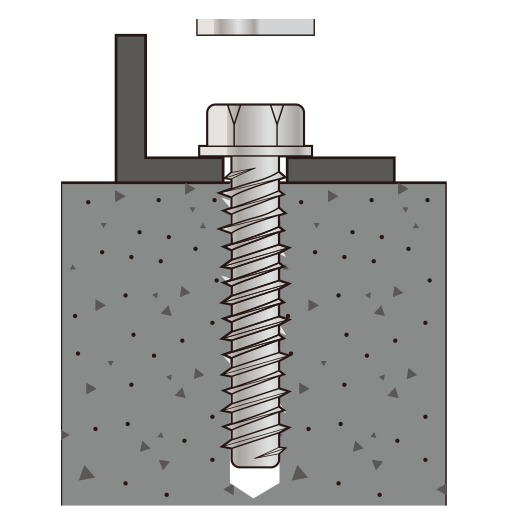

Tighten the anchor until the fixture is held firm











Video
PACON Concrete Screw Anchor
02m 14s

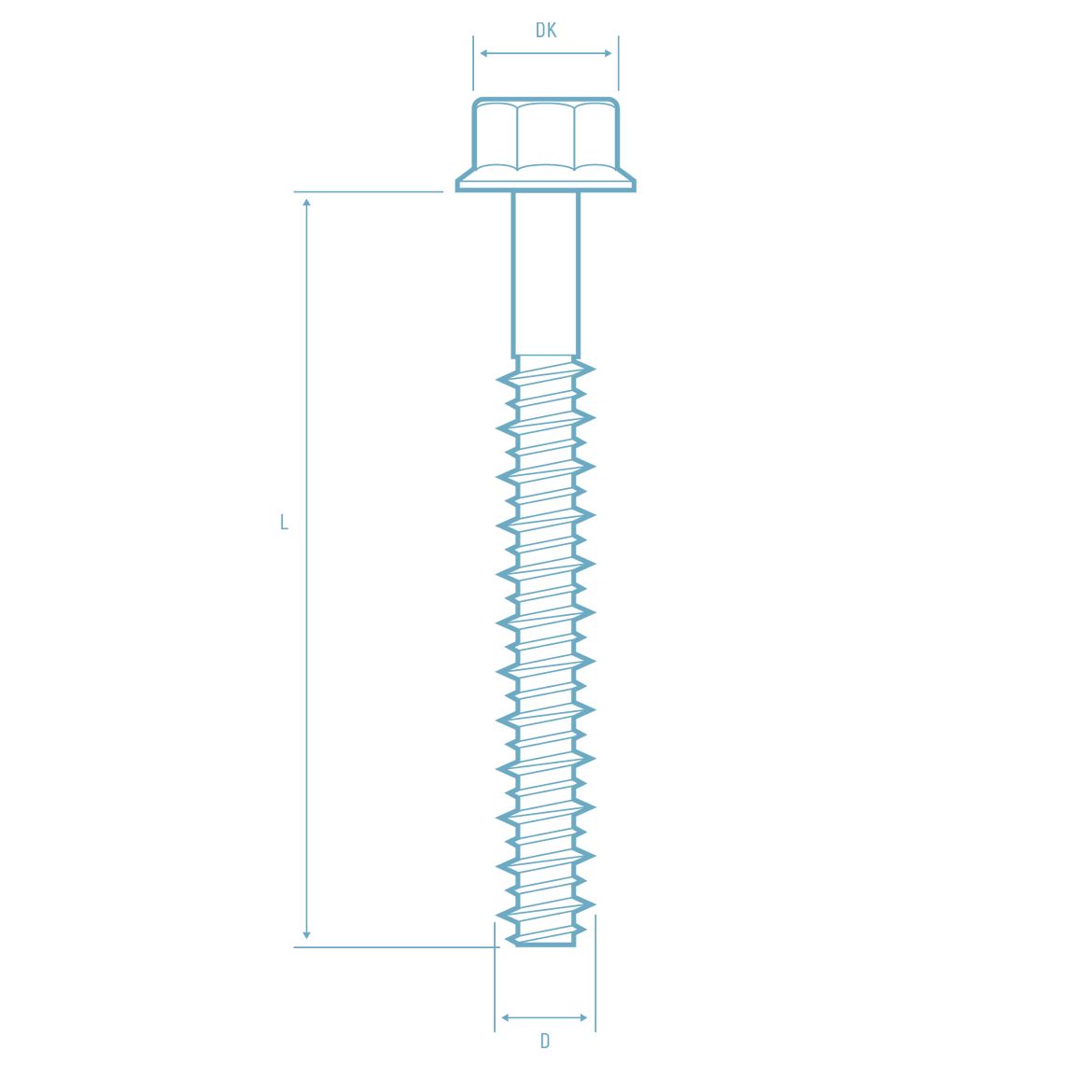

Technical Specification

PACON Concrete Screw Anchor








Available Sizes

Diameter (D) 50mm 75mm 100mm 150mm
M6
M8
M10
M12
Other sizes available on request
